2JZ Forged Piston Connecting Rod Kit For Toyota 2JZGTE Supra For Sale - New and Used

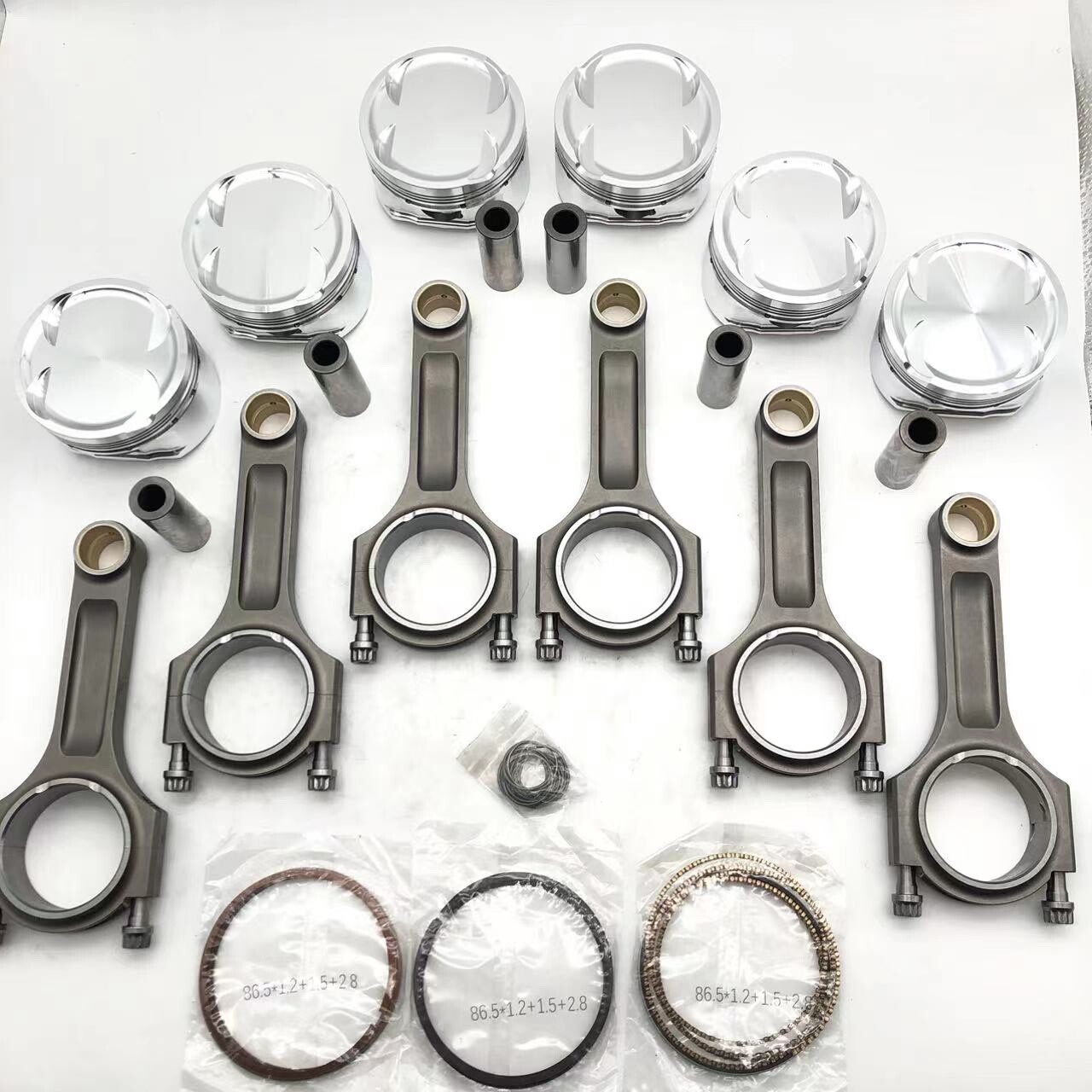

6 pcs Forged Pistons with pins and rings and 6 pcs I-beam forged Connecting Rod For TOYOTA SUPRA 2JZ GTE 142 mm center length with high quality Bolts.

Contains:

• Piston x 6

• Piston pin x 6

• Pin lock x 12

• Piston ring x 6

• Connecting rod x 6

• Bolt x 12

Piston Material:

4032 alloy, more silicon contained compare to 2618 alloy, lower noise, higher tensile strength, lower thermal expansion coefficient.

High precision, 0.001 mm tolerance for pin hole, 0.005 mm tolerance for diameter, clearance between cylinder to skirt is 0.04-0.06 mm.

Rod Material:

4340 alloy, stable and reliable quality which satisfying all customers from Europe and North America.

FITMENT:

Specifications

Part Number:

HQ-TYT-02/HCR114

Make:

TOYOTA

Engine(s):

2JZ GTE

Model(s):

Toyota Supra JAZ80 2JZ 2JZGE 2JZGTE

Toyota Mark II 2JZ 2JZGE 2JZGTE

Toyota Altezza AS300 2JZ 2JZGE 2JZGTE

Toyota Crown 2JZ 2JZGE 2JZGTE

Toyota Chaser 2JZ 2JZGE 2JZGTE

Toyota Cresta 2JZ 2JZGE 2JZGTE

Toyota Progres 2JZ 2JZGE 2JZGTE

Lexus IS300 GS300 SC300 2JZ 2JZGE 2JZGTE

Year(s):

Piston Material:

4032 Alloy

Rod Material:

4340 Alloy

Bore Size:

86mm/86.5mm/87mm

Compression Ratio:

9.0:1/10.0:1

Compression Height:

34mm

Pin Size:

22mm

Overall Height:

56mm

Ring Size:

1.0+1.2+2.8mm

Rod Length:

142mm

Gram Weight:

336g

Notes:

Dimensions:

C-C Length: 142mm

Big End Bore: 55mm

Small End Bore: 22mm

Big End Width: 26mm

Small End Width: 26mm

Bolt Size: 3/8''

Rings Made in Taiwan.

Bolts Made in Taiwan:

Come with high quality and the strength of extensionis more than 200,000 psi, while the ARP 2000 series is around 220,000 psi
