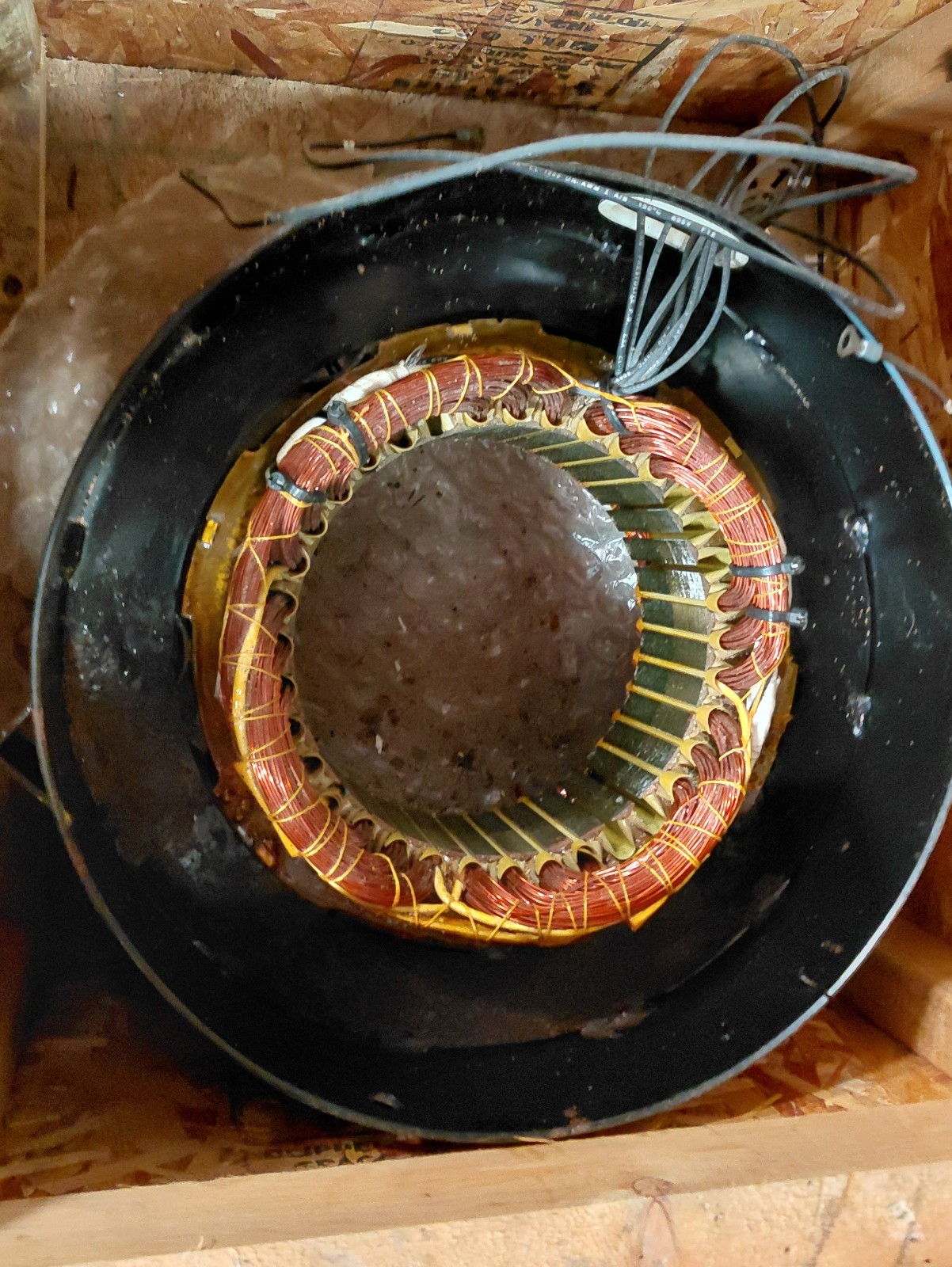

229838 Kohler Marine Generator Stator,New part, old stock.
Windings test good.Stator Tests:
Continuity between leads1 and 2 Yes3 and 4 Yes33 and 44 Yes33 and 55 YesB1 and B2 Yes1 and 3, 4, 33, 44, 55 No1 and 55, B1, B2 No4 and B1, B2 No55 and B1, B2 No
Megged all leads to ground. All good.
Cold Stator Resistance1-2, 3-4,33-44 0.3 ohms33-55 2.2 ohmsB1-B2 0.1 ohms
Case diameter ~ 14 3/4\"Case length ~ 10 1/8\"Pole Shoe ~ 3 1/8\"
95lbs in crate 17\"x20\"x21\"Global shipping available at customer expense.
