ITEM SPECIFICS
Brand: Harley-Davidson
Manufacturer Part Number: 69201504
Type: Console / Instrument Wiring Harness
Placement: Fuel Tank Console / Instrument Cluster
Genuine OEM: Yes
DESCRIPTION

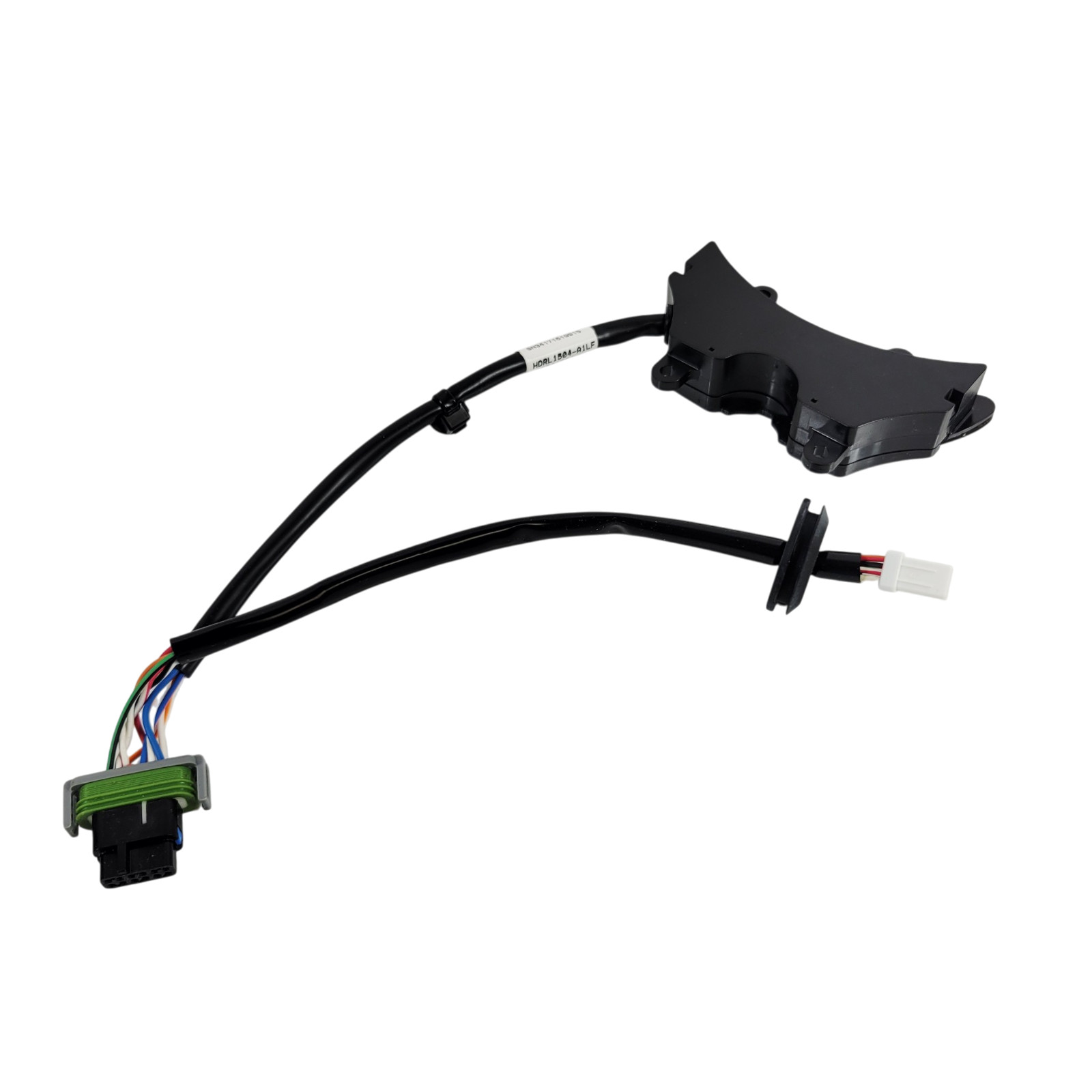

Genuine Harley-Davidson OEM console/instrument wiring harness, part number 69201504.
This harness connects components in the tank console/instrument area on applicable Harley-Davidson Softail models equipped with this console configuration.
FEATURES
- Genuine Harley-Davidson OEM component
- Factory console/instrument wiring harness
- Direct OEM replacement for applications originally equipped with part number 69201504
- Factory connectors
SPECIFICATIONS
Part Number: 69201504
OEM Description: Harness, Wire, Console, Instrument, Indicator
FITMENT
Verified in Harley-Davidson parts documentation/catalogs for 2018-2023 Softail applications using this instrument/console setup, including:
2018-2021
- Heritage Classic FLHC
- Heritage Classic 114 FLHCS
- Deluxe FLDE
- Slim FLSL
For later model years, the same harness continues to appear in the FLHCS instrument configuration. Harley\'s 2022 and 2023 catalogs specifically show 69201504 in the instrument assembly.
