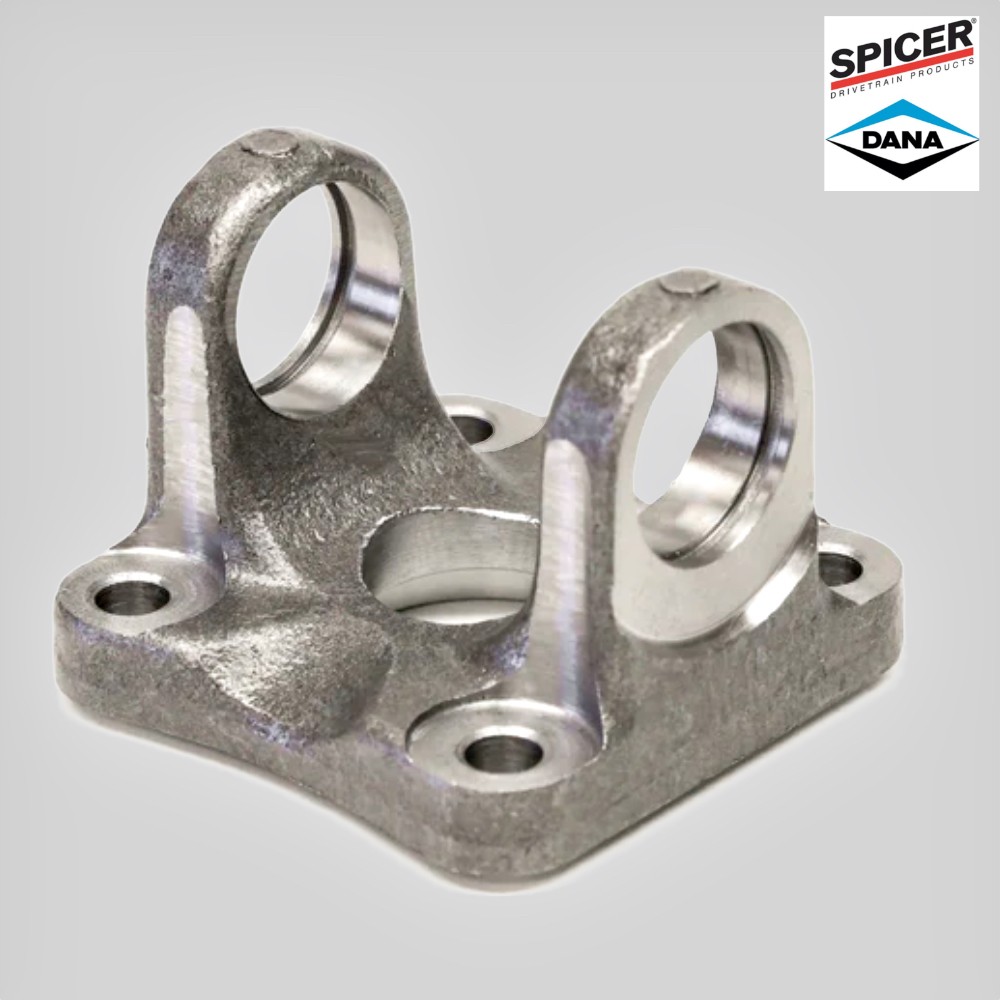

2-2-01902 / 5001902 Spicer Driveshaft Flange Yoke 1310 Toyota Series 3102-185:
$42.17
Made in USAAlt Ref: 5001902, 3102-185, N2-2-780
Takes all common 1310 U-Joints eg. 5-1310 / 5-153XBrand Spicer
Series 1310
Flange Or Swing Dia. In. (A) 4.330
Bolt Circle Dia. In. (B) 3.674
Bolt Hole Dia. In (B) .446 - DRILLED
Number Of Bolt Holes 4
Pilot Dia. M=Male F=Female (C) 1.811 - MALE
Flange Face To C/L In. (G) 1.634
Material Steel
Outside Yoke Dimension In.(E) 3.469
Yoke Bearing Dimension In. (D) 1.062
Design Square
VMRS 024002016
