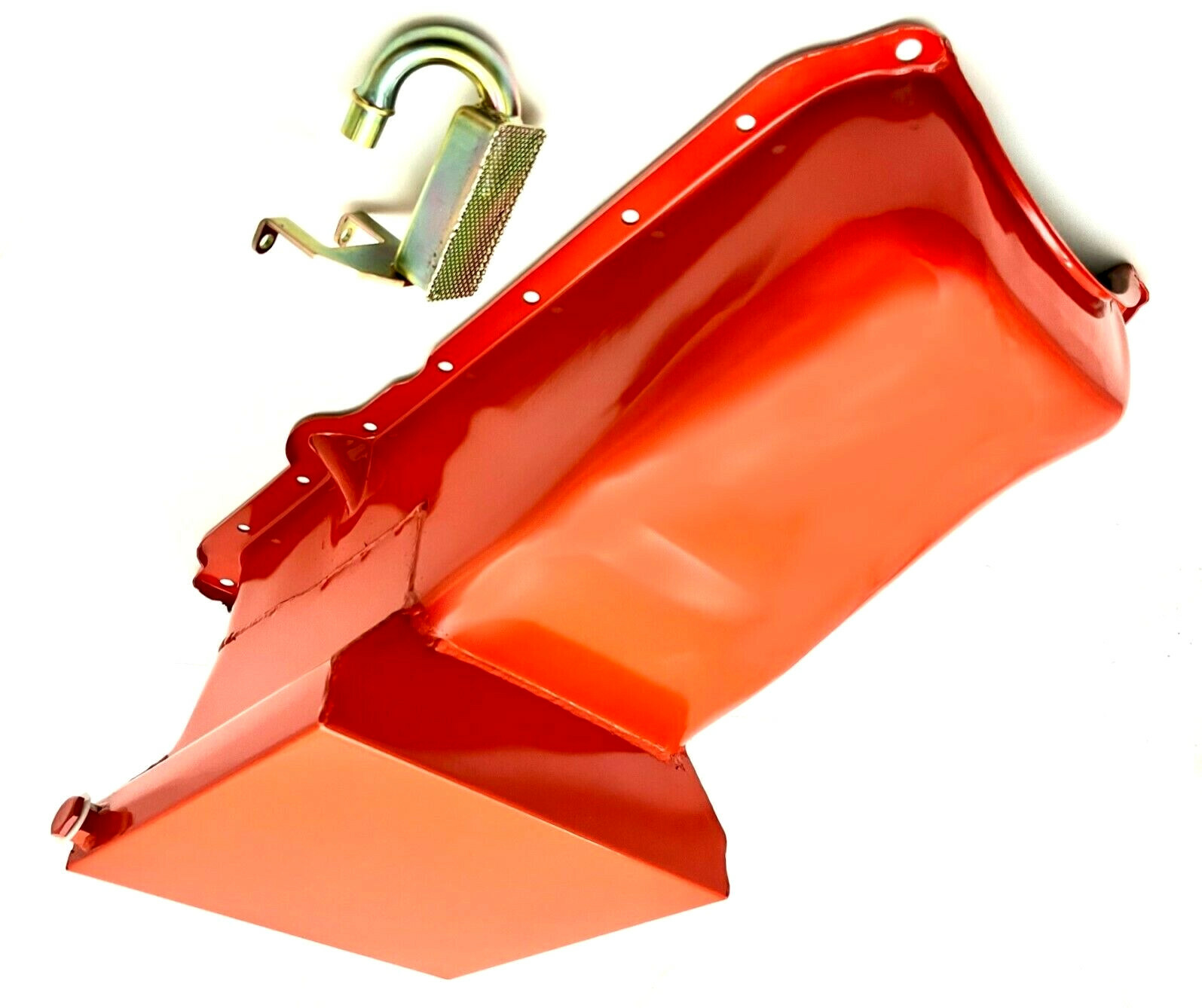

1986-02 SB Chevy 305 350 V8 Vortec Oil Pan Drag Race 1 Piece Rear Main Seal Org:
$139.95
1986-up SB Chevy Drag Race Oil Pan 1 Piece Rear Main Seal - Orange
FEATURES:
- Fits: 1986-02 Small Block Chevrolet 305 5.0L & 350 5.7L V8 - 1 Piece Rear Main Seal Blocks.
- Capacity: 7 Quarts
- Sump Depth: 8 1/4\"
- Sump Style: Kicked Out
- Construction Material: Steel
- Finish: Orange Painted
- Sump Location: Rear
- Baffled: Yes
- Dipstick Location: Passenger Side
- Pick Up Tube: High Volume Oil Pump (M55HV)
- Includes: Pick Up Tube & Drain Plug.
*Notes:
- Pick up tube will only work with High Volume oil pumps, will NOT work with Standard Oil Pumps (see our other listings for HV Pump tube).
- Will not fit vehicles with the steering behind cross member, check for clearance before installing.
