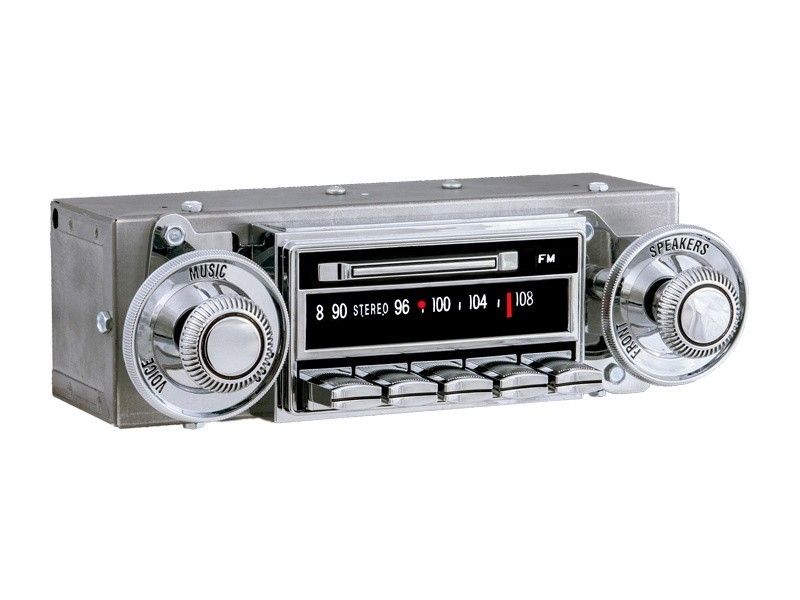

1970-72 Oldsmobile AM/FM/Bluetooth Reproduction Radio For Sale - New and Used

1970-72 Oldsmobile AM/FM/Bluetooth®Radio directly from the USA manufacturer!

Rare AM/FM factory option!

Our 1970-72 Oldsmobile radio is designed to look, fit and feel just like the original. Behind the dash, the radio case is only 3.75” deep, allowing room for air conditioning and other options. The AM/FM ‘roll over’ type dial looks and works exactly like the original and the AM/FM band is selected by using the slide bar.

This radio does not have a digital display.

When the radio is powered on, the dial pointer, knobs and pushbuttons all move and work like the original. Every radio comes equipped with Bluetooth® for wireless audio streaming and hands-free phone control. Other features include a 3.5mm auxiliary port to plug in any compatible device, such as an MP3 player, a CD player, or an updated cassette/8 track player, as well as another input jack specifically designed to work with ourFC-1 foot control switch.

Each radio comes with a 12 ½” 12 wire harness with male and female connections for easy connection/disconnection. This harness includes power, ground, a 12-volt output wire (for options like a power antenna or amplifier remote connection), 4 speaker connections and dial lights. The radio also has 4 channel RCA outputs for an external amplifier and a subwoofer RCA output. Please see the specs below for more information.

Specifications:

• Fits the original 1970-72 Oldsmobile F-85, Cutlass, 442 dashes. No modifications are necessary!
• Radio case dimensions: 2.5” H,7.75” W, 3.75” D (behind the dash)
• High quality, die-cast, chrome plated nose piece
• Zinc diecast, chrome-plated knobs and backrings are included and match the original.
• Chrome-plated pushbuttons match the originals.
• AM/FM radio with programmable options for North American or European channel spacing.
• Digitally tuned AM/FM Stereo receiver provides stable, high-quality reception while keeping the original analog display.
• AM or FM band selected with a slide bar like the original
• Sensitivity (FM S/N 30dB) typical 5 dBµ, (AM S/N 20dB) typical 29 dBµ.
• Bluetooth® 5.0 with built-in microphone for HFP
• HFP, HSP, A2DP, and AVRCP profiles are supported.
• Bluetooth® mode offers a programmable audio equalizer while streaming music.
• 3.5mm auxiliary input jack for any compatible device such as an MP3 player, a CD player, or an updated cassette/8 track player (radios do not work with original, unaltered 8 track players)
• Radio is compatible with XM radio receivers using the 3.5mm input jack. (XM is not included with the radio purchase)
• Additional input jack specifically for use with our reproduction FC-1 foot control switch option is on the back of the radio.
• Radio output: 180 Watts RMS (45W x 4 speaker channels at 4Ω, 14.4 V, 1 kHz)
• Do not use original, grounded speakers! Radio has a protective circuit that shuts down if a speaker wire is grounded or has faults.
• Speaker recommendations: 40+ watts RMS rating, 4 Ohms, SPL 88+
• We recommended using our SDC410 4×10 Dual Voice Coil speaker that we manufacture specifically for this radio in the center dash opening.
• Four low-level outputs + 1 subwoofer RCA output located on the back of the radio for use with an external amplifier
• Radio operates on 11.5-16 Volts DC, negative ground only!
• Controls use the same size and thread shafts as the original. Mounting hardware is included.
• Control operations include on/off, volume, tone, tuning, balance and a hidden fader function, all from original-looking and feeling analog controls.
• Pushbuttons can save 5 FM preset stations and 5 AM preset stations.
• Pushbuttons also work with Bluetooth® functions such as play/pause, answer/hold and equalizer. See ourradio instructionsfor more information.
• Memory retention (presets and other user settings) with power disconnected, no need for constant power!
• LED dial lights are warm white to match the original
• Standard (Motorola) antenna jack located on the back of the radio
• 9” mounting backstrap included

Hand-built in our Florida facility. All radios are made and designed in the USA. Your purchase helps support a small family-owned business. Thank you!

---
