This is a new Adjustable Rear 4-Link Kit WITHOUT Coilover Shocks or Springs designed specifically for 1967 68 69 Chevy Camaro SS Z28.
Take total control of your 1967-69 Chevy Camaro SS Z28 with this 1967-69 year specific Chevy Camaro SS Z28 Adjustable Rear 4-Link Kit.
This quality constructed rear 4-link kitreplaces OEM leaf springs, lowers the stance (adjustable 1-3"), greatly improves the handling, traction and ride quality; andoffers total adjustabilitymaking it the ideal Camaro 4-link kit for the street or track.
Adjustable link bars allow wheelbase and preload adjustments.Adjustable link bar mounting points give many options for anti-squat settings. Frame brackets accommodate standard or mini tubs

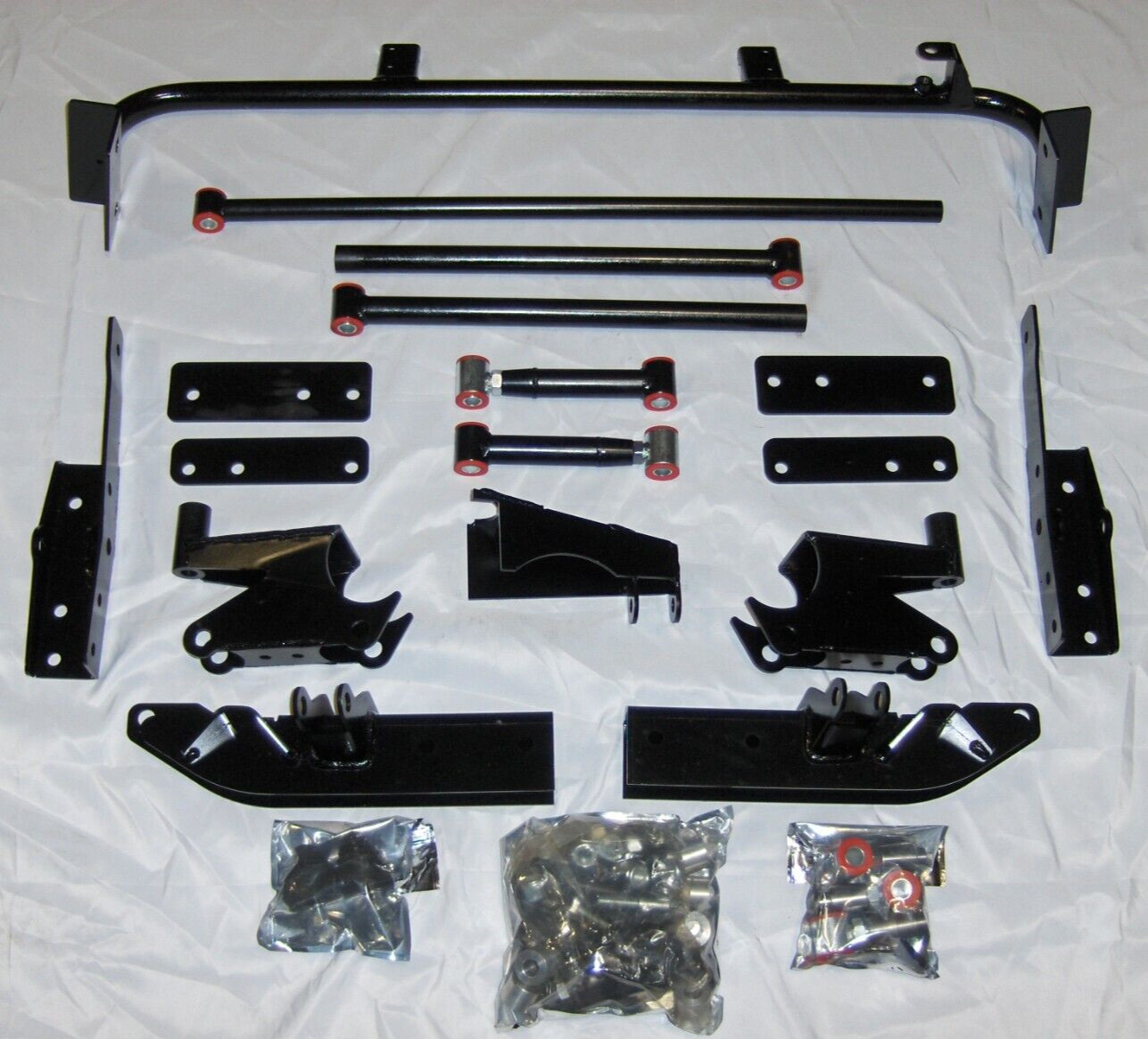

Each 4-Link kit includes custom bolt on brackets, oversized stainless steel adjusters, full upper coilover crossmember, 1" OD tubing over-sized 4-link bars, axle brackets, bolt on chassis bracket & mounting hardware.
Style: Rear 4-Link
Fits: 1967-1969 Chevy Camaro SS Z28
Adjustable: Yes
Stance: Stock Height Adjustable
Material: Steel
Finish: Black Paint
Includes :
- Custom Bolt On Brackets
- Oversized Stainless Steel Adjusters
- Full Upper Coilover Crossmember
- 1" OD Tubing Oversized 4-Link Bars
- Axle Brackets & Bolt On Chassis Bracket
- Mounting Hardware
Recommended Coil-Over Shock Specifications:
- Spring Rating - 180-230lbs
- Fully Extended - 16.5
- Compressed - 11.5
- Travel -4.5
Note: COIL OVER SHOCKS AND SPRINGS NOT INCLUDED. INSTALLATION INSTRUCTIONS ALSO NOT INCLUDED.
