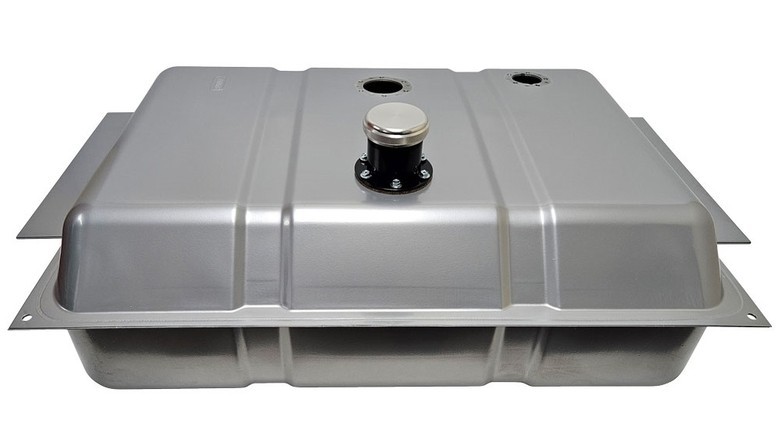

1967-1972 Ford F100 EFI Fuel Tank KitTanks Inc. F6772-T Tank with 2\" tall threaded filler neck with Aluminum CapEFI internal baffling with extra large fuel tray to prevent fuel pump starvation18 Gallon capacity32 1/4\" x 20 1/2\" x 9 3/4\" including mounting flange28\" x 20 1/2\" x 9 3/4\" measured without mounting flangeDie stamped galvanized steel then Powder Coated Silver
This tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware not included.If installing in a stock frame the bottom leg of the rear cross member will need to be notched to fitIncludes GPA-4 Fuel Pump255 Liters per hour fuel pump can support up to 600 plus horsepowerMade in theUSA
Heavy 10 gauge no-warp mounting plate
1/4\" NPT Supply and Return Line
Barbed Vent Fitting
Oven brazed fittings
In-tank wire harness
Genuine Walbro Fuel Pumps
Includes TAN-ORG Fuel Sending Unit73-10 Ohm range
Free Shipping within the 48 state!
Komponents Korner has served car enthusiast and builders with quality parts for over 50 years! If you have any questions about this part or do not see the parts you need in our store please contact us.
