1965-82 Corvette Deluxe Brake Caliper O-Ring Kit 4Wheel
leaky brake calipers to the trouble free O-Ring Piston design
Everything you need to completely Rebuild and Upgrade your leaky brake calipers to the trouble free O-Ring Piston design
Our Dr. Vette Corvette Brake Caliper Conversion Kits allow you to not only completely rebuild, but upgrade your existing brake calipers quickly, easily and affordably. Designed to save you down time, the cost of new calipers, core costs and the outrageous shipping costs of getting them to your door. With all the savings and upgrades these kits are truly a no brainer. Upgrade today to the trouble free O-ring Piston design that also gives you double the sealing power, virtually eliminating the common problematic leaking caliper syndrome.
Why go O-Ring? Lip seal design seals are used on 1965 -1982 Corvette calipers. Lip seals have inherent problems. GM quit using lip seal calipers because of problems in 1982. When they sit for a period of time they leak brake fluid. When they are used on a Corvette with warped or out of spec rotors and or spindles, loose bearings or a Corvette that is driven hard; they can actually suck air into the caliper fluid area causing a loss of brake pedal. This is called reverse air oscillation.
O-Ring seals virtually eliminate all of these lip seal problems. If GM doesn\'t use lip seal calipers anymore why are you?
Quick, Easy & Affordable
No More Core Charges
Use Your Existing Calipers*
Save Down Time
Virtually Eliminate Leaky Calipers
Double Your Sealing Power
Upgrade & Rebuild at the Same Time

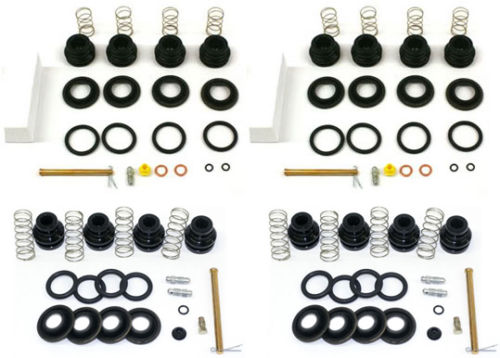

Kit Includes all New:
16 O-Ring Pistons
16 Piston O-Rings
16 Pistons Dust Boots
16 Stainless Steel Springs
6 Caliper Half O-Rings
2 Copper Brake Hose Washers
6 Bleeder Screws 2 Bleeder Plugs 4 Pad Pins with Cotter Pins
4 Inlet Plugs
4 Plastic Caliper Bags
4 Styrofoam Placement Holding Blocks
Using DOT 5 Brake Fluid Will Void Warranty
9 out of 10 of all Corvette brake calipers are already sleeved and ready for our conversion kits?This makes rebuilding and converting to the desired O-Ring piston design easy, quick and affordable. Simply disassemble your old existing calipers*, clean, paint and install one of our Conversion kits and you\'re all done! Please check to make sure your your calipers are stainless steel sleeved before ordering.
Note: This kit was engineered for \"Second Design\" Corvette Brake Calipers which were on all Corvettes from 1967-82. 1965 and 1966 Corvettes had \"1st Design\" Calipers and are identifiable by the short 3/8\" Diameter center post coming from the bottom of the Aluminum Caliper pistons on both Front and Rear Brake Calipers. The casting also has 2 pieces shaped like this; ( ) coming up from the bottom of each bore and act as a guide for the post on the piston. 99.9% of the time 1st Design calipers are modified to 2nd Design when the caliper are rebuilt and or Sleeved. Check your castings before you make your order!
