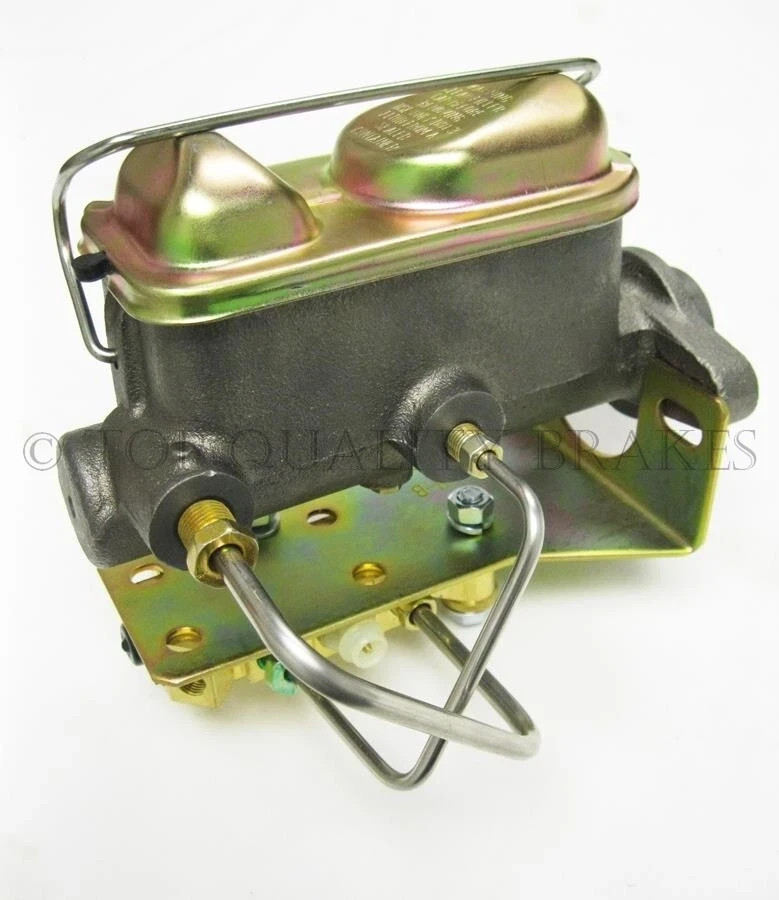

This is a New Master Cylinder and Proportioning Valve Kit with Bottom Mount for 1964-69 Ford Mustang with Disc Brakes in front and Drum Brakes in rear. For use with Ford power booster or manual brakes.
Themaster cylinder in this kit is a new factory style 1" bore master cylinder and supplied proportioning valve is equipped to work with disc/drum brake applications. NOT for use with aftermarket booster with GM master mounting area.
Features:
- 1" Bore 2 Port Master Cylinder with Metering Valve
- Cast Iron Master Cylinder
- 1" Bore, 9/16" and 1/2" ports onleft Side
- Disc/Drum applications
- Brass Proportioning / Combination Valve with Bracket
- Bottom Mount Bracket good for tight spaces
Includes:
- Cast Iron Factory Style Master Cylinder (1" Bore ,9/16-18" & 1/2-20" Ports on left Side)
- BrassDisc DrumProportioning Valve Kit (with Bottom Mount Bracket)
- Bleeder Kit
The proportioning valve has a zinc finish. This valve is also called a combination valve, as it performs all of the necessary valving functions with a disc brake conversion. These functions include the following:
As more force is applied to the brakes and the car begins to lean forward, less braking force is needed in the rear. This valve decreases the pressure to the rear, preventing lock up.
Metering is used in the front disk brake portion in the disc/drum system to delay application of the front discs allowing the slower reacting drum brakes to catch up. This provides rear stability on wet surfaces and helps prevent front pad wear. There is no metering function with the disc/disc setup.
Drum Brakes require residual pressure of 10 lbs. to be held in the line. This pressure keeps the brake shoes close to the drums giving you a more firm pedal feel. The disc/disc setup does not require this pressure.
This valve has a system failure switch that will alert you when half of your braking system is not working properly.
Please Note: Professional Installation is Highly Recommended (No Instructions Included)
