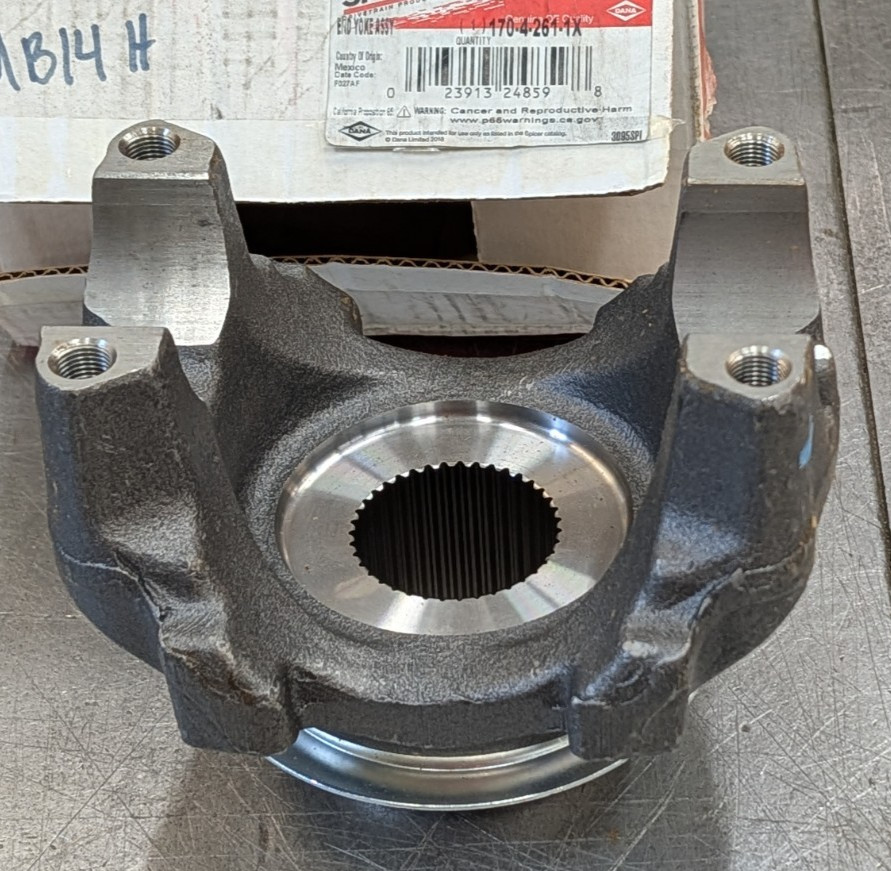

170-4-261-1X Spicer Genuine Differential Yoke SPL170 Series 39 Spline:
$209.00
SPL170 Series Joint measures approx. 6 1/2 (6.456) between the tabs.The Round cup that that sits in it is2.024inches.It is easy to tell if you have a SPL 170 joint look at the end of the cup it usually says 170 right on it.5.156" C/L To End Hub. (if you put the joint face on your desk and measured the height.)
Specs
- End Yoke Half Round
- Spline Count: 39
- Hub Diameter R: 3.000
- C/L To End Hub S: 5.156
- Outside Yoke Dimension (In) E: 6.456
- Yoke Bearing Dimension (In) D: 2.166
- Major Diameter: 2.024
- Length Thru Hole Q: 2.281
- C-Bore Depth: 0.250
