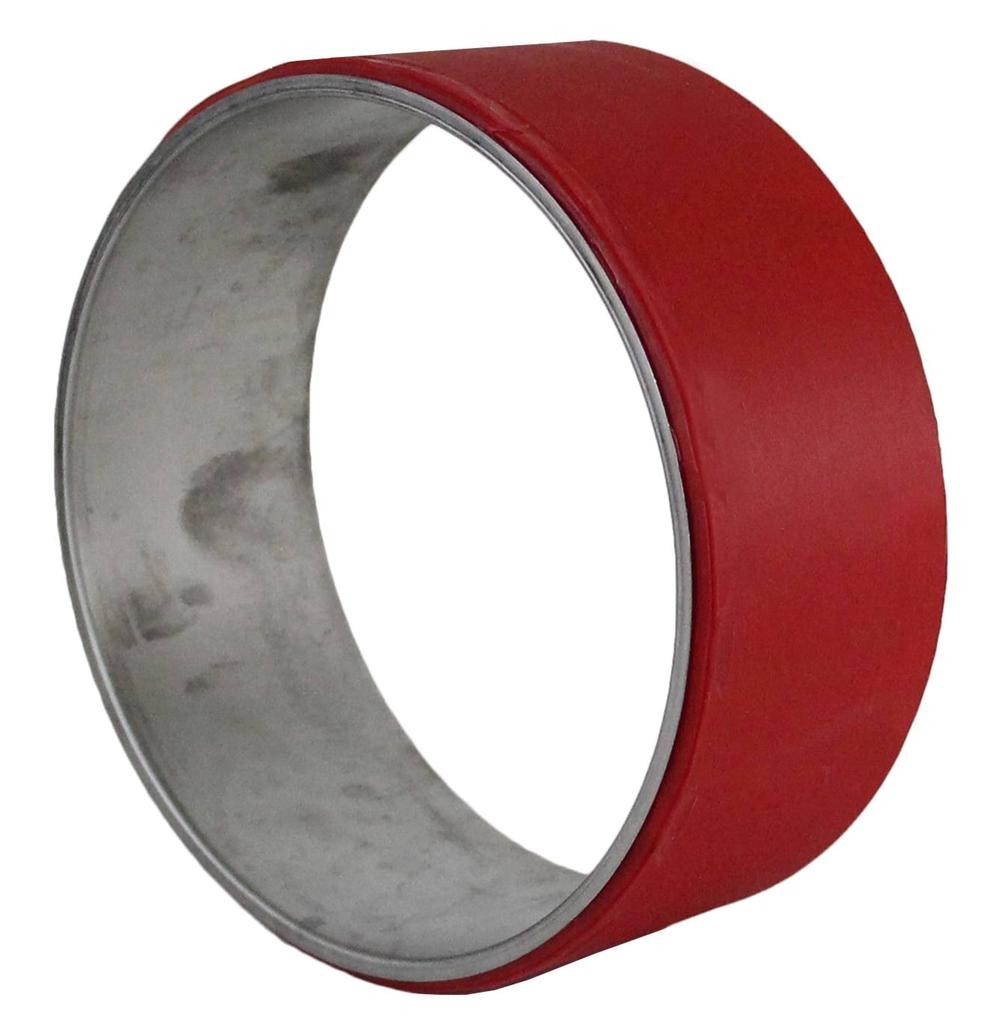

155mm Stainless Steel Wear Ring 2001-2005 Sea-Doo GTI RX XP GTX 951 1503
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Sea-Doo: 271000653SPECIFICATIONS:
• Type: Jet Pump Wear Ring — Stainless Steel Inner Lining
• Inner Diameter: 155.3mm (155mm Pump Housing)
• Material: Stainless Steel Inner Lining (Upgrade from OEM Plastic)
• Function: Maintains Tight Impeller Clearance for Maximum Thrust
• Fits: 155mm Jet Pump Housing
• Engine Platforms: 720/800cc Rotax 2-Stroke + 951cc Rotax 2-Stroke + 1503cc 4-Tec
• Year Range: 1998-2007
• Weight: 2 lbs
• Installation Tip: Refrigerate 1 hour before press-fit installation
• Source: Aftermarket
• Condition: NewWEAR RING VARIANTS:
• 003-503 = Plastic (Standard OEM Replacement)
• 003-503-01 = Delrin/POM (Upgraded Plastic)
• 003-503S = Stainless Steel (This Part — Premium Upgrade)SEA-DOO APPLICATIONS:
• 720cc: GTI/GTI LE/GTS (2001-2005)
• 800cc: 3D RFI/GTI LE RFI/GTI RFI/GTX (2000-2005)
• 951cc: GSX LTD/GTX/GTX DI/LRV/RX/RX DI/XP/XP DI/3D DI (1998-2007)
• 4-Tec 1503: GTX 4-Tec/GTX 4-Tec Wake (2002-2003)
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
