12x Fits Ford Explorer 2011-2017 Front Control Arm Tie Rod End Sway Bar End Link For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

12x Fits Ford Explorer 2011-2017 Front Control Arm Tie Rod End Sway Bar End Link:
$129.75

Welcome to our store!

To avoid you buying the wrong parts, DO CHECK the compatible chart above before placing order.

Choose a vehicle from the "My Garage" list. Or
Enter your vehicle's details withYear / Make / Model / Trim / Engine.Or

Ford Explorer
2013-2015 Ford Police Interceptor Utility

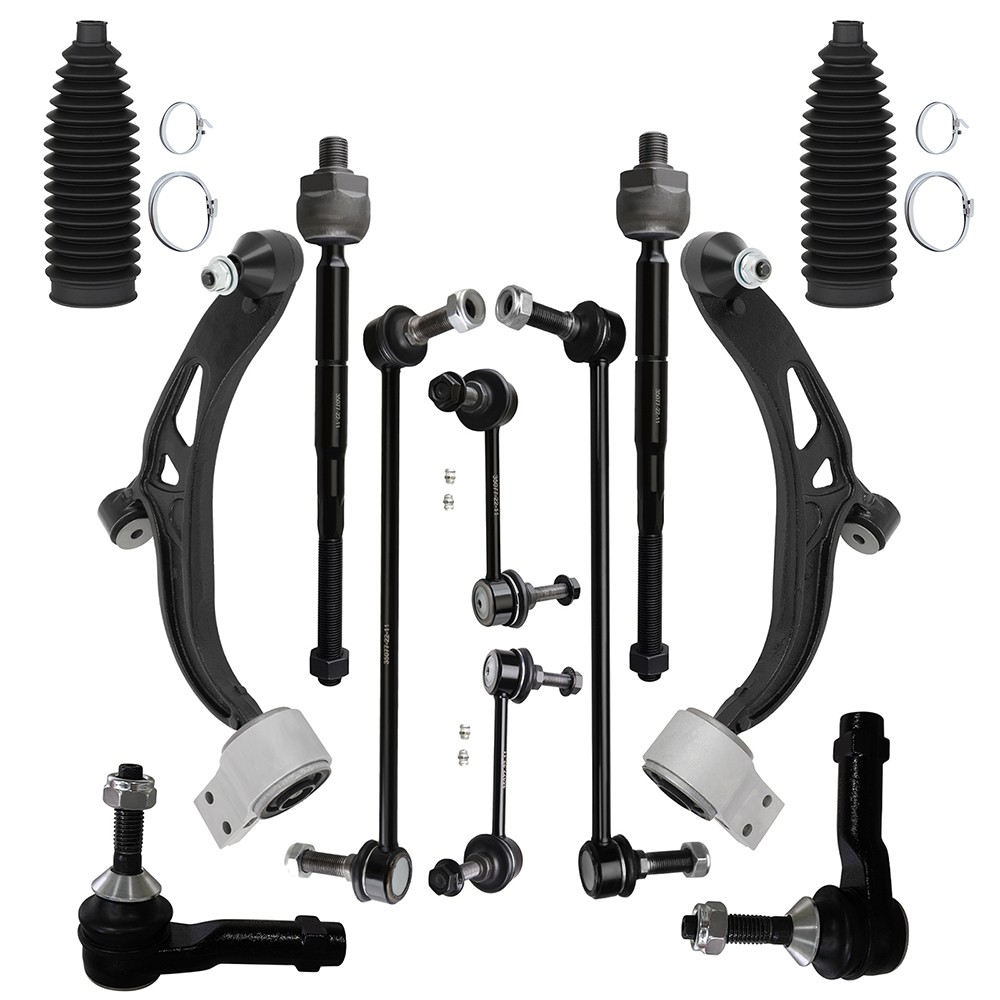

Package:

1x Front Lower Control Arm and Ball Joint - Passenger Side -k622215
1x Front Lower Control Arm and Ball Joint Assembly - Driver Side -k622216
2x Outer Tie Rod End -es800952
2x Front Inner Tie Rod End -ev800893
1x Rear Sway Bar End Link - Driver Side -k750393
1x Rear Sway Bar End Link - Passenger Side -k750394
1x Front Sway Bar End Link - Passenger Side -k750616
1x Front Sway Bar End Link - Driver Side -k750617
2x Rack and Pinion Bellow

Control Arm Installation Instructions：

Pre-Installation Preparation

Tool List: Torque wrench, socket set, ball joint separator, jack, safety stands, rust inhibitor, thread locker (optional)
Vehicle Condition: Park on a level surface, engage the parking brake and secure the wheels, disconnect the negative battery terminal (power off required for electronic system protection on some models)
Part Inspection: Verify the new control arm model matches, check for no damage to ball joints and bushings, ensure all accompanying bolts and nuts are complete and free of rust

Old Part Removal

Lift the vehicle with a jack and secure it with safety stands (never rely solely on the jack)
Remove the wheel and disconnect the control arm mounting bolts from the steering knuckle and frame/subframe
Separate the ball joint from the steering knuckle using a ball joint separator and remove the old control arm

New Part Installation Steps

Clean the mounting surfaces (frame and steering knuckle connection points), remove rust and debris, and apply a thin layer of rust inhibitor
Position the new control arm in place and hand-tighten the frame/subframe mounting bolts (do not fully torque yet)
Install the ball joint to the steering knuckle, hand-tighten the ball joint nut to ensure full seating of the ball joint
Install remaining mounting bolts per vehicle specifications, hand-tighten all bolts initially (to prevent misalignment)
Lower the jack to place the wheel on the ground, ensuring the vehicle is in a level loaded state
Torque all bolts sequentially to manufacturer specifications using a torque wrench (Reference Values: Ball joint nut 45-65N·m, frame-end bolts 80-120N·m; always follow vehicle manual for exact values)

Check control arm clearance: Ball joint should rotate smoothly, bushings must not be twisted, and no interference should Inspection & Debugging

Install the wheel and torque the wheel hub bolts to specifications
Reconnect the negative battery terminal, start the vehicle, and check for smooth steering and no abnormal noises
Four-wheel alignment is recommended (calibrate wheel toe and camber angles after control arm replacement to prevent uneven tire wear)

Safety Precautions

Use safety stands throughout the process; never perform under-vehicle work without proper support
Torque all bolts to specified values; over-tightening or under-tightening is prohibited
Conduct a test drive after installation to confirm no pulling or abnormal noises; stop immediately to inspect if issues arise

Notice:
Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation!

Item SpecificsUPC Does not applyBrand VaultProManufacturer Part Number 13593590Manufacturer Warranty 1 YearPlacement on Vehicle Front,Lower,Outer,Inner,RearUniversal Fitment NoManufacturer Warranty 1 YearFeatures GreasableItems Included Mounting HardwarePerformance Part NoInterchange Part Number k622215,k622216,es800952,ev800893OE/OEM Part Number control arm ball Part Number anti sway bar linkage,stabilizer linkage barType Control Arm & Ball Joint AssemblyCotter Pin Hole YesMaterial Alloy SteelMounting Style Bolt-OnFinish Coated

About Us:

We are committed to making the best auto-parts products and providing you with better services.
So if you have any quesiton or problem, please fell free to contact us about that.

Payment:

Any payment can be accepted by .

Shipping:

2-8 working days in transit.

Product will be shipped within 2 business days after full payment is received and verified.
USPS, UPS, FedEx shipping will be provided.
Delivery time is about 2-8 business days to most of free return provided.

Any quesiton or problem, do contact us please.
We are always online to answer.
Note: Do check the compatible chart before paying the items, or contact us for checking the compatibilities for your vehicles/cars/trucks.
