Store Categories Store Categories Products Images Details 12V Underdash Car Air Conditioner Electric A/C Kit Cool Only With Remote Control Product Features

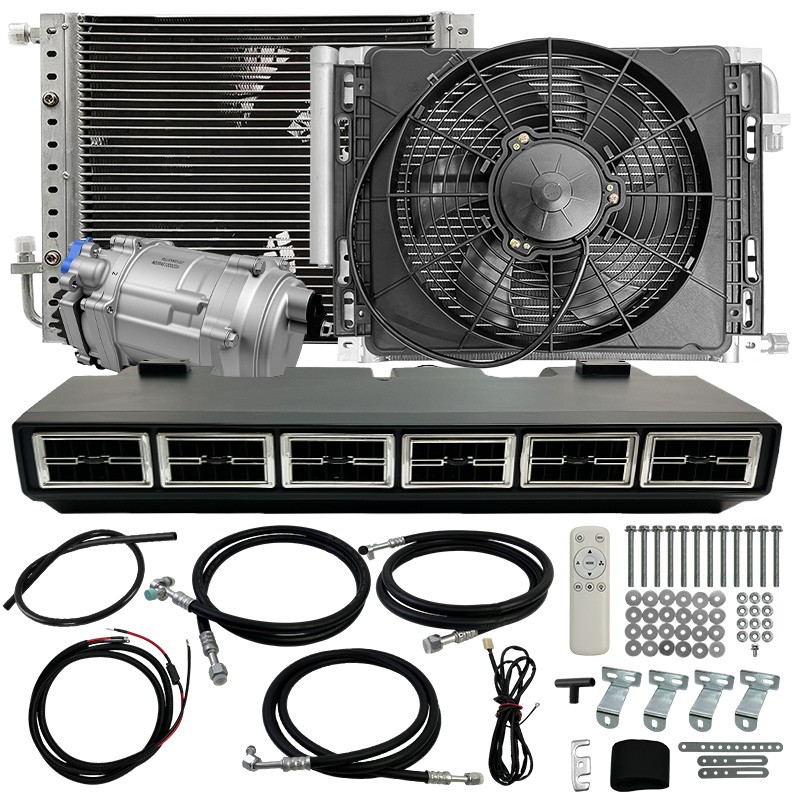

✅ Complete Full‑Set Air Conditioning Kit：Comes with evaporator assembly, condenser, cooling fan, compressor assembly, wireless remote control, refrigerant pipelines, all wiring harnesses, drain pipe and full mounting hardware. All installation accessories are included for convenient under‑dash retrofit for various vehicles.
✅ Core Technical Parameters：Model BEU848L‑SET‑01‑6; Rated Voltage:12V DC; Operating Current:33‑66A; Rated Power:792W; Cooling Capacity:2000‑3000W; Refrigerant:R134A; Refrigerant Oil:POE68; Recommended refrigerant charging weight:600±10g; Required power cord cross‑section ≥10mm²; Cooling only design, heating function optional.
✅ Intelligent Multiple Protection & Fault Code Indication：Built‑in multi‑protective functions including over‑current, stall, under‑voltage, electronic fan failure, motor phase‑loss, compressor over‑temperature and system high‑pressure switch protection. Compressor indicator light flashes with different frequencies to show fault codes for quick troubleshooting.
✅ Wide Application & Remote Control Operation：Universal under‑dash mounting design, suitable for trucks, vans, campers, RVs and engineering work vehicles. Equipped with wireless remote control for easy temperature and wind speed adjustment. Supports parking cooling when matched with qualified lithium battery and generator.
✅ Important Installation & Usage Reminders：Refrigerant evacuation and charging must be finished by certified HVAC technicians. Keep condenser clean for stable heat dissipation. Connect positive terminal to battery positive and negative terminal to battery negative strictly. Use genuine R134A refrigerant only to extend unit service life.
Product Description
The BEU848L‑SET‑01‑6 universal under‑dash A/C evaporator kit is a complete 12V DC electric air‑conditioning solution specially designed for retrofitting trucks, vans, RVs and work vehicles without factory‑installed air‑conditioning system.
Delivering powerful 2000‑3000W cooling capacity with rated power of 792W, this AC kit adopts R134A refrigerant and POE68 refrigerant oil, with standard refrigerant filling quantity 600±10g. The whole kit contains evaporator assembly, condenser, cooling fan, compressor, remote controller, refrigerant hoses, wiring harnesses, drain tube and all mounting brackets & bolts, you can finish modification with matched auxiliary tools.
Equipped with comprehensive safety protection mechanism. When abnormal status occurs, the compressor indicator lamp will flash in specific cycles to output fault codes, helping you locate over‑current, under‑voltage, fan fault, compressor overheat and other issues rapidly. Wireless remote control brings easy operation for temperature and airflow adjustment.
For better cooling performance, clean condenser regularly according to service conditions. Please use power cable with cross‑section ≥10mm². It is highly suggested to cooperate with ≥200A lithium battery and ≥90A generator for long‑time parking cooling.
Warning: Refrigerant vacuum pumping and charging work must be operated by qualified professional technicians. Improper operation will cause unit damage or personal hazard. Read the full user manual carefully before installation.
Technical Specification Table
Item Parameter Model BEU848L‑SET‑01‑6 Rated Voltage 12V DC Working Current 33‑66A Rated Power 792W Rated Cooling Capacity 2000‑3000W Refrigerant R134A Refrigerant Oil POE68 Refrigerant Charging Quantity 600±10g Power Cord Requirement ≥10mm² Heating & Cooling Type Cooling only / Cooling & Heating optional Package Includes
1 × Evaporator Assembly
1 × Condenser
1 × Cooling Fan
1 × Compressor Assembly
1 × Remote Control Set of Refrigerant Pipelines Main Power Cord, Signal & response Harness, Cooling Fan Power Cord
1 × Drainage Pipe Condenser mounting bolt kit, assembly brackets and all fitting accessories
Note: Professional installation is strongly recommended.
