DESCRIPTIONPAYMENTSHIPPINGRETURN POLICYCONTACT US 12V Electric Cool&Heat Universal Underdash Air Conditioner DC Auto Car A/C Kit

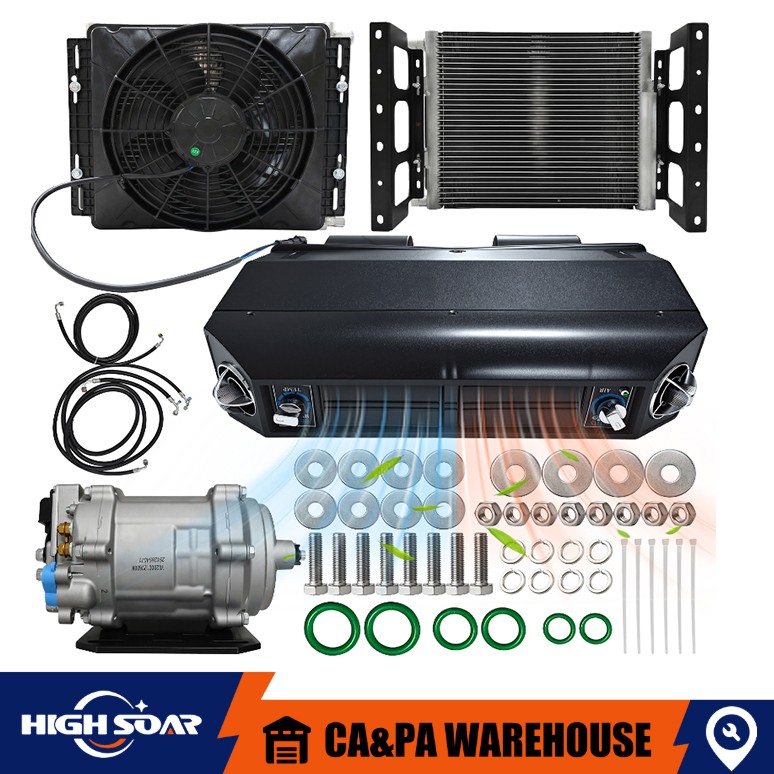

12V Electric Cool&Heat Universal Underdash Air Conditioner DC Auto Car A/C Fit for a Wide Range of Vehicles】This DC 12V electric air conditioner fits most vans, trucks, pickups, RVs, taxis, excavators, agricultural vehicles, engineering machinery, and ships. A versatile heating and cooling solution for professional fleet operators, DIY off-road enthusiasts, and equipment owners alike.
【2-in-1 Heating & Cooling Under-Dash AC Kit】All-in-one design integrates a condenser, cooling fan, evaporator, and compressor into a compact unit—ideal for both hot summer days and cold winter commutes. Delivers consistent temperature control to create a comfortable driving environment no matter the weather.
【High-Efficiency 13700 BTU Compressor】Equipped with a professional-grade electric scroll compressor that pumps out 13700 BTU cooling capacity for fast, powerful cooling. Features intelligent frequency adjustment to minimize energy consumption, and supports operation via car battery or external power source—even when the engine is off.
【Ultra-Quiet Operation for Distraction-Free Driving】Built with a silent evaporator and smart temperature control that runs below 70dB. Eliminates noisy humming or rattling common with standard vehicle AC units, letting you enjoy a peaceful ride whether you're on a long haul or daily commute.
【Simplified Installation with Complete Kit】Features a 3-in-1 condenser design that cuts down installation time and effort—no complicated assembly required (professional installation is recommended). The kit includes all necessary components: condenser, cooling fan, evaporator assembly, compressor, refrigerant pipelines, power cords, and Name: DC 12V Electric Air Conditioner Kit
Compressor Type: Integrated Electric Scroll Compressor
Applicable Refrigerant: R134a
Compressor Displacement: 20cc/f
Oil Charge: RL68H (POE) / 120ml
Compressor Drive Type: Integrated
Motor Type: Permanent Magnet DC Speed-Regulated Synchronous Motor
Insulation Class: Class F
Cooling Method: Suction Refrigerant Cooling
Suction Port Diameter/Seal: ∅18.3/ O-Ring Radial Seal
Discharge Port Diameter/Seal: ∅15.5/ O-Ring Radial Seal
Speed Range: 1500rpm～2300rpm
Pressure Resistance (Sealing Pressure): 3.5MPa
Pressure Resistance (Burst Pressure): 6.5MPa (High-Pressure Side) / 2.5MPa (Low-Pressure Side)
Protection Class: IP67 (Used with Matching Compressor Connector and Mating Part)
Noise: <70dB
Rated Voltage: DC 12V
Evaporator Coil: 32 pass 4 way all Aluminum coil
Thermostat Type: Mechanical Thermostat
Cooling Capacity: 13,700 BTU
Air Flow Control: 3 speeds
Air Volume: 359 CFM
Package List:
1 x Condenser & Cooling Fan
1 x Evaporator Assembly
2 x Evaporator Brackets
4 x Refrigerant Pipeline
Item SpecificsMounting Style :Bolt-On Assemble kitPower Source :ElectricItems Included :Condenser Cooling Fan Mounting HardwareCompressor Type :Integrated Electric Scroll CompressorMaterial :MetalAdjustable Temperature Range :-4℉ to 149℉Feature :Heat&CoolBrand :HIGHSOARFunction :Heat & CoolType :A/C Complete KitInterchange Part Number :Electric Under dash Air Conditioner 12V Electric Air Conditioner Underdash Air Conditioner 12V Car AC 12v air conditioner 12v air conditioning electric ac compressor 12v electric ac electric car A/C air conditioner compressorManufacturer Warranty :1 YearHeating principle :Using the engine coolant to heat the air vent coreVoltage :DC 12vFitment :Car; Truck; Van; Pickup; motorhome etcFeatures :100% Leak Tested Durability Tested No Drilling/Modification Needed Patent PartUniversal Fitment :YesCountry of Origin :ChinaSpecial Feature :Fast Cooling, Heating & Cooling Function, Compressor
