125cc 4 Stroke Single Cylinder Manual Clutch Motor Engine for Dirt Bike Pit Bike For Sale - New and Used

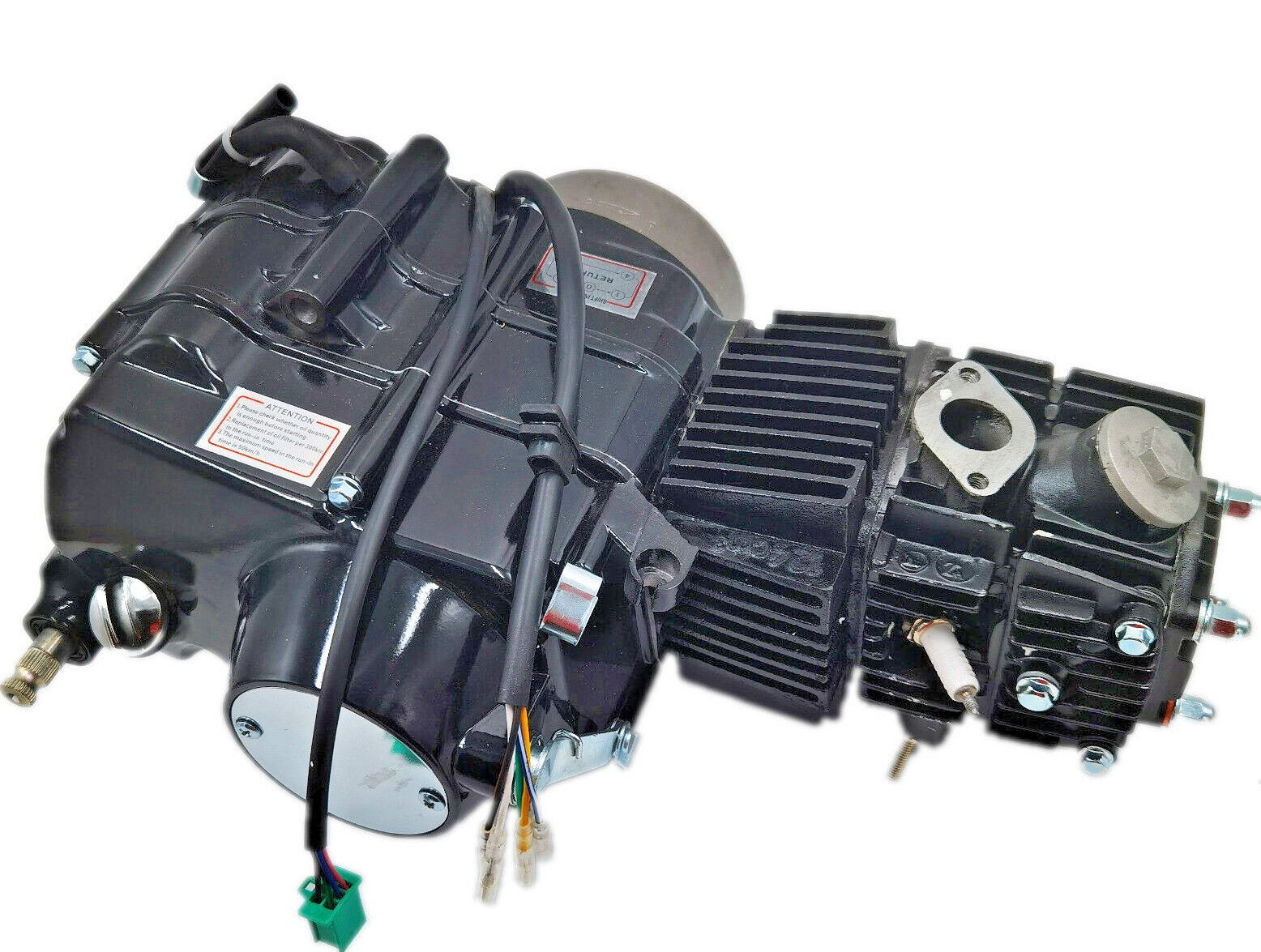

125cc 4-Stroke Single Cylinder Manual Clutch Motor Engine for Dirt Bike Pit Bike

For sale is a 125cc 4-Stroke Single Cylinder Manual Clutch Motor Engine used on many Dirt Bikes.Made of high quality materials. Easy installation. Convenient to use. Easy operation.Specifications:

• Brand: KDSG
• Condition: New
• Engine Type: Single-Cylinder, 4-Stroke, OHC air cooled
• Material: Stainless Steel, Alloy Steel
• Bore & Stroke: 54 X 54mm
• Compression Ratio: 9.47:1
• Displacement: 123.7cc Max. HP: 8.72 HP @ 7,500 RPM Max. Torque: 8.0N.m @ 5,500 RPM
• Idle: 1,500 RPM
• Starter: Kick Start
• Ignition System: CDI (Capacitive Discharge Ignition)
• Clutch: Manual clutch - Wet Multi-plate
• Transmission: 4-speed, Manual Clutch
• Gears: 4 speed (primary reduction: 3.722 manual, 4.059 Auto)
• Gear Ratios: 2.833/1.706/1.238/0.958
• Magneto: Permanent magnetic Voltage: 12 Volt
• Spark Plug: A7TC or NGK C6HSA
• Plug Gap: .28 or 0.6-0.8mm
• Lubrication: Pressure / Splash
• Oil Capacity: 0.9L (15w/40-SE)
• Measurements: 18 1/4" X 11" X 11"
• Weight: 44.1/4 lbs (Engine only); Shipped 52 lbs
• Please note this product is for dirt bikes only
• Please note that there may be oil stains on the received package. This situation is normal. Please rest assured to use it
• The installation is very complicated, so we strongly recommend that this engine be installed by professionals
• Please check the lubricating oil lever before driving
• Please change the oil and clean filter every 300km and do not exceed 50km/h maximum during the first 500km

Please make sure to inspect the product images and specifications before making a purchase. Thank you!

---
