SpecificationMaterial: Q235 SteelColor: OrangeSurface Treatment: Polishing and Painting ProcessesAssembly Required: YesNumber of Items: 1Electric Winch Voltage: 12VWinch Rope Length: 7.5m/24.6ftBattery Model: 1 * AA Battery(Included) Electric Winch Capacity: 1587kg/3500lbLifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; Length: 1.3m/4.27ftLifting Arm Height Adjustment Range: Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.55m/5.09ftBase Rotation Angle: 360 °Gross Weight: 44kg/97lbNet Weight: Pole Height: Size: 24*24cm/9.45*9.45inInstallation Hole Diameter: 17mm/0.67inProduct Size(L&H): 1.1

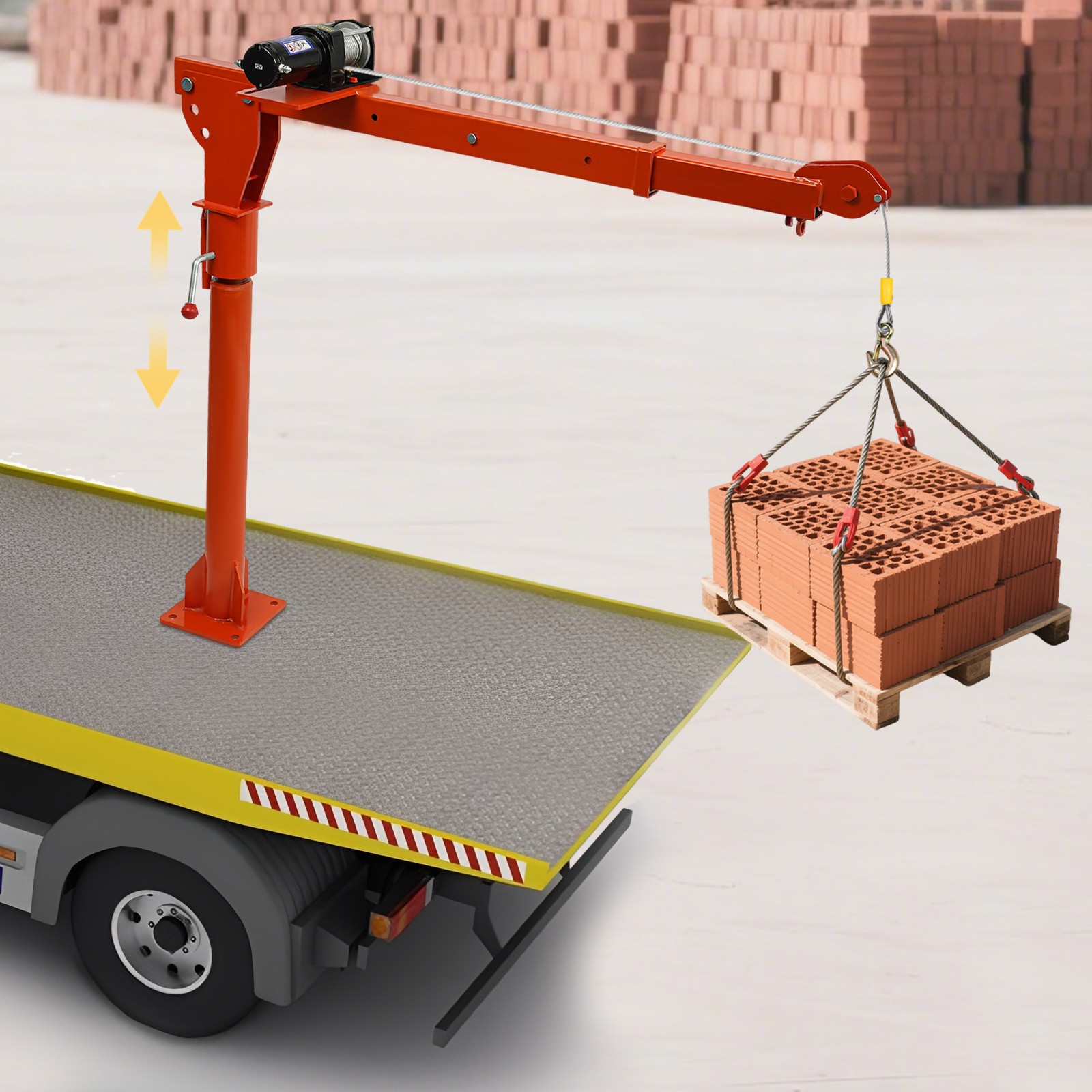

1100lbs Truck-Mounted Base Crane Hoist Lift Pickup with 12V Electric Winch New
Description
This truck-mounted crane hoist with 1100lbs load-bearing capacity is an exceptional helper in heavy lifting that can handle a wide range of lifting tasks with utmost ease and proficiency. Its adjustable height and arm length make it an efficient tool in reducing work pressure and enhancing work efficiency, providing a level of convenience. It is a valuable addition to various heavy lifting tasks to lift engines, tables, wood, and shop equipment.
Key Features
Build to Last: This product uses high-quality Q235 steel and polishing and painting processes, making it wear-resistant, corrosion-resistant, rustproof, and has a long service life.
Adjustable Design: You can adjust the lifting arm length at 3.61/4.35/5.09ft and angle at 0°/20°/40° and the crane height from 3.45-6.89ft to meet your different construction environments and usage needs. The 360° rotatable base also brings more convenience during the lifting process.
Stable Structure: The large square base(9.45-in in length) with four screw-reinforced installation holes makes the product highly stable, so you don\'t have to worry about shaking or collapsing during the production process.
Strong Load-bearing Capacity: The maximum 1100 lbs load capacity of the truck-mounted crane and 3500 lbs load capacity of the electric winch allow you to use this product with confidence to lift heavy objects such as engines, tables, and shop equipment.
Effortless Cleaning: The smooth surface after a painting treatment finish allows you to simply clean this product with a wet cloth.
Simple Assembly and Disassembly: The complete accessories and pre-drilled holes allow you to assemble this product easily and start to use it in a short time. You can also easily dismantle it for space-saving and convenient storage when not in use.
Protective Package: The anti-collision bubble cotton can effectively avoid the loss caused by normal vibration and collision during transportation and ensure that you can receive intact products to a certain extent. Hook: Made of alloy steel, it is durable and helps to hang goods without falling off easily.
Winch Rope: The 24.6ft wire rope can meet your basic needs without buying another one.
Steering Handle: It plays a turning function, allowing for convenient operation.
Wire Rope Limit Pin: It ensures that the steel wire rope does not exceed its maximum tension range to avoid accidents such as breakage of the steel wire rope due to exceeding its load-bearing capacity during movement.
Application
It is mounted on a truck to lift generators, engines, compressors, wood, shop equipment, etc. It is suitable for the construction industry, forestry industry, and more. Q235 Steel
Color: Orange
Surface Treatment: Polishing and Painting Processes
Assembly Required: Yes
Number of Items: 1
Electric Winch Voltage: 12V
Winch Rope Length: 7.5m/24.6ft
Battery Model: 1 * AA Battery(Included)
Electric Winch Capacity: 1587kg/3500lb
Lifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; 500kg/1100lb
Cable Length: 1.3m/4.27ft
Lifting Arm Height Adjustment Range: 0°-20°-40°
Lifting Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.55m/5.09ft
Base Rotation Angle: 360 °
Gross Weight: 44kg/97lb
Net Weight: 40kg/88.18lb
Support Pole Height: 1.05m/3.45ft
Base Size: 24*24cm/9.45*9.45in
Installation Hole Diameter: 17mm/0.67in
Product Size(L&H): Size: 105*30*25cm/41.34*11.81*9.84in
Package Included
1*Truck-Mounted Crane Hoist
1*Electric Winch
All Accessories Required for read the label carefully before using it. Please stay away from the area around the wire rope and drum.
Please pull out the rope in the direction of the arrow. Please do not use it for overloaded lifting or moving personnel.Please take a 10-minute break after 30 minutes of continuous work. Please turn off the power switch when not in use. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering. PaymentDelivery detailsTerms of salesAbout usContact usPaymentWe accept payment 。Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer\'s responsibility.Delivery detailsShipping:2-9 working days to: USATerms of sales
