Tech Data: Hub Side Thread Pitch: M14x1.25 · Hub Side Length: 15 mm · Wheel Side Thread Pitch: M14x1.5 · Wheel Side Length: 45 mm ? full specs belowFitment:BMW:
Toyota:
Mini:
IMPORTANT FITMENT NOTICE: Before You Buy: ? for factory lug bolt hubs - each stud replaces a lug bolt ? wheel-side lug nuts must be M14x1.5 and match your wheel's seat, the nut-to-wheel contact shape ? nuts are not included w? 's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Bolts to Nuts Conversion Studs M14x1.5 Wheel SideConverts Factory Lug Bolt Hubs to Stud and Nut MountingM3 Allen Key DriveSCM Carbon Steel M14x1.5 Bolts-to-Nuts Conversion Studs - M3 Allen Key Drive - Made in Taiwan, 90-Day Warranty

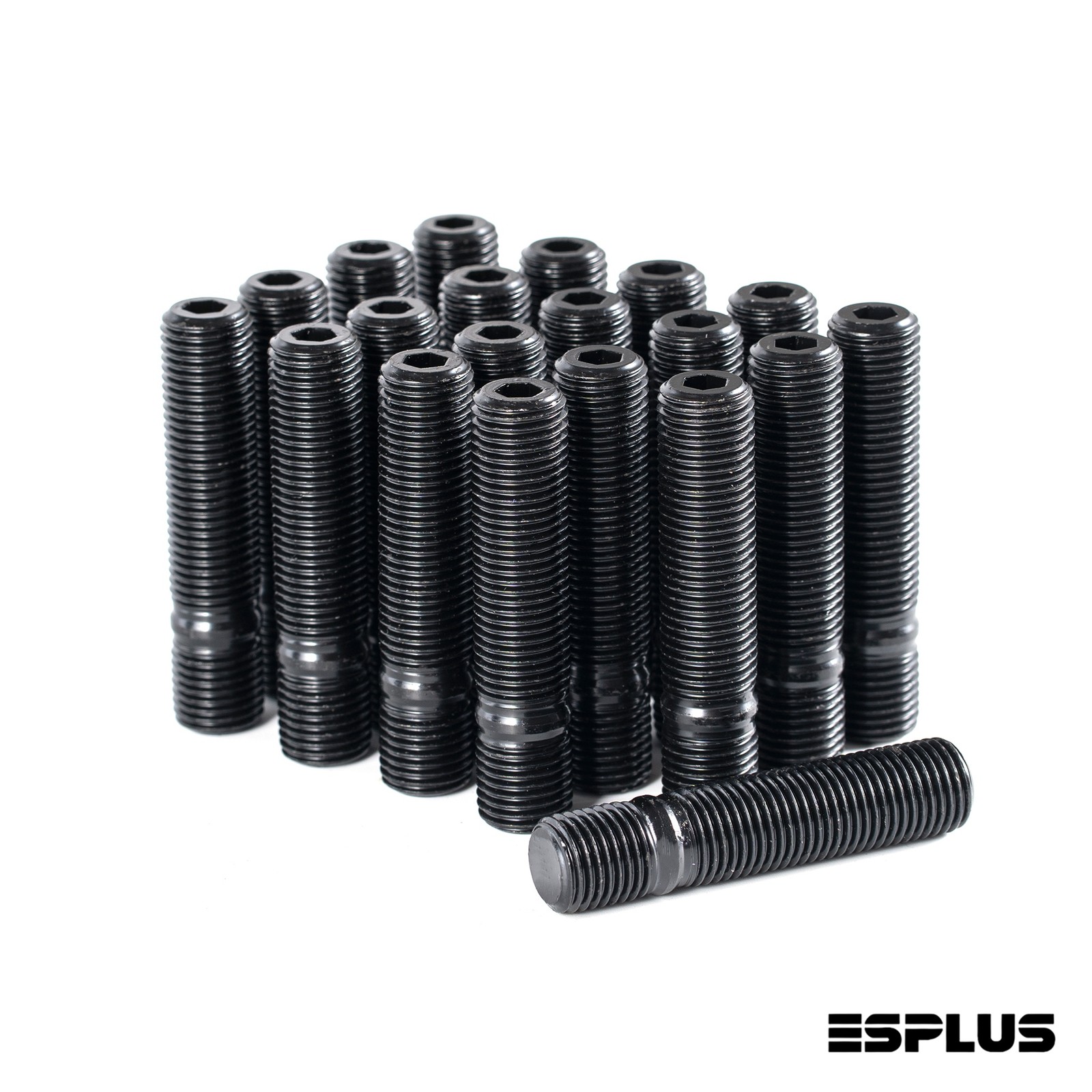

[20] Conversion Studs M14x1.25 to M14x1.5 for 15-27 BMW 330i
Direct-fit upgrade for BMW & Toyota owners ? confirm your exact year and model in the compatibility chart below before ordering.Converts hub to stud mountingFor Factory Lug Bolt HubsHands-free wheel hangingM14x1.5 wheel nuts requiredSet count shown in the title Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Technical Data Numbers, not adjectives.
Every dimension your wheel cares about ? measured, verified, documented.
A M14x1.25 - M14x1.5 Extend Wheel Studs Type · Bolts to Nuts Conversion Studs ×20 PCS/Set Hub Side Thread PitchM14x1.25Hub Side Length15 mmWheel Side Thread PitchM14x1.5Wheel Side Length45 mmColor and FinishBlackDriveM3Tool RequirementM3 ToolMaterial MadeSCM Carbon SteelQuantity Per Order20 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.
Bolts-to-nuts conversion studs for hubs that use factory lug bolts, converting the wheel side to M14x1.5 stud-and-nut mounting; match your original bolt thread and use M14x1.5 seat-matched lug nuts.
3Brands 3Vehicles 2Regions EU Germany 1 Featured BMW Germany · 1 models Lug Nuts Thread RequiredM14x1.5 ModelRegionYear Range 330i MX/US 2016-Current AS Japan 1 Featured Toyota Japan · 1 models Lug Nuts Thread RequiredM14x1.5 ModelRegionYear Range Supra MX 2021-2025 EU United Kingdom 1 Featured Mini United Kingdom · 1 models Lug Nuts Thread RequiredM14x1.5 ModelRegionYear Range Aceman MX 2025-Current
Not sure? Message us ? we verify your exact year & model before you buy.
Product Display A closer look at the product.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Check Before You Order Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
Why It's Built Different Performance you can torque down. Bolts-To-Nuts Conversion For Lug Bolt Hubs
Threads into the factory lug bolt holes and turns the hub into a stud-and-nut setup, so the wheel hangs on fixed studs instead of being balanced over an empty bolt hole.
M14x1.5 Wheel-Side Thread - Your Choice Of Nuts
The stud converts the wheel side to M14x1.5, so any M14x1.5 lug nut that matches your wheel's seat runs on it; wheel-side nuts are not included with these bare studs.
M3 Allen Key Drive In The Stud Tip
An internal M3 hex in the tip seats the stud snug with a thread locker, and because the drive sits inside the stud, the wheel-side threads stay untouched during install.
SCM Carbon Steel Body
SCM Carbon Steel shanks carry the wheel load while the lug nuts, torqued to your vehicle spec, provide the clamping force; the stud body is only seated snug, not torqued.
Faster Seasonal Wheel Swaps
With studs fixed in the hub, the wheel locates itself before any nut is started - less cross-thread risk and quicker tire changes every season.
How to Install 3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.
01 Clean And Prep Bolt Holes
Remove the factory lug bolts and clean the hub threads so each stud seats on dry, oil-free threads, then apply a thread locker to the hub-side end of the stud.
Repair worn or damaged hub threads before installing any stud. 02 Seat Studs With M3 Key
Drive each stud into the hub with the M3 Allen key in the stud tip until it sits snug against the hub, then let the thread locker set per its instructions.
Snug only - torquing the stud body can strip the hub threads. 03 Mount Wheel, Torque Nuts
Hang the wheel on the studs, start all M14x1.5 lug nuts by hand, then torque in a star pattern to your vehicle spec and recheck torque after the first drive.
Clamping force comes from the lug nuts at vehicle spec, not from the stud body. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Before You Buy:
- for factory lug bolt hubs - each stud replaces a lug bolt
- wheel-side lug nuts must be M14x1.5 and match your wheel's seat, the nut-to-wheel contact shape
- nuts are not included with bare studs
- the stud count for this listing is in the title
Install:
- seat studs snug with the M3 Allen key and a thread locker - never torque the stud body
- clamping force comes from the lug nuts torqued to vehicle spec
- recheck torque after the first drive
's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.
Why ESPLUS Clarity before checkout.
Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.
Specification First
Thread, seat, dimensions, finish and quantity are organized for direct comparison.
Fitment in Two Layers
Vehicle compatibility and wheel-specific hardware checks are presented separately.
Component-Level Detail
Combination listings keep each component's quantity, gallery and technical data distinct.
Pre-Purchase Support
Message us through with your year, model, wheel and current hardware details.
Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.
The controls attached to this listing are the source of truth for the transaction.
Shipping
Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.
Returns
The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.
Fitment Responsibility
Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.
About ESPLUS Precision wheel hardware.
Clarity built into every listing.
ESPLUS focuses on wheel fastening hardware and fitment-critical accessories. We organize product specifications, vehicle application data, wheel-side checks and installation guidance so buyers can compare the right facts before ordering.
