Application:
2001-2005 Civic LX Sedan 4-Door
2001-2005 Civic LX Coupe 2-Door
2001-2005 Civic HX Coupe 2-Door
2001-2005 Civie GX Sedan 4-Door
2001-2005 Civic EX Sedan 4-Door
2001-2005 Civic EX Coupe 2-Door
2001-2005 Civic DX Sedan 4-Door
2001-2004 Civic DX Coupe 2-Door
2002-2005 Civic Si Sedan 4-Door
2002-2005 Civic Si Coupe 2-Door
2004-2005 Civic Value Package Sedan 4-Door

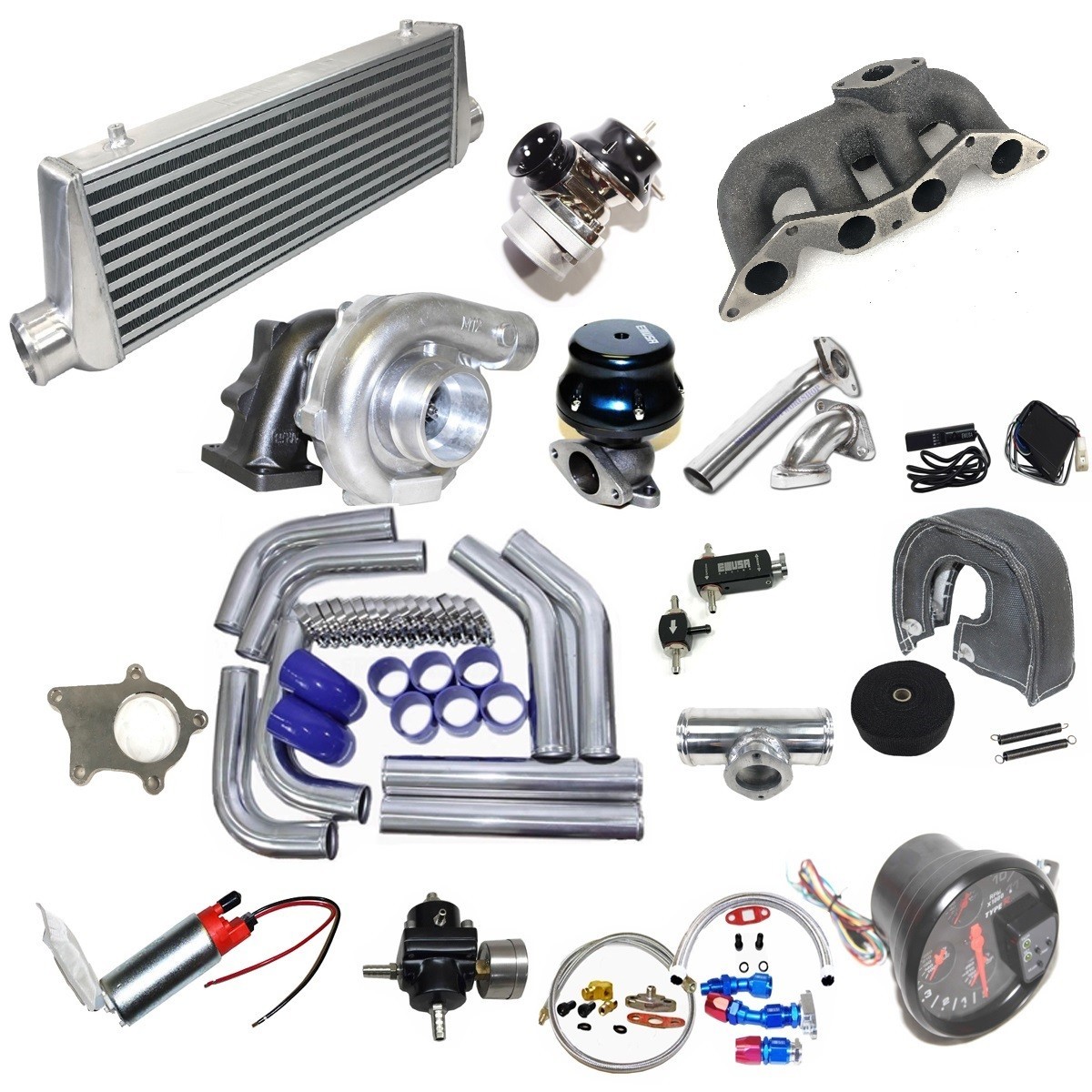

2004-2005 Civic Value Package Coupe 2-Door1.7L D17 SOHC ONLYPackage included:1. Cast Iron Turbo Manifold for 2001-2005 Civic D17 1.7L SOHC with T3 Flange
Turbo Manifold Made of Cast Iron
Direct Bolt on
With T3 Turbo Flange Fits T3 T3/T4 T4 T70 GT35 turbocharger
With 35mm/38mm External Wastegate Flange
2. T3/T4 Turbo Charger
Brand new T3/T4 .63 turbo charger max up to 550HP.Inlet: 3 Inch. Outlet: 2 Inch.Turbine Flange: T3 Flange.Downpipe Flange: T3/T4 5 Bolt Flange.Type of Bearing: Journal Bearings.Oil Cool Only3. Aluminum Front Mount Intercooler 27\"x8.5\"x2.75\" Overall 2.5\" Inlet/Outlet
Overall Size 27\" x 8.5\" x 2.75\"
Core Size 20.5\" x 6.5\" x 2.25\"
Both Inlet/Outlet ports are 2.5\" O.D.
Tube and Fin Design
Construction Machine Cut and Stamped, Hand Welded4. (8 pcs) of Aluminum 2.5\" Piping Kit
Universal 2.5” polished aluminum piping kit. Made of high quality T6061 aluminum. * THIS PIPING KIT IS UNIVERSAL, IT IS NOT BOLT ON TYPE.CUSTOMERS NEED TO CUT AND BENT THE INTERCOOLER PIPE TOFIT YOUR CAR.
Quality 4PLY silicone couplers andstrong and tighter t-bolt clamp.it can support up to 600HP.5. RS Type Blow off Valve BOV, Random color ( black, red, blue, silver, purple, gold)
Brand new RS turbo blow off valve bov. Made of high-quality CNC billet aluminum and anodized finished. Including O-ring, hardware and flange.6. 38mm 2-Bolt Turbo Wastegate, Random color ( black, red, blue, silver, purple)
* Brand new universal 38mm 2 bolt wastegate, made of high-quality CNC billetT6061aluminum housing for heat disbursement, includes stainless steel hardware bolts. Inconel base housing with forged stainless-steel valves construction. * Heavy duty actuator springs withstands temperatures upto 490 degrees Celsius. Set at 9PSI, adjustable spring rate with use of any boost controller.
7. Oil Return Line, Random color ( black, silver)
Brand new 10AN oil drain/return line kit, Length: 17”. ID: 0.5”. Helps circulate oil from the turbo to the oil pan.
8. Oil Feed Line:
Brand new oil feed line, made of high-quality stainless-steel braided line. Special designed inlet adapter limits oil flow, effectively prevent blown oil seal caused by excessive oil pressure. *Length: 36”. ID: 3/8”.Comes with one 1/8 NPT male fitting and one 4AN male fitting. Has restriction build in, offers proper oil feeding to the turbo charger.9. Fuel pressure Regulator, Random color ( black, red)
Brand new fuel pressure regulator. Made of high-quality CNC machined aluminum. Includes hardware’s and hoses for installing. * Manage your fuel system requirements, increase fuel delivery by raising pressure. * Adjustable 0-140 PSI(0-10kg/cm) for maximum fuel pump capacity.10. TurboBoostController, Random color ( black, red, blue, silver, purple)
turbo boost controller. Made of high quality CNC machined T6061 aluminum with anodized finish. Comes with hardware for easy installing. * Light weight design. Allow you to adjusts ratings(1-30PSI) without changing the wastegate springs as well as replacing the wastegate springs.11. TurboTimer
* Brand new pen style turbo timer. Made of high quality. * A turbo timer is a device designed to keep an automotive engine running for a pre-specified period of time in order to automatically execute the cool-down period required to prevent premature turbowear and failure. * A turbo timer can be programmed to leave the engine runningfor a pre-specified period of time even after the driver has exited and lockedthe vehicle. after a period of driving when a turbocharger has been workinghard, it is important to let the engine run at idle speed for a period of time, allowing the compressor assembly to cool from the lower gas temperatures in both the exhaust and intake tracts. At the same time the lubricating oil from the engine is able to circulate properly so the turbine won’t burn the lubricating oil that would otherwise be trapped within the charger with the turbine rotating at high speed.12. Type RS 2-Bolt 2.5’’ Aluminum Blow Off Valve Adapter Pipe
13. Fuel Pump (255 LPH Flow Rate)
14. 5-in-1 Multi Function Gauge Aluminum In-Cabin RPM Oil Pressure
15. 2\" 50Ft 50\' Roll Fiberglass Exhaust Fire Header Pipe Heat Wrap Tape Black
16. Turbocharger Turbine Heat Shield Fiberglass Blanket Black
17. 38mm 75 degree 2 bolts adapter
18. 38mm elbow 2bolts adapter
19. T3/T4-5 bolt Flange Mild steel
Exactly Same as the Picture
We offer 90 days warranty from the purchase date.
Professional Installer Is Highly Recommend (No Instruction police:
30 Days money back, please notify us within 30 days after you\'ve received your purchased item.
All return requests must be submitted through your account.
All returns are for refund ONLY. No exchange accepted.
Items must be returned in brand new condition which means the item is never installed and kept in the original packaging, otherwise a 15% restocking fees will be charged.
All shipping and handling fees are non-refundable in any circumstances.
Please inspect your order upon receipt. NO claims will be honored after 10 days of delivery.
