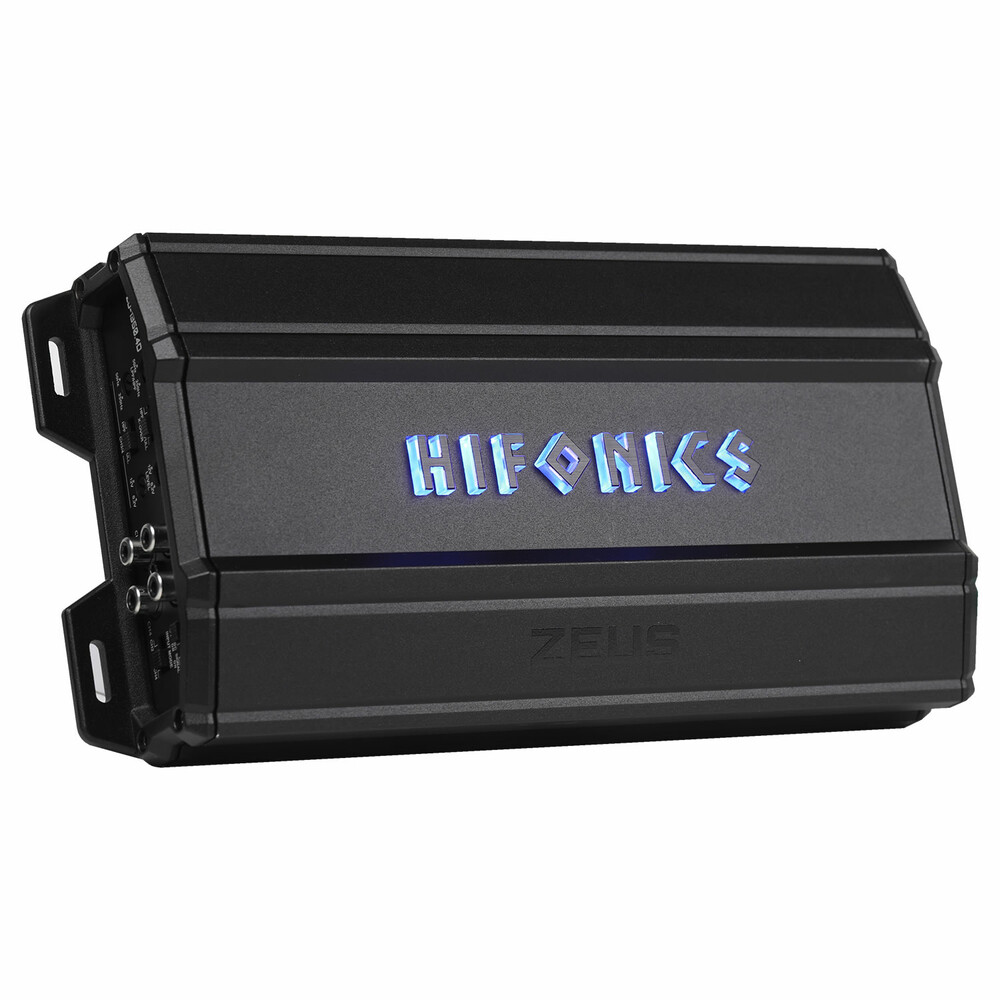

Hifonics ZD-1350.4D 1350W RMS Zeus Delta Series Class-D 4-Channel Car Amplifier 0123 Product Details:
- Class D 2ohms Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 170watts x 4channel
- 2 ohms: 335watts x 4channel
- Bridged, 4 ohms: 675watts x 2channel
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply
- LED Power/Protect Light
- Onboard electronic crossover
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Frequency Response: 10 - 22,000Hz
- Total Harmonic Distortion (THD): 0.5%
- Variable high-pass filter: 50 - 250Hz, 12 dB/octave
- Variable low-pass filter: 50 - 250Hz, 12 dB/octave
- Variable Bass Boost: bass boost at 45 Hz
- Fuse Rating: 60A
- 4AWG gauge power and ground wiring is recommended for installation.
- Dimensions: 5.75\" W x 11.65\" L x 2.16\" H
- Authorized Internet Dealer
- 1-year Manufacturer\'s Warranty
International customers are responsible for any and all customs, import duties, brokerage fees, and taxes. They are not included in the item price or stated shipping charges.
Additional shipping fees are required for locations including, but not limited to: PO Boxes, APO/FPO locations, Alaska, Hawaii, Puerto Rico, Guam, Canada and other countries outside the USA.
Power Specifications - Full Range ChannelsRMS Power @ 4 ohms170watts x 4channelRMS Power @ 2 ohms335watts x 4channelRMS Power @ 1 ohmN/ABridged RMS Power675watts x 2channelAmplifier SpecificationsSeriesZeus SeriesAmplifier ClassDNumber of Channels4-ChannelTotal Peak Power Output1350wattsTotal RMS Power OutputN/AMaximum Input Gauge Size4AWGMinimum Impedance Unbridged2ohmsMinimum Impedance Bridged4 ohmsFrequency Response10 - 22,000HzTHD at Rated RMS Power0.5%Speaker Level InputsYesBuilt-in CrossoverLow-Pass (LP)
High-Pass (HP)
Full (AP)High-Pass Crossover Frequency50 - 250HzLow-Pass Crossover Frequency50 - 250HzSubsonic FilterN/ASignal-to-Noise RatioN/AChannel SeparationN/ABass BoostN/ARemote bass/level controllerNoFuse Rating60A x 1Total Fuse Rating60AStrappableNoLow-Level Input SensitivityN/AHigh-Level Input SensitivityN/AWhat is in the box?PaperworkUser manualWITB: AmplifiersAmplifierOther Accessory #1N/AOther Accessory #2N/AOther Accessory #3N/AOther Accessory #4N/AOther Accessory #5N/AWarrantyParts Warranty Duration1 yearLabor Warranty Duration1 yearWarranty ProviderManufacturer High Output Alternators200 Amp High Output Alternator for 2012-2018 Jeep Wrangler
