This kit allows full Diagnostics for your Yamaha engine. This package contains everything you need to communicate to your Yamaha engine, as a dealer would in a workshop but allow you to do it using your own laptop and saving you on expensive dealer diagnostic fees. Everything you need to get up and running is included (Cable, Easy Install software and the latest data files). This Cable uses the latest quality chip-set and comes with the latest drivers. It plugs into your computers USB port for simplicity and ease of use. This Diagnostic kit works on Yamaha engines up to 2020. This same software is used by dealers and Yamaha specialists. The preconfigured cable allows the auto detection of the ECU and allows the full diagnostics of the engines functions as well as other functions. This kit also includes workshop manuals in PDF format and a parts catalog along with technical service information.
Note: This kit also includes a 6 FT USB extension cable so you can work at a comfortable distance from the engine.*Supports all models up to 2020*
Software includes:
- YDS 1.33-used to read all of your engine diagnostic codes and records, engine hours, activate low and high pressure fuel pumps, test individual injectors and ignition coils, set tilt-limit, deactivate most engine sensors for testing, view all sensor readings (TPS, IAC, battery voltage, charging voltage, rpm, oil pressure, MAP), stationary and static diagnostic tests, and much more. All data can be saved to your computer. Supports all models up to 2020.
Features:
- High Quality cable with 3 pin connector for long time use
- FT232RL chipset
- English menus
- Includes workshop manuals in PDF, Parts catalog and Technical service information
- Easy installation package with included drivers
PC Requirements:
- Works on all windows based operating systems XP, VISTA, 7, 8, 10, 11 (32 or 64 bit)
- Less then 1 GB of free HDD space
- One available USB port

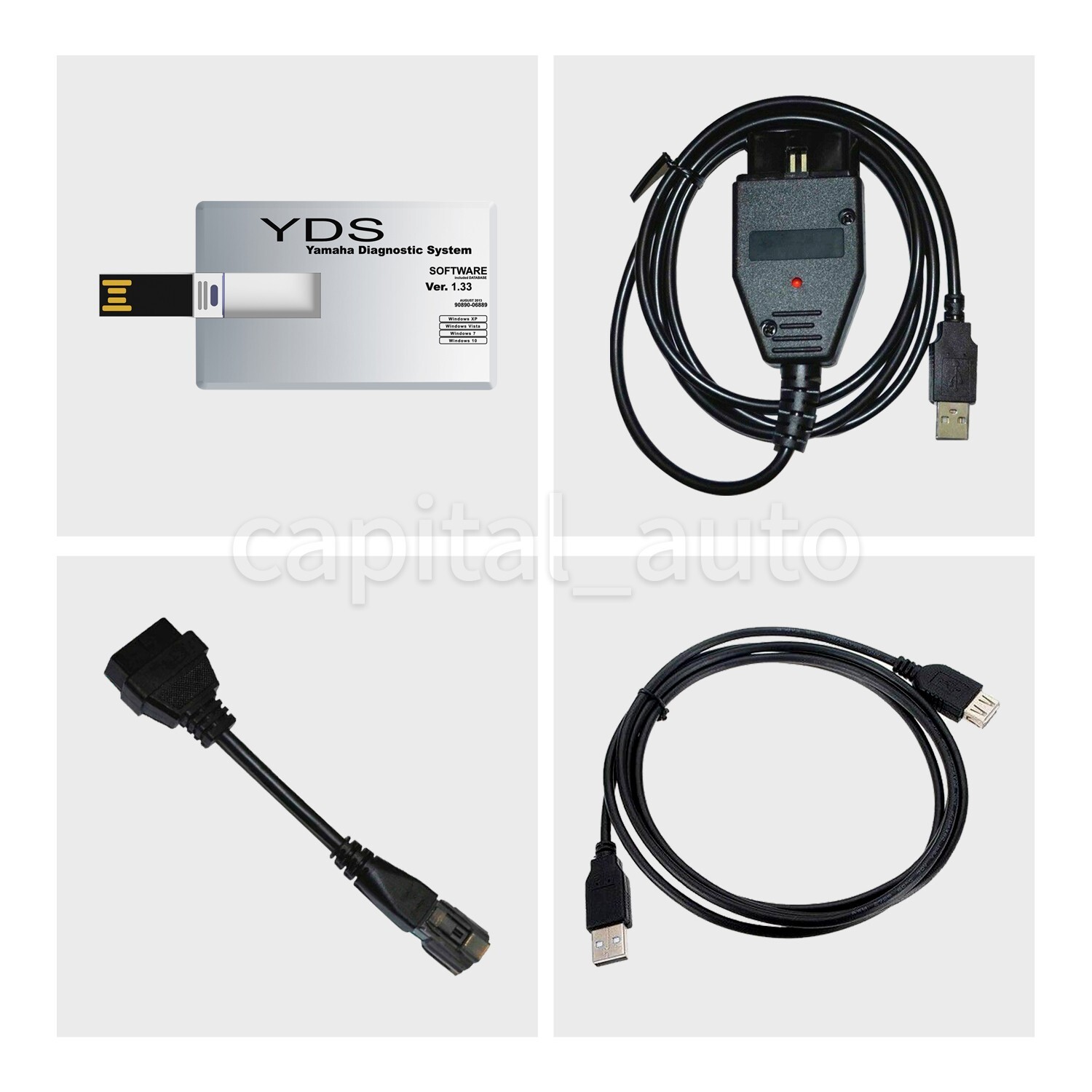

Your package will include:
- Flash Drive with Yamaha tools, software and drivers
- Preconfigured USB cable with 3 pin connector
- 6 FT USB 2.0 extension cable
- Step-by-step guide with pictures + technical support if needed
- Video guide
Why buy from US?
1. - You get easy Install Software2. - You get compatible with all windows operating systems (32 & 64 bit)3. - You get the most up to date versions of diagnostic software4. - You get the highest quality cable5. - You get the latest filesModels covered:AllYamahaHPDI OUTBOARD MODELS
Z150 , LZ150 , VZ150 , Z175 , VZ175 , Z200 , LZ200 , VZ200 ,VZ200 ,Z225 , VZ225 , Z250 , LZ250 , VZ250 , Z300 , LZ300 , VZ300
AllYamahaEFI 4-STROKE OUTBOARD MODELS
F30 , F40 , F50 , T50 , F60 , T60 , F70 , F75 , F90 , F115 , LF115 , F150 , LF150 , F200 , LF200 , F225 , LF225, F250 , LF250 , F300 , LF300 , F350 , LF350
(International Models)
AllYamahaHPDI models
Z150 , LZ150 , Z175 , LZ175, Z200 , LZ200 , Z225 , LZ225 , Z250 , LZ250 , LZ300 , Z300
AllYamahaEFI 4-Stroke Models
F30 , F40 , F50 , FT50 , F60 , FT60 , F70 , F75 , F80 , F90, F100 , F115 , FL115 , F150 , FL150 , F200 , FL200 , F225 , FL225 , F250 , FL250 , F300 , FL300 , F350 , FL350
AllYamahaYDS-compatible Personal Watercraft (Jet-Ski\'s/ Jet-Boat\'s)
JET-SKI MODELS
GP1300R , VX , VX CRUISER , VX DELUXE , VX SPORT , FX , FX CRUISER , FX HO FX CRUISER HO , FX SHO , FX CRUISER SHO , FZR , FZS , VX18R , VX18S
JET-BOAT MODELS
SR230 , SR230 HO , SX230 , SX230 HO , AR210 , AR230 , AR230 HO , SX210 , 212X , 212SS , 232 LIMITED , AR240 , AR240 HO , SX240 , AR190 , SX240 , SX240 HO, 242 LIMITED
MERCURY MARINE 225 (EFI 4-STROKE)
ALL MERCURY MARINE 75, 90, 115, and 225 EFI 4-STROKES MANUFACTURED BY YAMAHA MARINE
Important: The software will NOT work on Yamaha OX66 fuel injected engines, Yamaha carbureted engine,or MAC computers!
