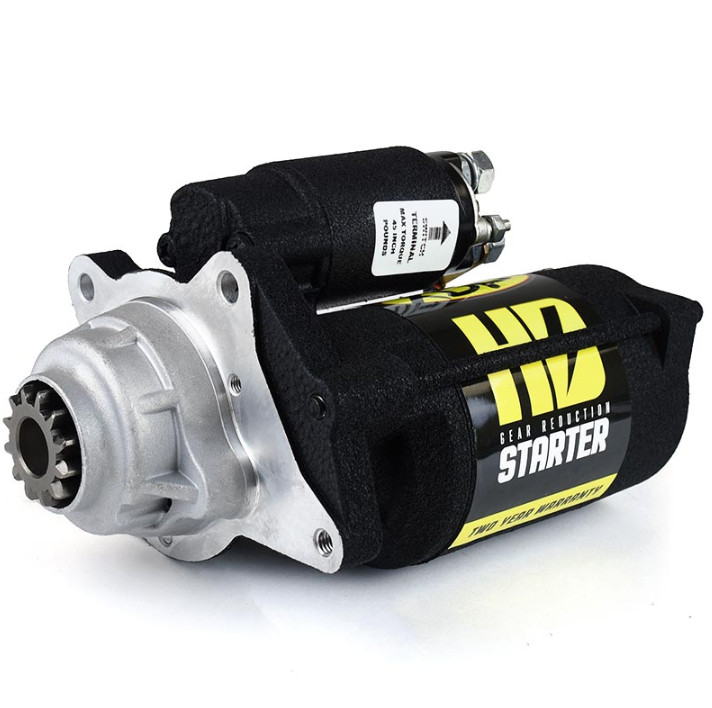

The gear reduction design is engineered to provide the torque needed to reliably and consistently start the engine. XDP states that its HD Gear Reduction Starters are faster, stronger, and more durable than the factory starter. Each starter is pre-tested and ready for installation.
Key Features
- HD Gear Reduction Design
- Wrinkle Black Finish
- Direct-Fit Replacement
- Pre-tested and ready for installation
- Designed for 2011–2024 Ford 6.7L Powerstroke
- 4.0 HP / 3.0 kW
- 275 ft-lb torque
- 4.75:1 gear reduction
- 2-Year / Unlimited Mileage Warranty
Important Technical Information
XDP notes that a starter can draw up to 500 amps, depending on operating conditions. Because of this high current demand, the battery, cables, terminals, and other starting-system components should be inspected and serviced regularly. XDP also recommends that voltage measured at the starter during cranking remain above 11V DC. A starter heat shield is not required, but XDP considers one a good option for additional heat protection.
Specifications
Part Number: XD254
Horsepower: 4.0 HP
Power: 3.0 kW
Torque: 275 ft-lb
Gear Reduction: 4.75:1
Fuel Type: Diesel
Manufacturer: XDP
GTIN: 857062006521
Cross Reference: BC3Z11002A, SA1004
