About this item:Wireless Multi-Panel Control: The power hub can wirelessly connect up to 4 switch panels, allowing flexible panel placement in different areas of your vehicle. No extra wiring needed—control remotely with ease. Control range up to 328FT under ideal condition.
Magnetic/Type-C Charging Options: Simply insert the switch panel into its holder for automatic magnetic charging—enables continuous use while powering up, or charge traditionally via Type-C cable.
Rechargeable & Long Working Time: About 14 days of standby time or 8hrs of continuous use after fully charged(2-3hrs). With battery indicators(white) to tell you how much battery left, and a charging indicator turns red when it\'s charging and green when full. Type-C charging cable included.Fully Customizable Lighting & Controls: 4 control modes—Toggle, Momentary, Flash, and Strobe Mode. 8-color backlight options & 2 dynamic effects: Gradient/Breathing. 6-level(0%-100%) of brightness to adjust according to the environment.
Powerful & Stable Performance: 720W@12V, 1440W@24V max power, 60A max current. High sensitivity and strong anti-interference capability ensure stability. Operating temperature: - 40°C to + 105°C, IP65 waterproof. Reinforced housing with metal bracket for robust durability and long lifespan. Comes with 5 spare fuses to protect vehicles from electrical faults.
Fast Installation - Plug and Play: As you know our cordless feature has saved you some wiring hassle, but that\'s not all, you can choose to connect it to ACC or Battery for power source, simply slide the switch to ACC or Battery! This flexible power supply design avoids lots of messy wires.You Will Get: 8 Gang Switch Panel, holder, control box, mounting brackets and accessories, 5 fuses(30A x2, 20A, 15A, 10A), 140pcs labeling stickers, antenna(with 9.8ft cord), and charging cable.
Specifications:Product Name: 8 Gang Switch PanelContact Material: PlasticVoltage: 12V/24V DCPower: 720W At 12V / 1440W At 24VMaximum Current: 60A TotalHigh Power Current: Two 30A, Two 20A, Two 15A, and Two 10AFour function mode: Constant Light, Momentary, Flash, StrobeTwo Connect Way: ACC / BatteryFive Levels of Backlight Brightness AdjustmentWaterproof: IP65Extra 5 fuses(30A x2, 20Ax1, 15Ax1, 10Ax1)Operating Temperature: - 40°C ~ + 105° CWireless Technology: Wlan Wireless Local Area NetworkWireless Operating Frequency: 433 MHZBattery: RechargableWireless Control Distance: 328 FT/100M

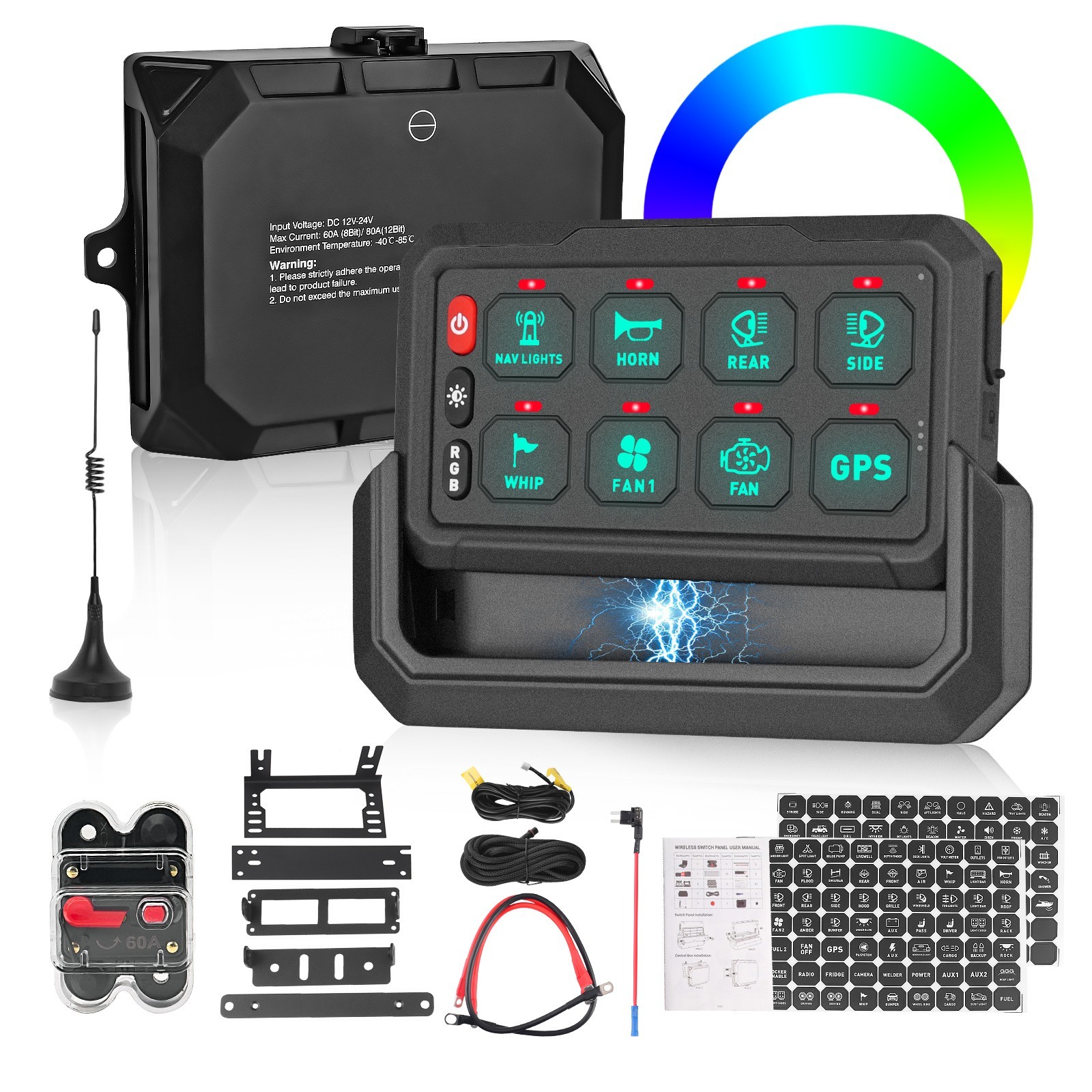

Package Includes:1Pcs 8 Gang Switch Panel1Pcs 60A Circuit Breaker1Pcs Circuit Control Box5Pcs Mounting Brackets1Pcs Magnetic Antenna + Adhesive Tape140 Pcs Stickes Labels1Pcs USB Charge Cable (Type C)1Pcs Wiring Harness1Pcs Power Harness1Pcs Fuse Extender10Pcs Cable Ties1Pcs Screw + Driver Kit1Pcs Manual Guide
Tired of messy wiring and limited control in your vehicle?
Upgrade to the CHELHEAD P1s-W Wireless Switch Panel — designed for clean, powerful, and remote control of all your lighting accessories, with a wireless range up to 328FT. Effortlessly manage up to 4 switch panels, enjoy dual charging options (Type-C & magnetic), and personalize your experience with 4 control modes, 8 backlight colors, and dynamic lighting effects like Gradient and Breathing. Built tough for off-road, it’s the ultimate all-in-one switch solution.
