Universal 2 Door Suicide Hidden Hinges Kit + Door Remote Kit + 85 lbs Shaved USA Product Description Universal 2 Door Suicide Hidden Hinges Kit + Door Remote Kit + 85 lbs Shaved USA
One year warranty
100% New Construction
Free and Fast Shipping to USA
High Quality and Quality Guaranteed

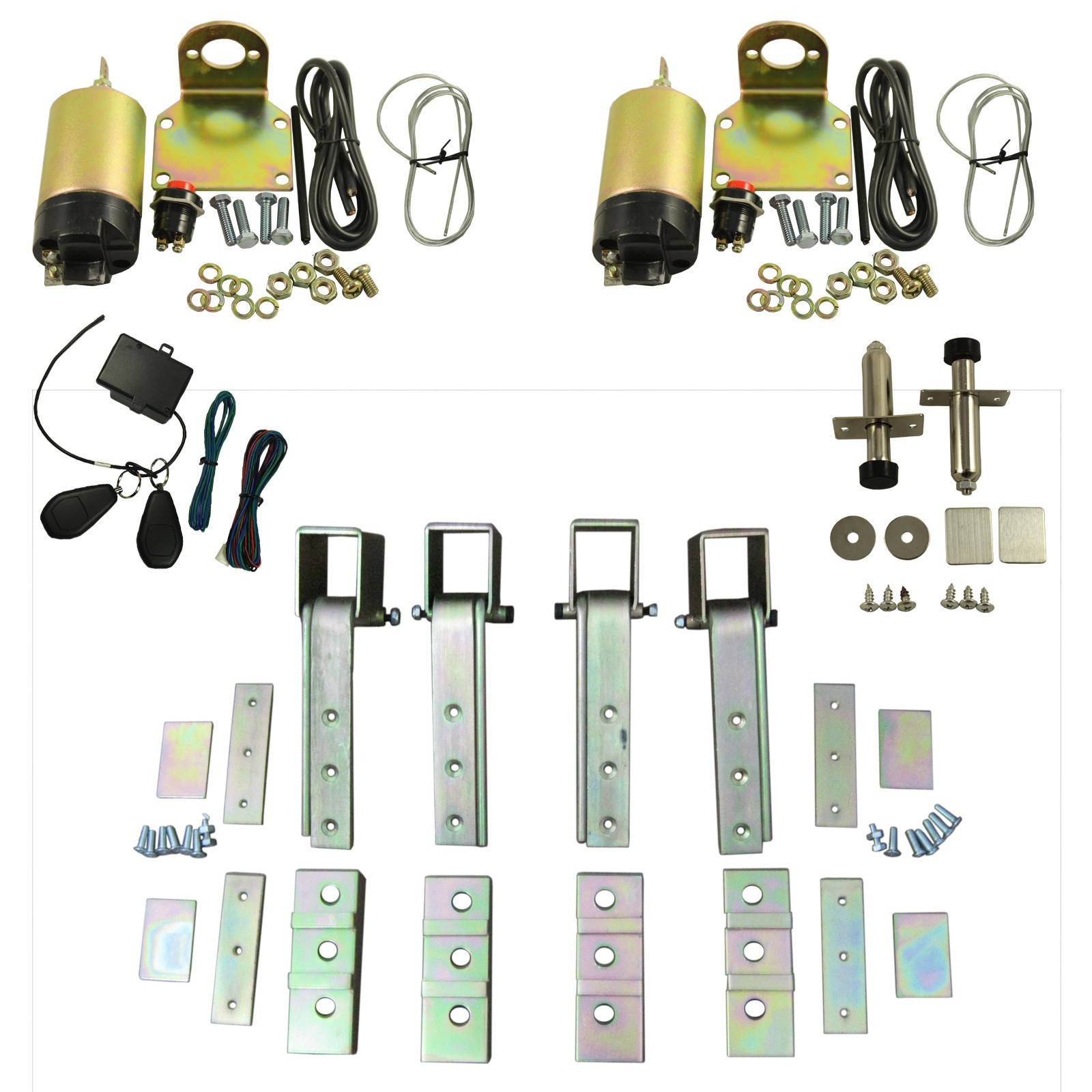

Package includes:
-2* Remote and one control Module
-2* Door Poppers
-2* Solenoid switch kit
-Pair of Suicide Hidden Hinges Kit
Installation:
1. Hold the hinge assembly up to the door jamb section of the
body. Pick a location that is the approximate middle of door
from top to bottom.
IMPORTANT: Keep the hinge assembly as close to the
outer body skin as possible. The edge of the hinge square
should be just up against the step in the jamb post.
Applications will vary, but as a reference, there should be a
maximum of 1/4\" to 3/8\" distance from the outer body skin
to the edge of square cut outs.
IMPORTANT: In order to have the door open level, the
hinge assembly should be perpendicular to the ground. In
some cases, the top hinge may be at a different distance from
the outer door skin than the bottom hinge.
2.Bring the hinge assembly inside the vehicle and match the
square holes with the square hinge tubing. Slide the assembly
forward until the pivot pin is approximately one inch from the
door jamb section of the body. This is a very critical step. This
location of the pivot pin allows the door to push away from
the body as the door swings back.
IMPORTANT: The pivot point rests on the outer body skin
and is kept back approximately 1\" from the door jamb. These
two placements are critical. If this placement is not possible in
your application, locate the hinge as close to it as possible.
3.The swing arms will protrude from the door jamb into the
door in a way that may not be flush with the inner door skin.
If this is the case, it will be necessary to build recessed door
pockets to match the swing arms to the door skin. Hold the
door up to the body and determine the location of the
recessed pocket.
IMPORTANT: At this point, the hinge assembly should only
be welded in place with tack-welds until the door can be
checked for proper operation.
4.If it isn\'t necessary to build recessed door pockets, you may
disregard them and mount the swing arms to the inner door
skin with the supplied backing plates (two provided per side.)
IMPORTANT: Tack-weld the door to the body with the
desired door gap before attaching the swing arm to the inner
door skin. After door has been temporarily attached, push the
swing arm up to the inner door skin from inside the vehicle.
At this point, mark the holes to be drilled for mounting the
door. Slightly over size the mounting holes to allow for future
adjustments. Cut door loose and check swing.
Note that in some applications, the backing plate location
can be switched to the interior side. Payment Delivery details 1-year warranty warning Contact us Payment We only accept PayPal payments from verified accounts with confirmed addresses.
