Product Description:

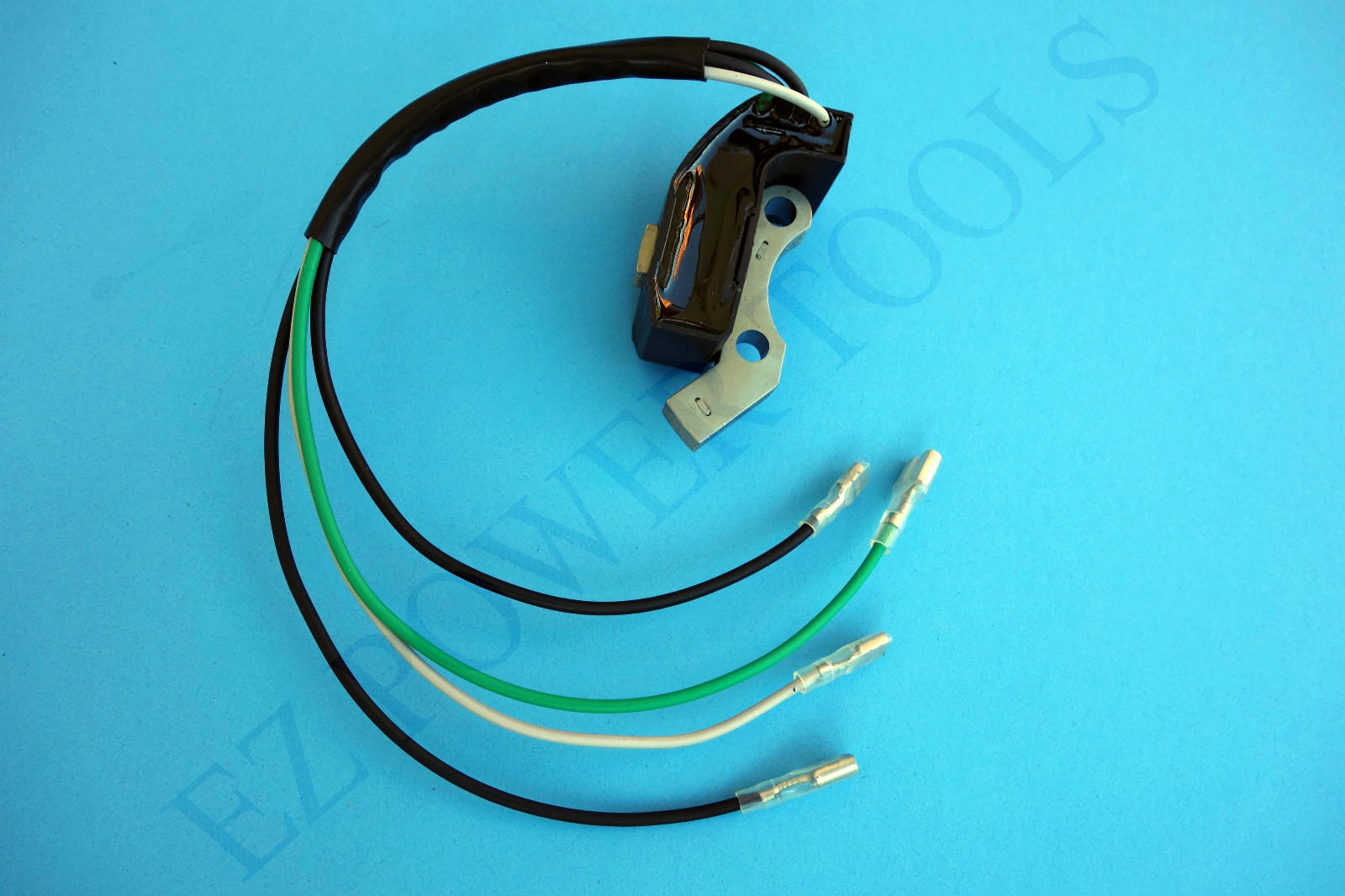

UNIVERSAL Special 4-Wire Magneto Assembly with a Built-in CDI Unit for Handheld Gasoline Generators Powered by a 63CC/64CC 2HP 2-Stroke Engine. It is usually modeled as 600, 650, 900, 950, 1000, 1200 & 1500.Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out ofAtlanta, USAandEDT is about 1 to 3 business daysfor delivery in most areas of continental states.
Packing Contents: 1 X Special 4-Wire Magneto with CDI Module. Special Notes:
1) Either a 4-Wire or 2-Wire magneto assembly with built-in CDI unit is used on handheld gasoline generators powered by a63CC/63.1CC/64CC 2HP 2-Stroke Engine 1E45F. Only one green & one gray wires on our product are used for replacing a 2-wire magneto assembly.
2) Actually, our 4-wire magneto assembly can be directly plugged into you generator per our wiring connections belowno matter whether a separate 6-Wire CDI UNIT is mounted on your generator on not!Please refer to the following wiring connections for help.Wiring Connections:
Green Wire(6.3MM Female Terminal):to Positive Spade Pin of Ignition Coil Assembly
Black Wire(6.3MM Female Terminal):to Negative Spade Pin of Ignition Coil Assembly
Gray Wire(4.8MM Female Terminal):to Engine Stop/Kill Switch
Black Wire(4.8MM Female Terminal):to Engine Stop/Kill Switch
Part Number:
EZ-95003200-CMA.
