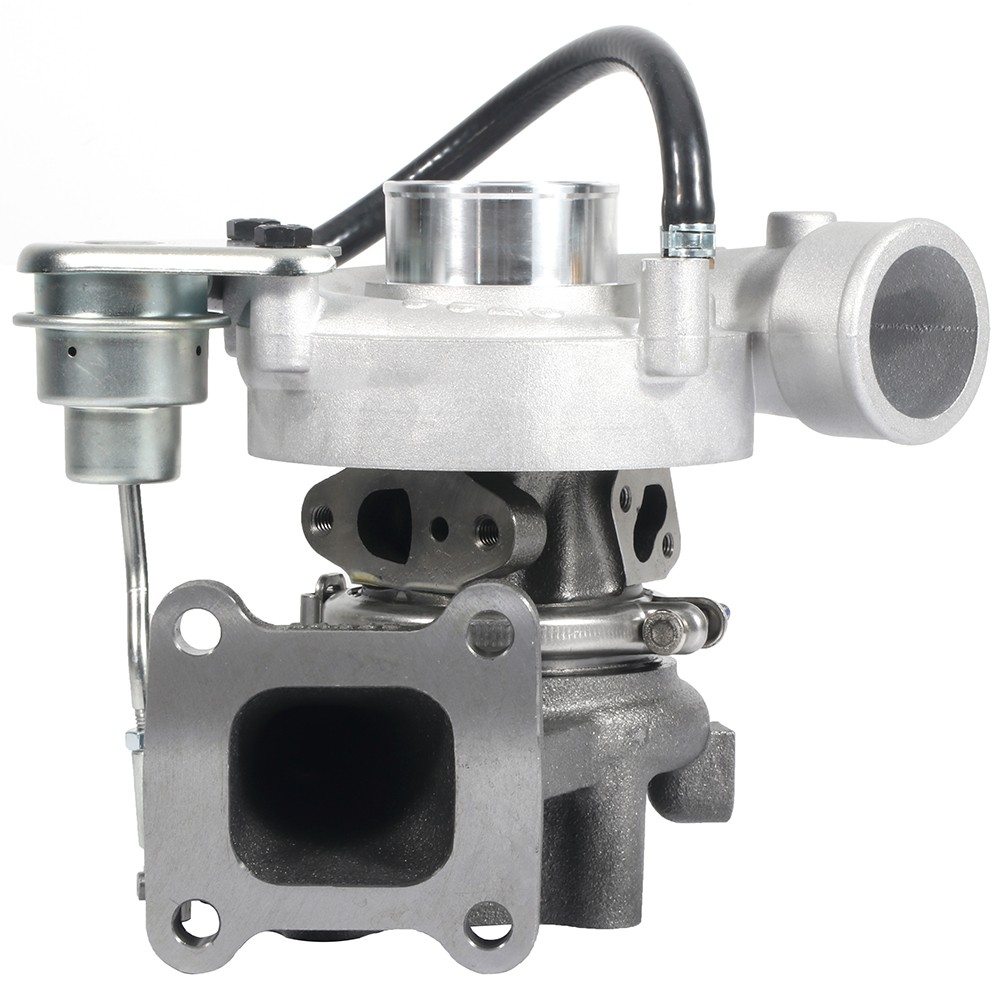

Have You Fixed the Issue That Caused Your Turbocharger to Fail?Turbochargers are designed to last for the service life of the engine. When a turbocharger fails, it is important to look past obvious damage to locate andfix the root cause of the failure. In most cases, the cause of turbocharger failure originates from an installation error, improper vehicle systems, or improper operation of the vehicle, details about which are listed below.LACK OF LUBE / CONTAMINATED OILOften caused by issues related to: Turbocharger for Toyota LANDCRUISER 1985 - 1988 1989 2C67LT -2.4 86 D CT20 Turbo
Have You Fixed the Issue That Caused Your Turbocharger to Fail?
Turbochargers are designed to last for the service life of the engine. When a turbocharger fails, it is important to look past obvious damage to locate andfix the root cause of the failure.
In most cases, the cause of turbocharger failure originates from an installation error, improper vehicle systems, or improper operation of the vehicle, details about which are listed below.
LACK OF LUBE / CONTAMINATED OIL
Often caused by issues related to:
- Low engine oil pressure/level
- Obstructed oil supply/drain line
- Improper weight of oil
- Fast starts in cold weather
- Hot shutdown (engine shut off at high rpm)
- Engine blow-by
HIGH EXHAUST TEMPERATURE
Often caused by issues related to:
- Incorrect fuel ratio (high fuel setting)
- Insufficient air supply (caused by a plugged air cleaner, etc.)
- A leak in the intake manifold or piping
- Excessive exhaust restrictions
- Plugged aftercooler core
FOREIGN BODY IN EXHAUST / AIR INLET
Often caused by foreign particles entering the turbine or compressor stages during or after installation, such as:
- Screws or nuts
- Sand or dirt
- Metal powder or shavings
- Pieces of broken air filters
- Compressor wheel lock nut
DEFECTIVE WORKMANSHIP / MATERIAL
While rare, the visible evidence is often easy to recognize. Causes include:
- Compressor wheel lock nut failure (nut is missing & there is damage to the vanes)
- One-sided wear on the compressor housing
- Back plate bolt is loosened and contacted the back of compressor wheel
Item SpecificsBrand :autoutdoorManufacturer Part Number :UT1610694637DType :TurbochargerManufacturer Warranty :1 YearPlacement on Vehicle :FrontCustom Bundle :YesFitment Type :Direct ReplacementInterchange Part Number :17201-54060Other Part Number :1720154060Superseded Part Number :CT20Package Contents :As the picture showsModified Item :NOOE Spec or Performance/Custom :OE SpecTurbo Model :CT20Engine :2-LTEngine Manufacturer :ToyotaDisplacement :2.4L, 2446 ccmPower :66 KwFuel :Diesel
