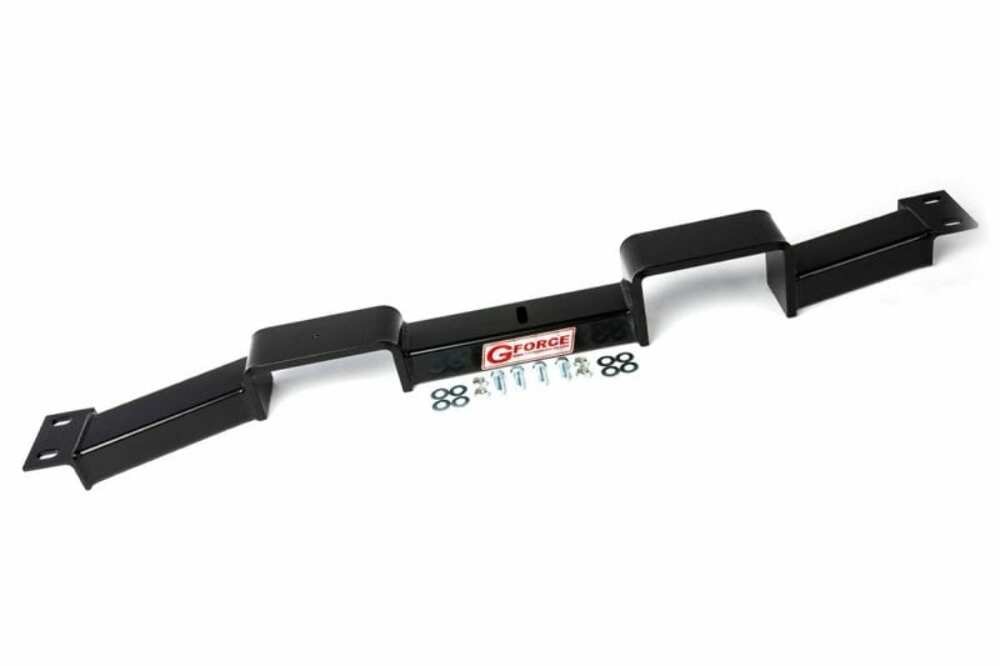

Transmission Crossmember for 1984-1988 Chevrolet El Camino TH400/2004R RCG-400 For Sale - New and Used

Transmission Crossmember for 1984-1988 Chevrolet El Camino TH400/2004R RCG-400

• SKU: RCG-400-GFPP

• Brand: G-Force
• Color: Black
• Condition: New
• MPN: RCG-400
• Material: Steel
• Vintage Part: No
• Country of Origin: United States
• Features: Bolt-On
• Mounting Style: Bolt-On
• Type: Frame Rail Crossmember

Overview:

Transmission Crossmember for 84-88 G Body (RWD) - RCG-400

• Fits Models: GM RWD G-Body; Monte Carlo, El Camino, Cutlass Supreme, Grand Prix, Regal, Caballero, Bonneville
• Fits Years: 1984-1988
• Fits Transmissions: TH400, 2004R
• If you are looking for improved performance check out our lighter weight, next generation of this crossmember, RCG-400NG-BLK.
• We recommend a polyurethane transmission mount. The ParT Number GMTM is sold separately.
• The primary frame change on the 1978-1988 generation of GM G-Body vehicles begins with 1984 models and the implementation of the 2004R transmission which required positioning the crossmember further to the rear of the vehicle. This is evidenced by two sets of frame holes for the crossmember on the driver side of the vehicle.
• Note: Some 1983 Hurst Olds are known to have the 2004R transmission and thus the longer frame rail which does not require the GF-FE100 frame extension that is included in this Kit. Some 1984 El Caminos retained the early frames and do require an GF-FE100 frame extension to run this Buick GNX
• 1984-1987 Buick Grand National
• 1984-1987 Buick Regal
• 1984-1987 Chevrolet El Camino
• 1984-1988 Chevrolet Monte Carlo
• 1984-1987 GMC Caballero
• 1985-1987 Oldsmobile 442
• 1984-1987 Oldsmobile Cutlass Supreme
• 1988 Oldsmobile Cutlass Supreme Classic
• 1984-1986 Pontiac Bonneville
• 1984-1987 Pontiac Grand Prix
• Transmission: Turbo-Hydramatic 400 (TH400 / THM400) or THM200-4R Notes:
  • The RCG-400 is bolted to the rear set of frame holes on the driver’s side frame rail.
  • On some installations it is necessary to remove the catalytic converter heat shield from the passenger side floor pan.
  • For all 78-88 G body crossmembers the passenger side hump is the taller of the two.
  • This generation of vehicle is prone to body bushing compression, even with some southern vehicles. If the floor pan is too close to allow installation, it may be necessary to replace the body bushings. Some customers have reported that with instances where there is slight interference they have been able to gently lift the floor pan with the assistance of a floor jack and a wood cushion to create enough clearance for installation.
  • This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom
  • This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube which has a 1/2″ drain slot that is positioned on the bottom and on the passenger side next to the hump weldment.
  • Some 1983 Hurst Olds are known to have the 2004R transmission and thus the longer frame rail which does not require the GF-FE100 frame extension that is included in this Kit. Some 1984 El Caminos retained the early frames and do require an GF-FE100 frame extension to run this crossmember.
  • To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to G Force
  • Color: Black
  • Country of Origin: United States
  • Finish: Powder Coated
  • Material: Steel
  • Mounting Hardware: Included
  • Weight: 32 lb
  • Part Number: RCG-400






  ---
