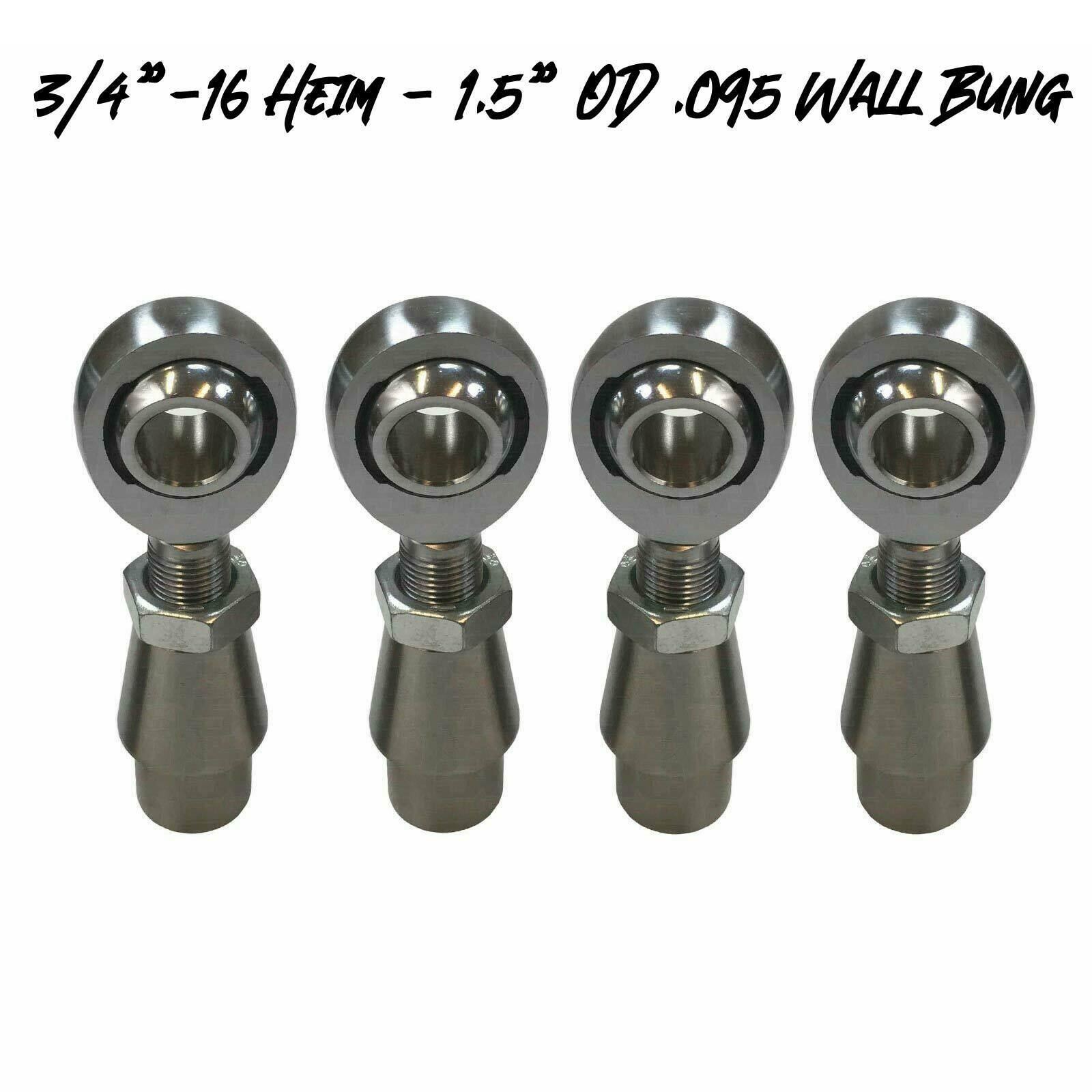

Tie Rod Sway Bar End Link Fab Kit 3/4\"-16 Chromoly Heim Joint 1.5\" OD .095\" Wall For Sale - New and Used

Rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nuts, bungs and high angle misalignment spacers. Designed specifically for 1.5\" OD tubing, with wall thickness of .120. Heim joints are made from 4130 Chromoly steel, with a nylon / Teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and 4 Link radius arms for 4x4s, Jeeps, trucks, sand rails and more. Includes 4 Left hand thread and 4 Right hand thread heim joints, jam nuts, matching bungs. Includes:
50 Caliber Racing Sway Bar End Link Kit - 3/4-16 Chromoly Heim Joint w/ Bung - 1.5\" OD x .095 Wall x 1.31\" ID Round Tubing

• (2) 3/4-16 x 3/4 bore Heim - RH Thread
• (2) 3/4-16 x 3/4 bore Heim - LH Thread
• (2) RH Jam Nut
• (2) LH Jam Nut
• (2) RH Weld in Bung (tubing adapter)
• (2) LH Weld in Bung (tubing adapter)

* Note: Does not include high angle misalignment spacers. They are available separately, contact us for more info.
Specifications
Heim Joints:

• 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
• Static radial load rating: 28,081 lb
• Thread pitch: 3/4\"-16
• Bore: 3/4\"
• Socket end diameter: 1.750\"
• Socket width: .687\"
• Ball width: .875
• Center line length: 2.875\"

Bungs:

• Thread: Female 3/4\"-16
• Material: Chromoly Steel
• Thread Length: Full length
• 1.5\" OD x .095 Wall x 1.31\" ID

Perfect for fabricating custom suspension and steering links for Sand Rails, Hot Rods, Race Cars, 4x4s, Rock Crawlers and more!

• Radius rods
• 4 Link setups
• Panhard bar / Trackbar
• Drag links
• Tie rods
• Sway bar links
• Control arms
• Hi steer
