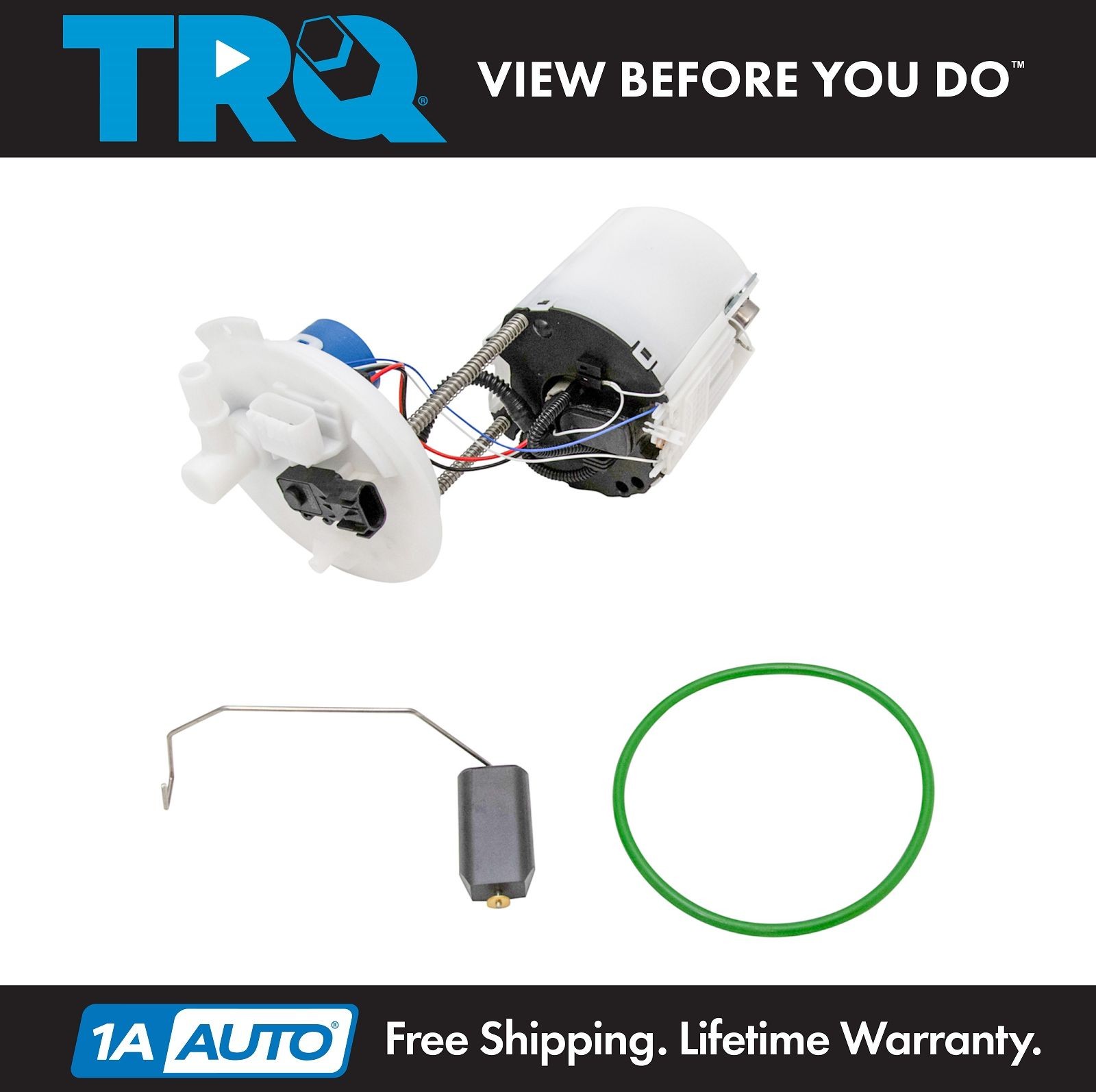

Fuel Pump Module Assembly
2011-2015 Chevrolet Cruze L4 1.4L with 13 Gallon Tank
2016 Chevrolet Cruze Limited L4 1.4L with 13 Gallon Tank Check Fitment for Your Vehicle
2011-2015 Chevrolet Cruze L4 1.4L with 13 Gallon Tank
2016 Chevrolet Cruze Limited L4 1.4L with 13 Gallon Tank
Verify exact fit by year, make, model, and options.
What’s in the Box
Product Attributes Inlet Quantity: 0
Outlet Quantity: 1
Minimum Flow Rating: 18 gph
Average Flow Rating: 22 gph
Resistance Ohms Empty: 250 Ohms
Maximum Flow Rating: 26.42 gph
Resistance Ohms Full: 40 Ohms
Minimum Pressure: 85.5 PSI
Maximum Pressure: 89 PSI
Outlet Outside Diameter: 9.49 mm
Pump Type: Electric
Fuel Type: Gas
In Tank or External: In Tank
Wire Harness Included: No
Lock Ring Included: No
Outlet Type: Quick Connect
Inlet Type: Strainer
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: Yes
Gasket Or Seal Included: Yes
Strainer Included: Yes Reference Numbers
ACDelco: M100035
Agility Autoparts: 4011069
Airtex Fuel Pumps: E4033M
Airtex: E4033M
Carter: P76788M
Chevrolet: 13580532
Delphi: FG1737
General Motors: 13580532
Hollander: 323-01968
Spectra Premium: SP4079M
US Motor Works: USEP4033M Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
