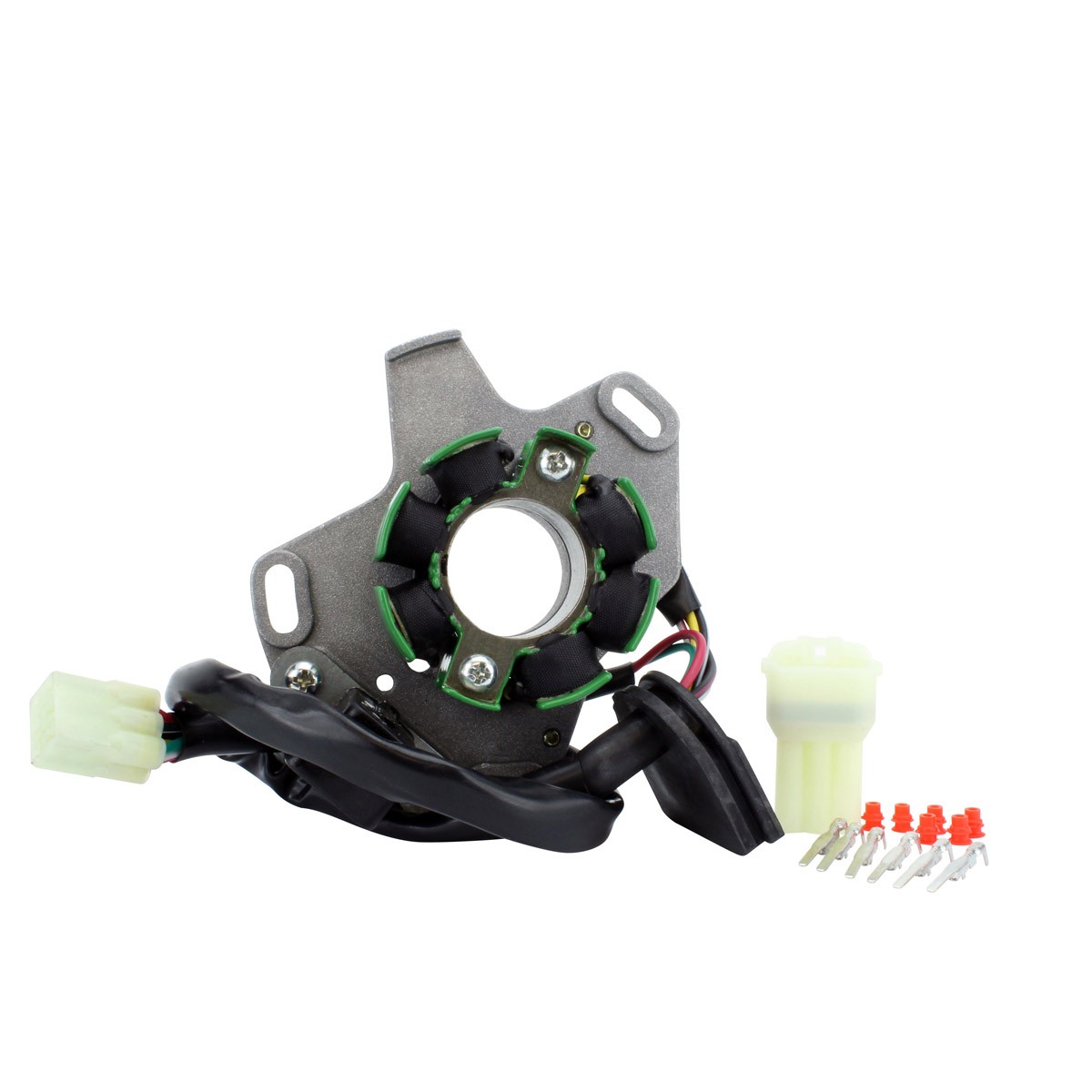

Stator for Suzuki RM 125 2005-2008 | OEM Repl.# 32101-36F30 KEY FEATURES
Brand new aftermarket stator
Plug-and-play unit, direct fit, easy to install
Highest grade copper windings, resistant to 200 degrees Celsius
All products shipped are condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Vehicle models fitment
Suzuki RM 125 -- 2001-2008
OEM part :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 12 mm
Length of wires stator to grommet : 15 mm
Length of wires grommet to plug : 530 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black/White = 0.4 ohms +-20%
Pickup : Red to Green = 100 ohms +-20%
Source : Black/Red to Red/White = 32 ohms installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010\'\'.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
