High Heating Output: Experience comfort with a 20,000 BTU heater, perfect for warming up on cold mornings in any water-cooled vehicle, from street rods to custom builds., Compact & Efficient Design: Space-saving 9.5\" x 6.5\" x 4.5\" heater fits neatly under the dash, with a depth of 8” from the front grille to the back of the motor, ensuring easy installation in tight spaces., Versatile Fan Settings: Equipped with a 2-speed, 12-volt fan, this heater adjusts easily to your comfort level, making it ideal for varied climate conditions., Directional Air Flow: Features an adjustable louver that allows you to direct the flow of hot air where it\'s needed most, enhancing the heater\'s effectiveness and your comfort., Easy Installation: Comes with rear exit hose connections and 5/8\" male fittings for Street Rod Heater, 12 Volt 20,000 BTU, Universal for Hot Rods Sku # 910454 Mfr. Part # 910454 Condition New Brand Speedway Motors Sold Each Details

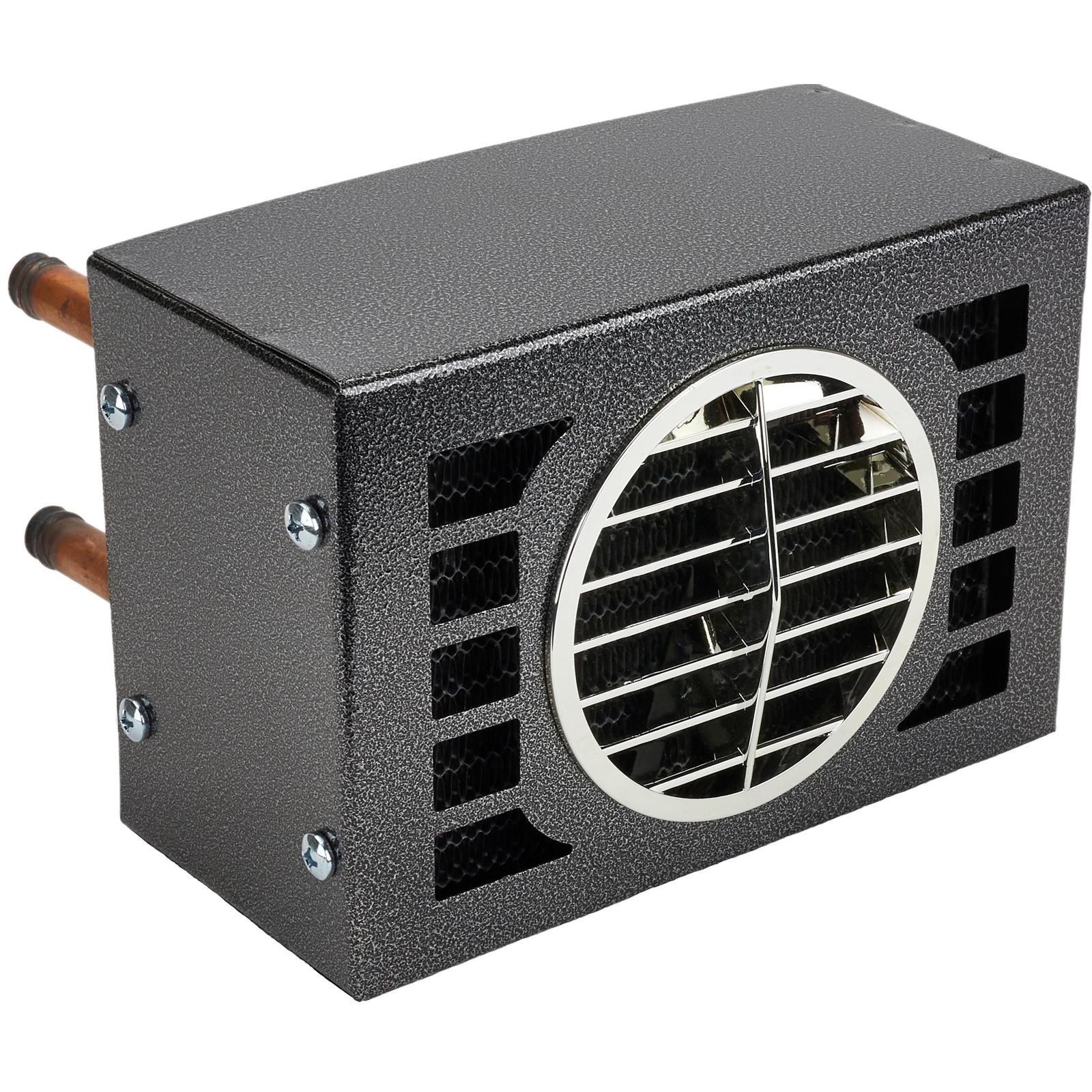

These all new universal street rod heaters give you the option of heat in your custom ride with the ease of installation. They feature a compact size, two-speed fan, and rear fan guard.
- 9-1/2\" x 6-1/2\" x 4-1/2\" box dimensions
- 8” deep overall (from front of chrome grille to back of motor)
- 4-1/2” box depth (not including front grille or motor)
- Front grille protrudes 1/2” forward from face of box
- Motor protrudes 3” rearward from back of box
- Adjustable louver to direct heat flow
- 12V 20,000 BTU heater
- Has rear exit hose connections for convenient mounting
- 5/8\" male connections for use with 5/8\" ID heater hose
- 2-Speed fan (red wire high speed - orange wire low speed)
Specs MFG. Part # 910454 Overall Width 9.50" Overall Height 6.5" Depth 8" Voltage 12 volts Sold in Quantity Each Notes C-C Outlets tubes: 3 inches Reviews First class heater Rated by Mikey on February 19, 2026
Summary: The heater is compact and includes all the parts necessary to hook it up other than heater hoses.It works like a dream and includes a 2 speed fan.
Yes, I recommend this product.
I would not buy it again Rated by Sir on January 26, 2025
Summary: Heater for a 1958 GMC. It's sturdy and works fine. But the fan on high is way too loud and the wiring diagram is wrong and the supplied hi-lo switch can't be mounted unless you have a drill that cuts rectangles. For 2 bills I expected better.
No, I would not recommend this product.
THE SERVICE WAS GREAT. PLEASANT PHONE EXPERIENCE IN ORDERI Rated by PAPA on December 12, 2023
Summary: ONLY THINGS WERE: HAD TO MAKE A MOUNTING PLATE BECAUSE THE MOTOR PROTRUDED OUT FURTHER THAN THE MOUNTING LEGS. THE SWITCH DIDN'T FIT THE MOUNTING PLATE SO I USED MY OWN SWITCH. ALL WORKS GREAT . NICE TO HAVE HEAT!!
Yes, I recommend this product.
I WOULD BUY THIS AGAIN FOR SURE Rated by PHIL on January 11, 2022
Summary: GREAT HEATER, EASY HOOK UP
heater assembly Rated by JC on May 13, 2021
Summary: Installed in a 1951 Ford F1. Mounts effortlessy. Works perfectly
Yes, I recommend this product.
