Mercedes-Benz applications
Read this first: the wheel decides, not the car. The ball seat radius is machined into the wheel, so two identical cars can need different bolts depending on what wheels are bolted to them. This bolt is for wheels that call for an R14 ball seat on an M12x1.5 hub thread at 26mm shank. Confirm both before ordering.
This is a hybrid bolt. Mercedes never built this exact combination. Factory bolts pair an M12x1.5 thread with an R12 or R13 ball seat on the older cars, and pair the larger R14 ball seat with an M14x1.5 thread on the newer ones. This bolt puts the R14 seat on an M12x1.5 shank, which is what lets you run later R14 seat wheels on an earlier Mercedes hub. There is no Mercedes OE part number for it because it does not exist as a factory part.
Your hub: M12x1.5 thread Your wheels: R14 ball seat Mercedes-Benz chassis commonly running an M12x1.5 wheel bolt thread:R107 SL and SLC
W123 sedan, coupe and wagon
W124 E-Class and 300E
W126 S-Class
W140 S-Class
W201 190E and 190D
R129 SL
W202 C-Class
W203 C-Class
W208 CLK
W209 CLK
W210 E-Class Later Mercedes and AMG wheels typically machined for the larger R14 seat:W211 E-Class, E55 AMG and E63 AMG
W219 CLS and CLS55 / CLS63
W221 S-Class
W164 ML
W203 and W209 AMG wheels
AMG replica and staggered wheel sets sold for these cars
The application this solves. You have a later Mercedes wheel machined for an R14 ball seat and you want it on an earlier Mercedes running M12x1.5 hub threads. A factory R12 or R13 bolt sitting in an R14 pocket contacts on too small a radius. That is the classic cause of a wheel that will not stop vibrating and of bolts that will not stay torqued no matter how many times you re-check them. This bolt matches the R14 pocket correctly while still threading into the M12x1.5 hub.

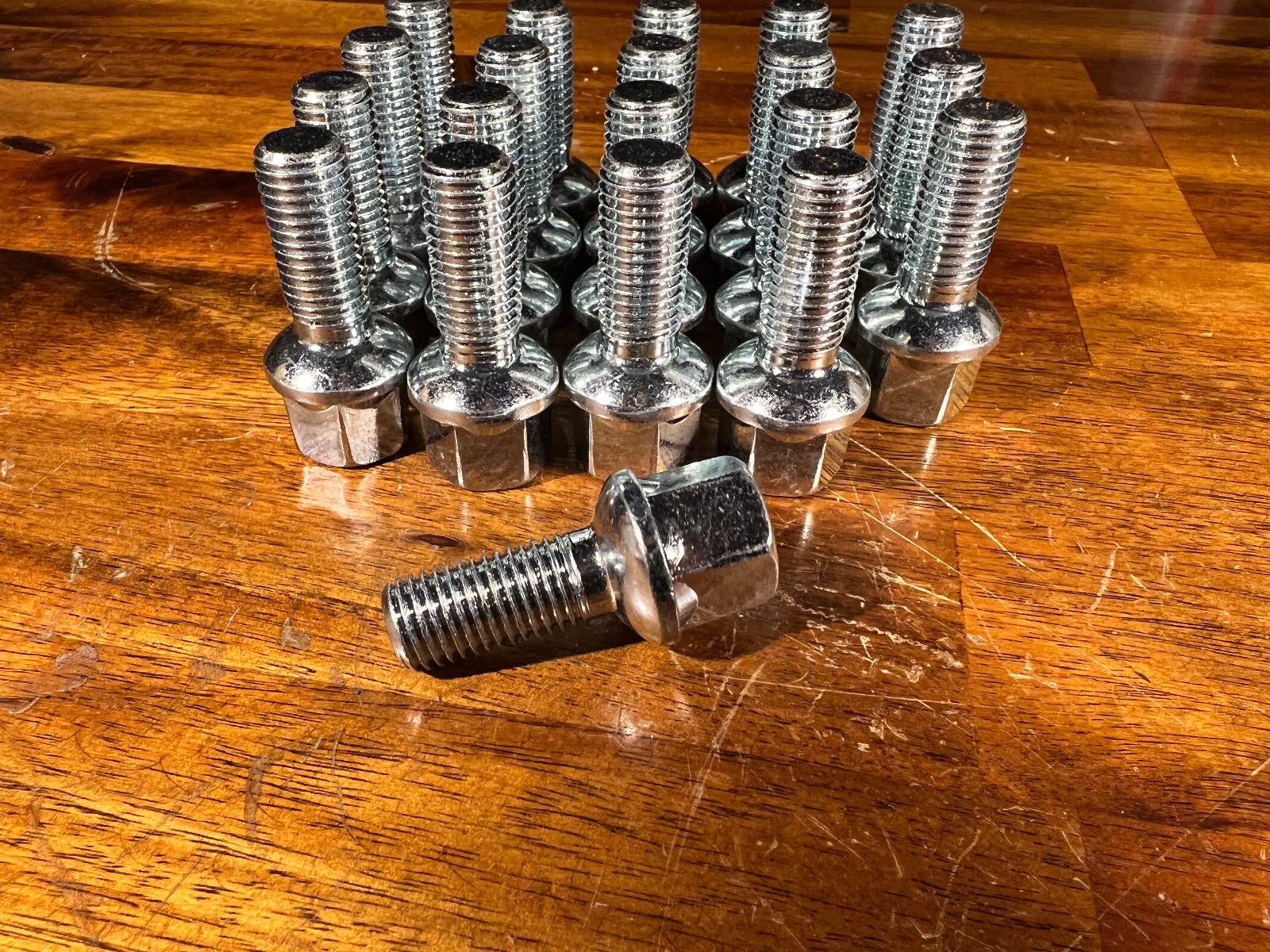

It is also a straight dimensional replacement anywhere a wheel and hub combination calls for M12x1.5, R14 ball seat, 26mm shank and 17mm hex.
These lists are a guide, not a fitment guarantee. Mercedes changed specifications within model runs and across markets, and aftermarket and replica wheels vary widely. Measure your existing bolt and check your wheel seat radius before ordering, or message us through with your chassis and your wheel details and we will confirm it for you.
Other names for this part
This part is sold and searched under a number of names. It is the same bolt. Wheel bolt, lug bolt, rim bolt, wheel screw, radius seat bolt, ball seat bolt, spherical seat bolt, hybrid lug bolt, R14 bolt, RAD14, radius 14 bolt, and in German market listings Radschraube or Kugelbund.
The thread is written as M12x1.5, 12x1.5, 12mm x 1.5, or 12 x 1.50 pitch. The hex is written as 17mm hex, hex 17, or SW17. In inches the shank is roughly 1.02 inches and overall length is roughly 1.79 inches. Quantities: 16 bolts for a 4-lug car, 20 for a 5-lug, 24 for a 6-lug. Mercedes bolt patterns on these applications are commonly 5x112 and 5x130.
