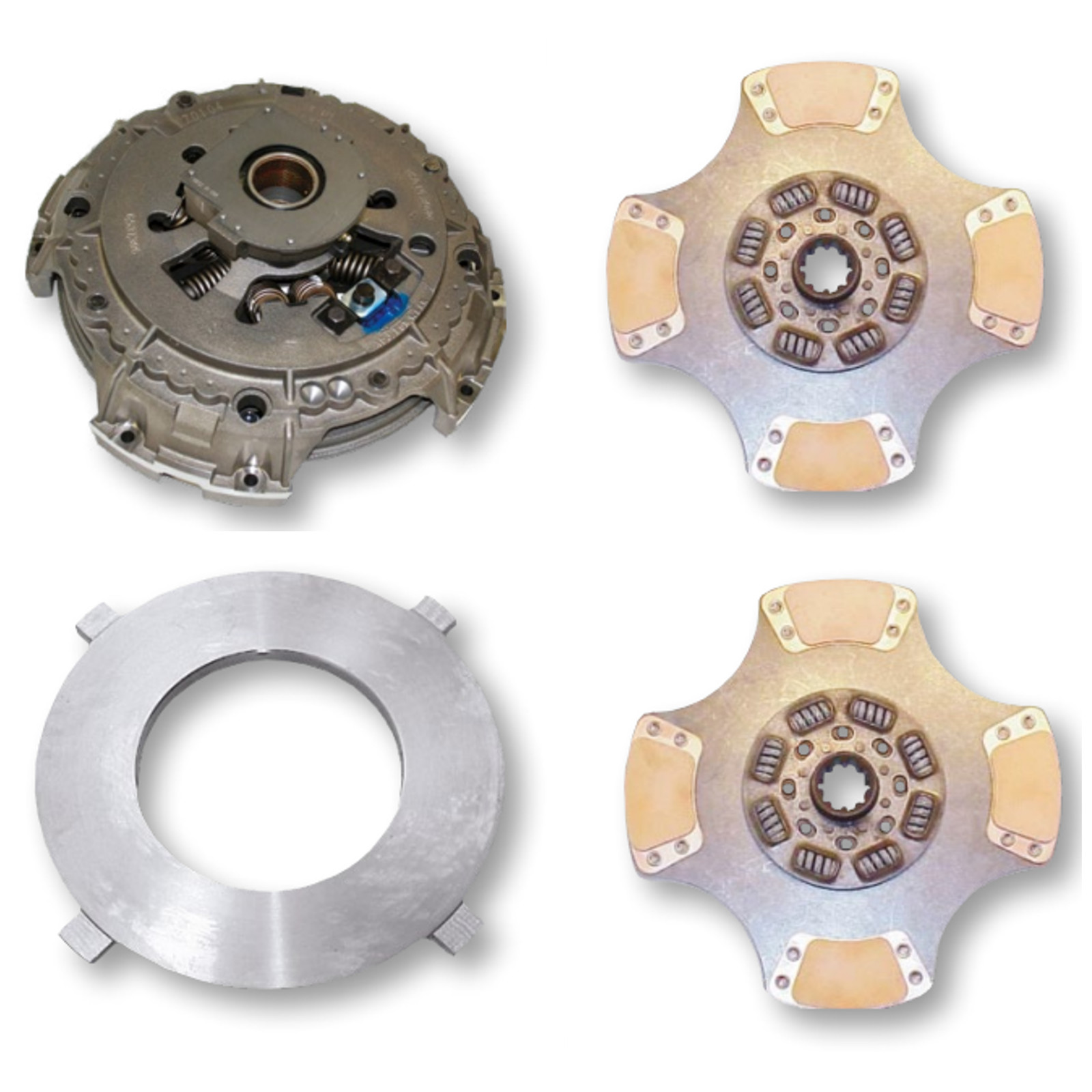

Road Choice 15 1/2" x 2" Heavy-Duty Dual Disc Clutch Kit Replaces 108391-81 | 8 Spring PAD - EZ Pedal ™Built for the long haul, this 15.5" EZ Pedal clutch reduces leg effort by 25% while delivering a massive 1400 ft-lbs of torque. Featuring a ceramic 8-spring, 4-pad disc for 2" shafts, it’s a direct replacement for Eaton 108391-81AM. 100% new with cryogenically treated springs for maximum durability Key Features EZ Pedal Technology: Patented design reduces required leg effort by 25% for a softer pedal feel in traffic Heavy-Duty Torque Capacity: Rated for 1400 ft-lbs with a 3600 lb plate load for demanding drivetrain loads Ceramic 4-Pad Friction: Sintered copper material provides a high coefficient of friction (COF) for low wear Cryogenically Treated Steel: Valve-quality springs eliminate failure and significantly extend clutch service life Full Warranty Support: Backed by a 2-year unlimited mile warranty and manufactured in the United States Specifications Product Line: Transmission Category Name: Clutch Components Part Type: Clutch Assembly Alternate Part Name: Clutch Assemblies, Heavy Duty Clutch Assembly OEM Part Number: 10839181 Application Type: Heavy Duty Trucks Clutch Diameter: 15-1/2 in. Flywheel Bore Diameter: 7 in. Spline Count: 10 Spline Diameter: 2 in. Material: Steel, Ceramic Pad Adjustment System: Manual Clutch Technology: EZ Pedal ™ (Easy Pedal) Disc Facing Material: Ceramic Disc Paddle Type: 4 Disc Spring Quantity: 8 Pressure Plate Clamp Load: 3.600 lb. Torque Rating: 1400 ft-lb Transmission Type: Manual Net Weight: 132 lb. Intended Application Compatible with Class 7-8 heavy-duty trucks equipped with non-synchronized manual transmissions using 15.5 in. x 2 in. Dual Disc clutches with 2 in.-10 Spline Hub configuration and a 7.00 in. flywheel bore. Designed for high-torque applications requiring a 4-Paddle, 8 Spring ceramic clutch with manual adjustment. Commonly used on Eaton Fuller drive train platforms and equivalent configurations where mechanical release and clutch brake systems are used. Flywheel diameter, number of input shaft splines, and torque capacity must be verified before installation to ensure proper compatibility.Always compare with your OEM part number prior to purchase to confirm full compatibility. Cross-references 10709181B, 10839181AM, 10839181M0, 10839181MO, 755NC154081E, CCA-9736, CCA9736, CLU10839181, CLU20839181, EP10839181, MAF-108391-81, MAF10839181, MU127597DSCB, MU155597DSCB, N10709181, N10839181, NMU5970244, NMU5970944, NMU7050944, NMU8980944 Road Choice 15 1/2" x 2" Heavy-Duty Dual Disc Clutch Kit Replaces 108391-81 | 8 Spring PAD - EZ Pedal ™
Built for the long haul, this 15.5" EZ Pedal clutch reduces leg effort by 25% while delivering a massive 1400 ft-lbs of torque. Featuring a ceramic 8-spring, 4-pad disc for 2" shafts, it’s a direct replacement for Eaton 108391-81AM. 100% new with cryogenically treated springs for maximum durability
Key Features
- EZ Pedal Technology: Patented design reduces required leg effort by 25% for a softer pedal feel in traffic
- Heavy-Duty Torque Capacity: Rated for 1400 ft-lbs with a 3600 lb plate load for demanding drivetrain loads
- Ceramic 4-Pad Friction: Sintered copper material provides a high coefficient of friction (COF) for low wear
- Cryogenically Treated Steel: Valve-quality springs eliminate failure and significantly extend clutch service life
- Full Warranty Support: Backed by a 2-year unlimited mile warranty and manufactured in the United Line: Transmission
- Category Name: Clutch Components
- Part Type: Clutch Assembly
- Alternate Part Name: Clutch Assemblies, Heavy Duty Clutch Assembly
- OEM Part Number: 10839181
- Application Type: Heavy Duty Trucks
- Clutch Diameter: 15-1/2 in.
- Flywheel Bore Diameter: 7 in.
- Spline Count: 10
- Spline Diameter: 2 in.
- Material: Steel, Ceramic Pad
- Adjustment System: Manual
- Clutch Technology: EZ Pedal ™ (Easy Pedal)
- Disc Facing Material: Ceramic
- Disc Paddle Type: 4
- Disc Spring Quantity: 8
- Pressure Plate Clamp Load: 3.600 lb.
- Torque Rating: 1400 ft-lb
- Transmission Type: Manual
- Net Weight: 132 lb.
Intended Application
- Compatible with Class 7-8 heavy-duty trucks equipped with non-synchronized manual transmissions using 15.5 in. x 2 in. Dual Disc clutches with 2 in.-10 Spline Hub configuration and a 7.00 in. flywheel bore. Designed for high-torque applications requiring a 4-Paddle, 8 Spring ceramic clutch with manual adjustment. Commonly uséd on Eaton Fuller drive train platforms and equivalent configurations where mechanical release and clutch brake systems are uséd. Flywheel diameter, number of input shaft splines, and torque capacity must be verified before installation to ensure proper compatibility.
- Always compare with your OEM part number prior to purchase to confirm full 10839181AM, 10839181M0, 10839181MO, 755NC154081E, CCA-9736, CCA9736, CLU10839181, CLU20839181, EP10839181, MAF-108391-81, MAF10839181, MU127597DSCB, MU155597DSCB, N10709181, N10839181, NMU5970244, NMU5970944, NMU7050944, NMU8980944
×
