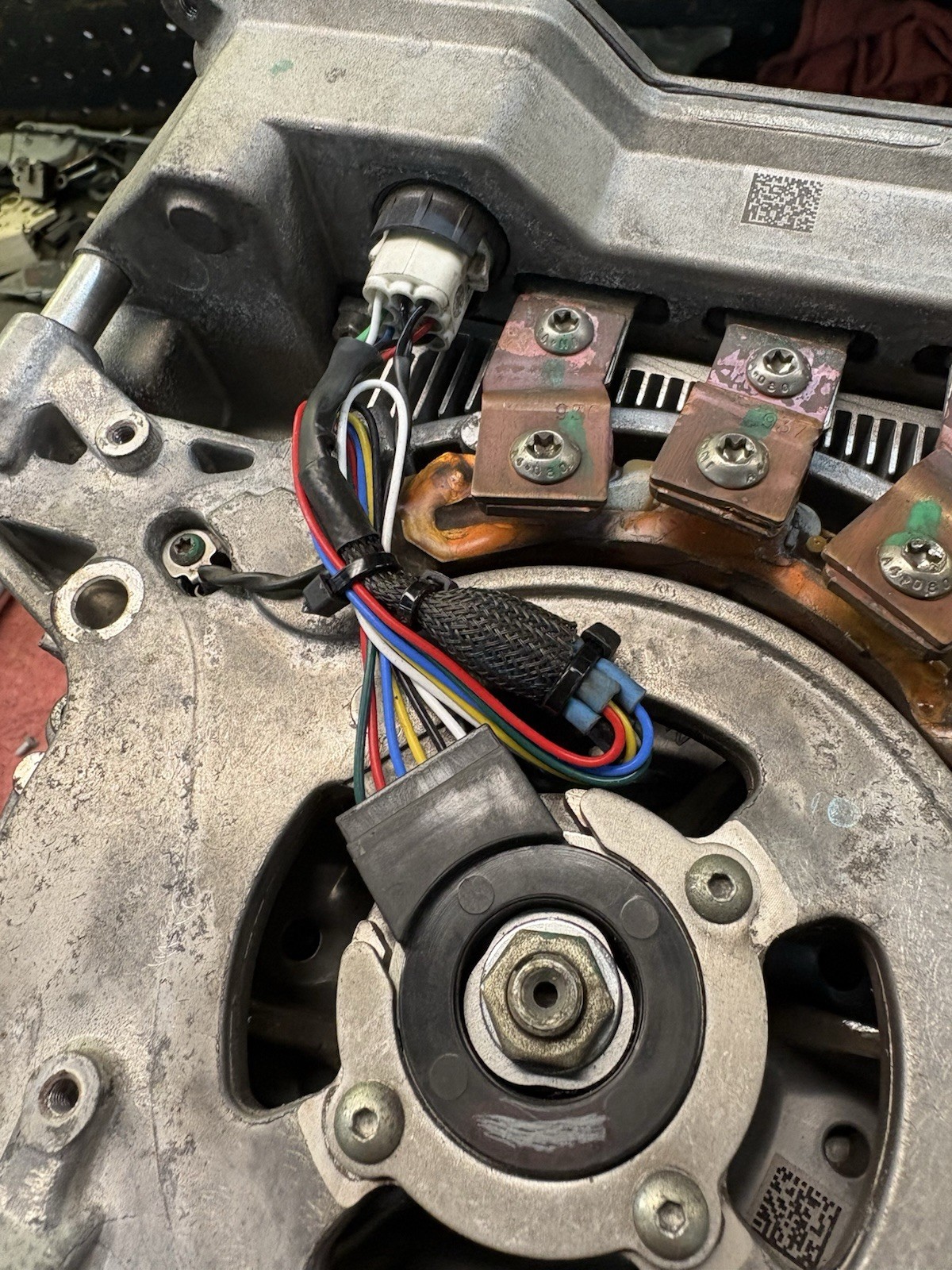

Upgraded 48V eTorque Resolver – Sealed / Moisture-Resistant Design – Ram 1500 5.7L HEMI
Upgraded replacement resolver for compatible Ram 1500 5.7L HEMI eTorque 48V systems using the matching 3-lobe resolver configuration.
This replacement features an improved sealed design intended to provide better protection against moisture, condensation, dirt, and corrosion compared with the original-style resolver.
Features
* Upgraded aftermarket replacement resolver
* Designed for compatible Ram 1500 5.7L HEMI eTorque 48V applications
* Correct 3-lobe resolver configuration
* Improved sealed construction
* Helps protect sensitive internal components from moisture and contamination
* Allows the resolver itself to be replaced instead of replacing the complete eTorque motor/generator assembly
* Ideal for repairing an eTorque unit with a failed or damaged resolver
Connector / Installation Information
This resolver does not come with the original factory connector installed.
The factory connector from the original resolver must be reused using one of the following installation methods:
* Depin the original connector and transfer it to the replacement resolver wiring, or
* Cut and solder the wires together, then properly seal each connection using quality heat-shrink tubing.
IMPORTANT WIRING NOTE
You may notice that the wire colors on the replacement resolver are not physically arranged in the exact same order as the wires on your original resolver. This is normal.
The wire colors correspond to the same connections/functions as the factory wiring.
Do not assume the wires should be connected based only on the position they come out of the resolver. Match each replacement wire color to the corresponding same-color factory wire.
For example, match the replacement wire to the same color wire on the original/factory harness, even if that color appears in a different physical position on the new resolver.
Take note of the factory connector arrangement before depinning or cutting any wires, and verify all connections before reassembly.
Proper wiring, soldering, and sealing are important for reliable operation.
Why Replace the Resolver?
The resolver monitors the rotational position of the eTorque motor/generator. A failed or damaged resolver can cause eTorque-related faults and system problems.
Replacing the resolver can be a much more economical repair option than replacing the complete eTorque motor/generator assembly.
The upgraded sealed construction also provides additional protection against moisture and contamination.
IMPORTANT FITMENT INFORMATION
Please compare your original resolver, wiring, connector, and rotor configuration with the listing photos before ordering.
This part is intended for applications using the matching 3-lobe resolver rotor/setup. Components may vary by vehicle year and application, so compatibility should be verified before purchase.
This is not a direct plug-and-play part. The original connector must be transferred or the wiring must be properly spliced and sealed during installation.
Professional installation is recommended for anyone who is not experienced with connector depinning, soldering, electrical repair, or eTorque system disassembly.
This is an aftermarket replacement component and is not manufactured, sponsored, or endorsed by Ram, Dodge, Stellantis, or Mopar.
If you are unsure whether this resolver matches your eTorque unit, please message before ordering.
Patent pending
