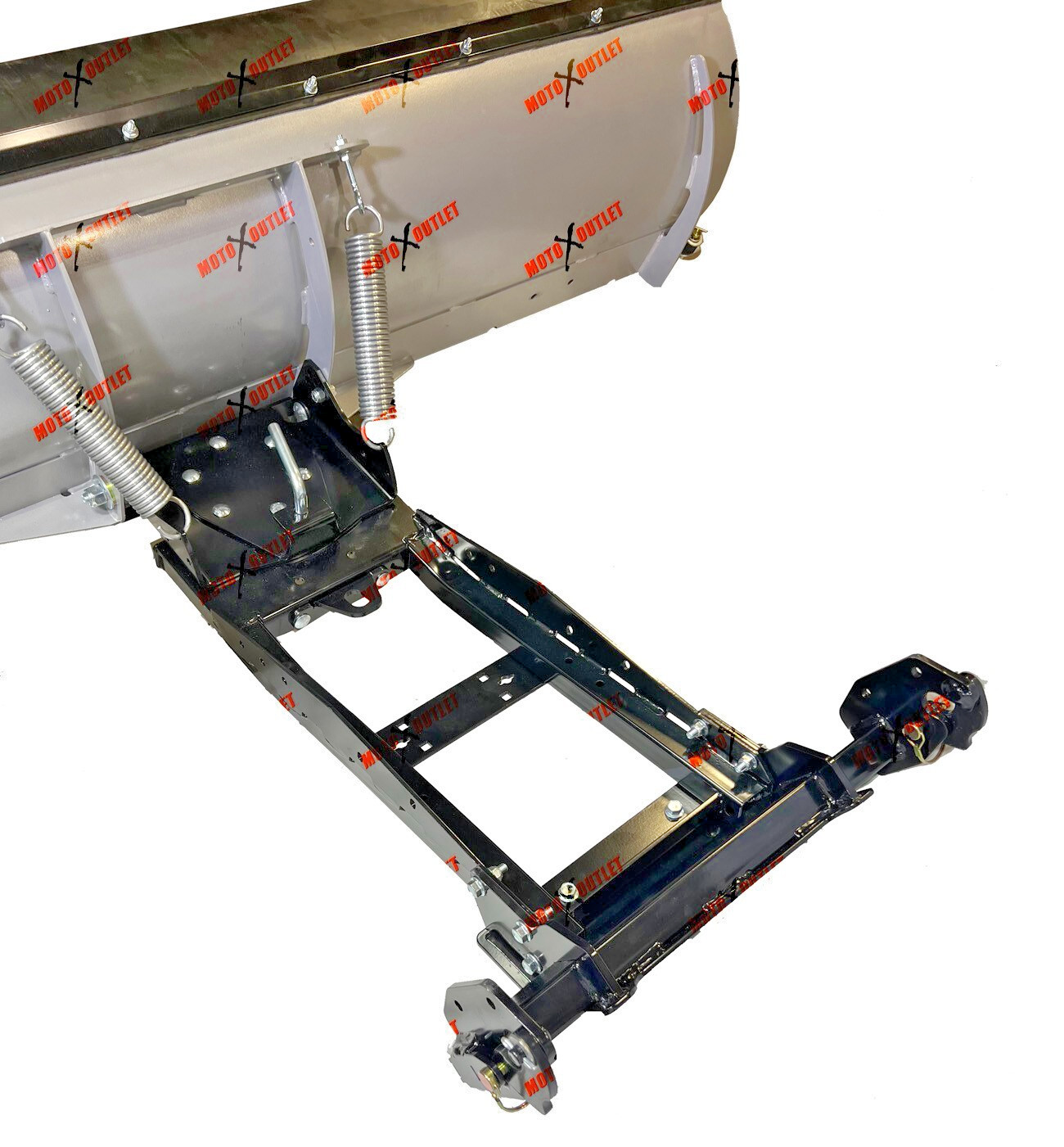

Polaris Ranger 1000 XP Snow Plow Kit 72\" Blade Package KFI Fit OEM Glacier Mount For Sale - New and Used

Polaris 1000 Ranger XP Snow Plow Kit 72\" Blade UTV
Fitment
Polaris Ranger XP 1000 2018-2026Polaris Ranger XP 1000 Crew 2019-2026Polaris Ranger XP 1000 North Star Edition 2018-2026Polaris Ranger XP 1000 Crew North Star Edition 2019-2026Polaris Ranger XP 1000 Premium 2018-2026Polaris Ranger XP 1000 Crew Premium 2018-2026Polaris Ranger XP 1000 Crew North Star Edition 2019-2026Polaris Ranger XP 1000 Texas Edition 2020-2021Polaris Ranger XP 1000 Crew Texas Edition 2020-2026
Polaris Ranger 1000 2018-2026 With Glacier BumperPolaris Ranger 1000 Crew 2018-2026 With Glacier BumperKFI - Open Trail Front Mount Snow Plow Includes72\" Blade -10-5072Push Tube - 10-63002.0 Glacier Adapter - 10-6345
Plow kit includes instructions and all hardware needed for installation.Winch required to raise and lower plow (soldseparately)
Designed for the following “stock” Full-Size Polaris Rangers with the Glacier Bumper already installed.
Mid-Size Polaris Machines (unless modified) are too low to use the current Glacier Adapters properly.
The 106345 mounts are ONLY compatible with Pro 2.0 Square Push Tubes (Part # 106300)
The glacier bar height is critical,The optimal height of the 106345Glacier Adapter mounting location should be 14” from the ground (+/- 1 Inch)

Improper geometry can lead to a bad blade angle and/or force being applied incorrectly.
This mount is not recommended for use with Tracks, or Over Size Tires!!!

Straight Blade Specifications:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66\" & 72\" blades include a 7\" high 2-ply top rubber flap
• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3\"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16\" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coatedMetallic Silver for supreme durability
• 2-Sided 3/16\" x 3.00\" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• 2-Year KFI Warranty

UTV Push Tube Specifications:

• Front Mount Design with 30\"+ of lift height
• 100% MADE IN USA
• Heavy Duty 1-1/2\" 11 Gage Steel Tubing
• Heavy Duty 1/4\" Thick 1-1/2\" Diameter Grade 50 Pivot Bushings
• 6\" Diameter Zinc Plated Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees
• Fully-adjustable blade skids with bolt-on brackets
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• 2-Year KFI Warranty

2.0 Glacier Adapter

• 100% MADE IN USA
• Front-Mount System
• Plate constructed from 3/16\" Grade 50 Steel
• All Pin Tabs are constructed from 1/4\" Thick Grade 50 Steel

Polaris Ranger XP 1000 Snow Plow Package 72\" Blade UTV Glacier Adapter

---
