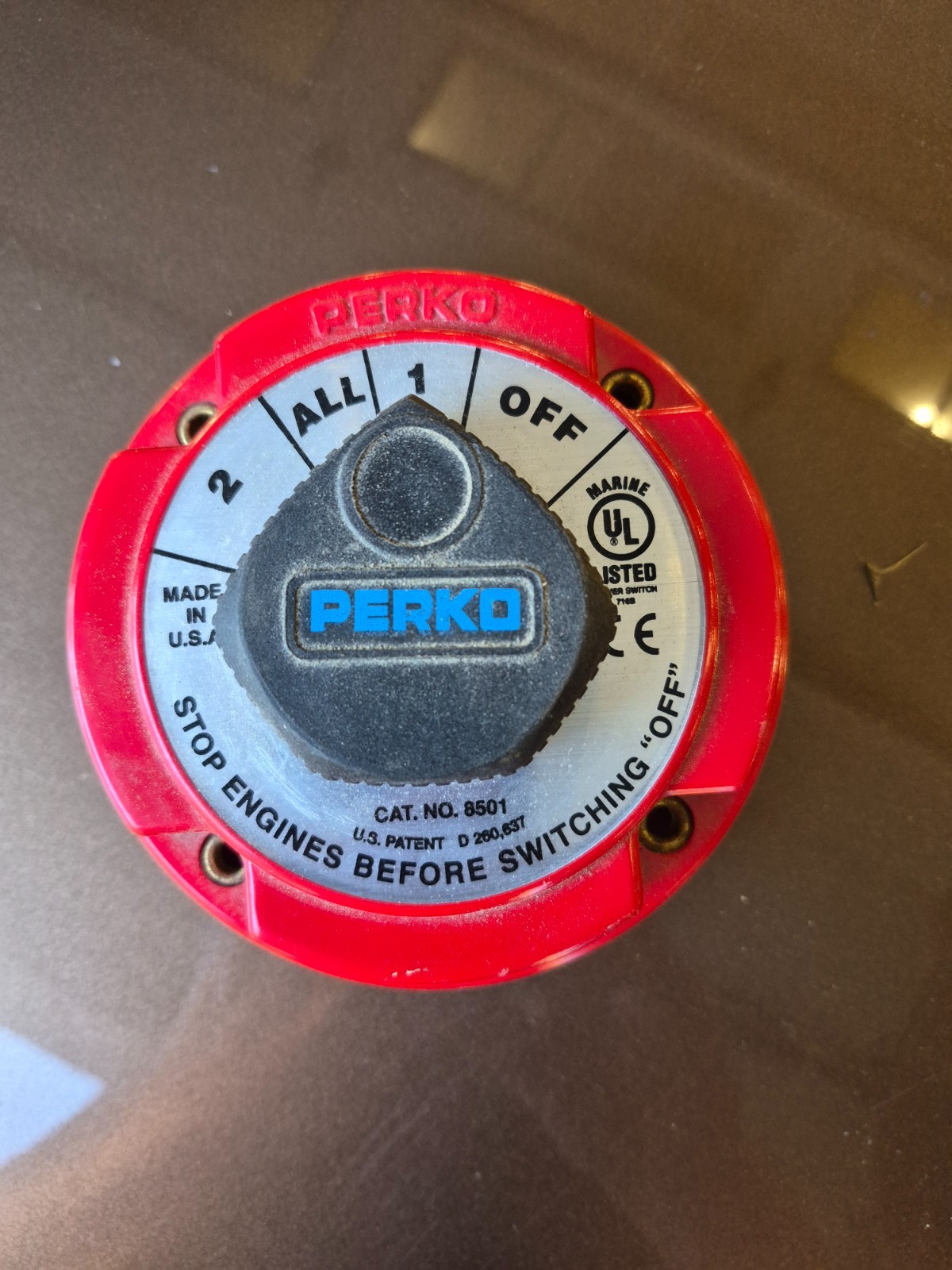

PERKO 8501DP Battery Selector Switch 250A 6-32V Marine Boat Made in USA:
$40.00
This new item I\'ve had for a few years and never used
A tried and true design for a wide variety of applications.
Perko’s medium duty battery disconnect switches are super versatile. Because they are ignition protected, this switch can be installed almost anywhere, including engine rooms of gasoline powered boats. Compatible with 6V to 32V systems.
Key Features
- Make before break feature allows switching between “1” “All” and “2” while the engine is running
- Fiber reinforced polycarbonate construction
- Easy turn knob
- Ignition protected
Specifications
- Switch Type: Dual Battery switch disconnect
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: no
- Maximum Voltage: 6V-32V
- Continuous Rating: 250
- Intermittent Rating (duration): 360A
- Cranking Rating (30Sec): N/A
- Battery Inputs: 2
- Cable Size to meet ratings: N/A
- Mounting Holes: # 10 Screws
- Terminal Stud size: 5/16\"
- Dimensions: 5 ¼\"dia x 2 5/8\" D
- Weight: 1 Lb. (estimated)
- Approvals: UL Listed, CE, UKCA Certification
- Made in The USA
