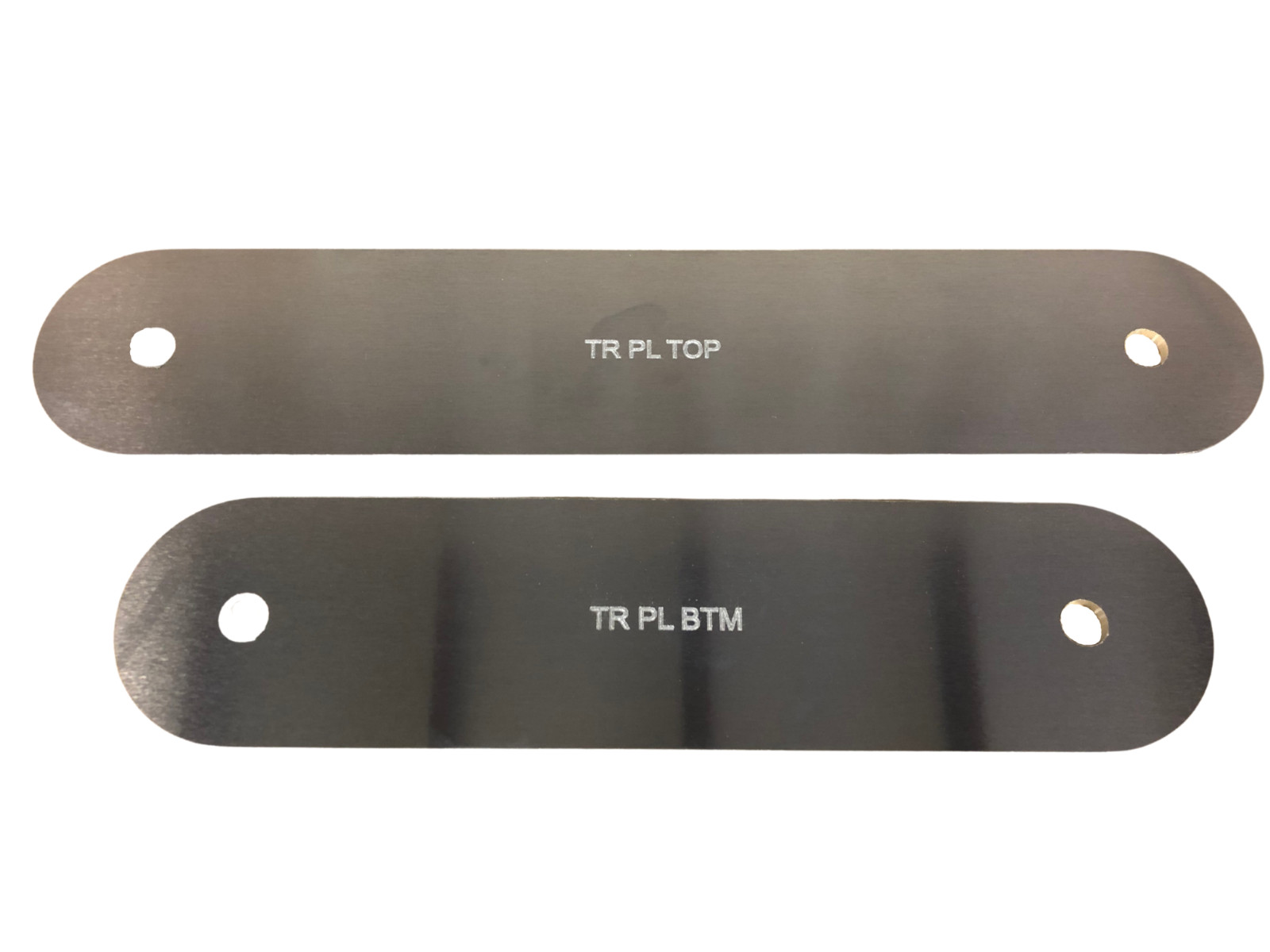

Transom Support Plate – Top & Bottom Pair 2 inch
Transom Reinforcement Plate, Transom Backer Plate
Use these plates as a reinforcement or doubler plate to strengthen your transom in way of the engine mounting bolts and spread the stress from across a wider area. The hole pattern is CNC machined to perfectly match the universal outboard mounting pattern used by all major manufacturers.
Our plates are CNC machined for a perfect fit.
Dimensions:
Universal outboard motor hole spacing
- 12-7/8″ (327mm) between upper bolt holes
- 9-7/8″ (251mm) between lower bolt holes
- 0.56″ hole diameter
- Top Plate: 14-7/8″x2″ overall
- Bottom Plate: 11-7/8″x2″ overall
- Thickness: 0.250" 5052-H32 aluminum
Check my listing for more options. We also have side pair versions and full pattern plates.
