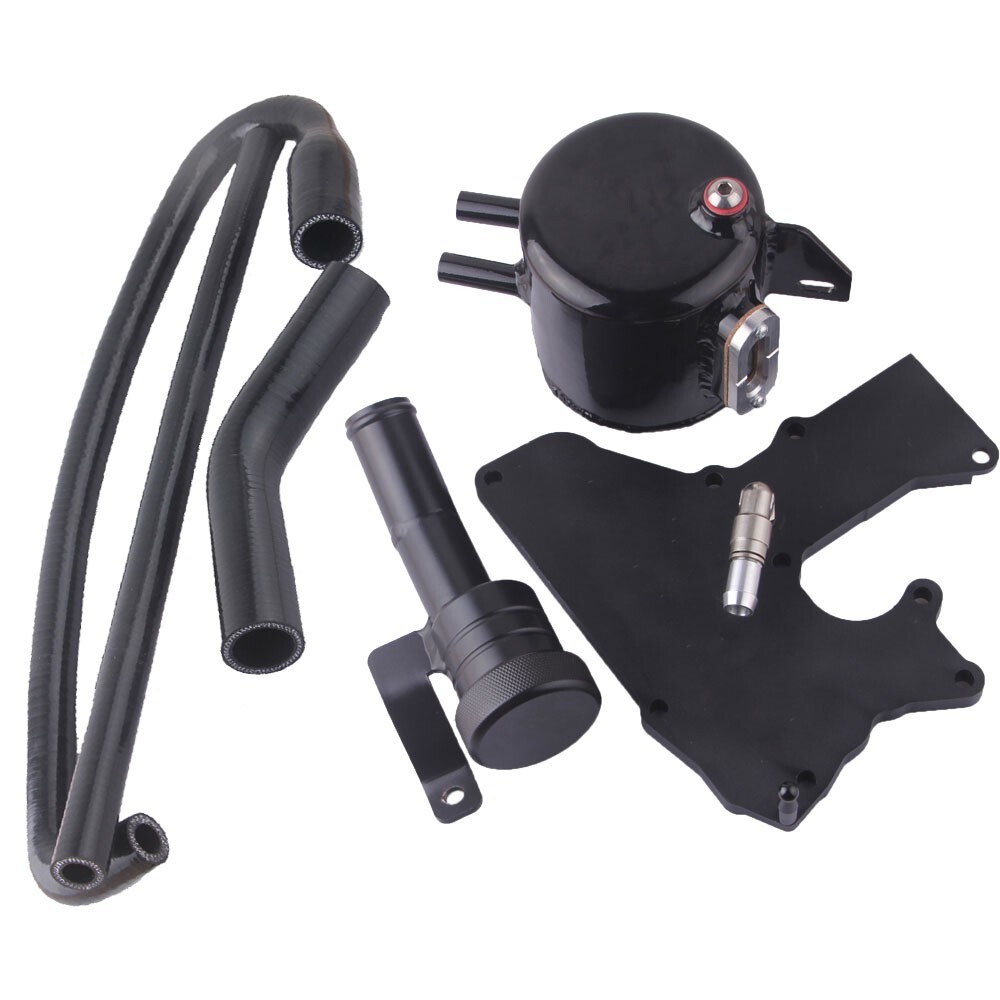

Oil Catch Tank System Kit For VW AUDI 2 0 TSI TFSI EA888 Gen1 & Gen2 CCTA CBFA
The kit is recirculating in design so as to maintain emissions compliance, however, it will capture all of the aerated oil, fuel, and water vapor contained in the blow-by gasses that would otherwise enter the intake tract and potentially contribute to deposits on the intake valves, thereby keeping the intake system clean and the engine performing optimally long-term.
Excess crankcase pressure is vented from the crankcase through the PCV system, where it is drawn into the intake manifold and returned by the engine. This recirculated air contains aerated oil from the crankcase which is burned by the engine. Turbo charged engines often draw significant amounts of oil into the engine through the PCV system. This oil catch tank system removes aerated oil so that it can be drained and recycled.
Feasures: Large Tank capacity Tank with sight glass (to check tank fluid level) Maintenance free baffle design Stainless mounting steel hardware Black powder coated tank and bracket Hard anodized plate and manifold cap Stainless Steel hose clamps Boost gauge adapter included
Application: This kit is suitable for intallation to the 2 litre TFSi ea888 1 and 2 gen (engine codes CCTA CBFA ) and the non Xenon headlight version of the MK6 Golf. However, this kit Will NOT fit 2009 on Audi S3 with xenon headlights.
Material: Aluminum + Silicone Color: Black
Package includes: 1X Oil Catch Tank System Kit As Shown
* Please make sure to confirm your engine code before purchasing to ensure proper fitment.
Note: Please allow slight differences due to different product batches. The actual goods received shall prevail. Professional installation is strongly recommended. No instruction is Included.
We provide an electronic installation manual. Please contact us if you need it.
