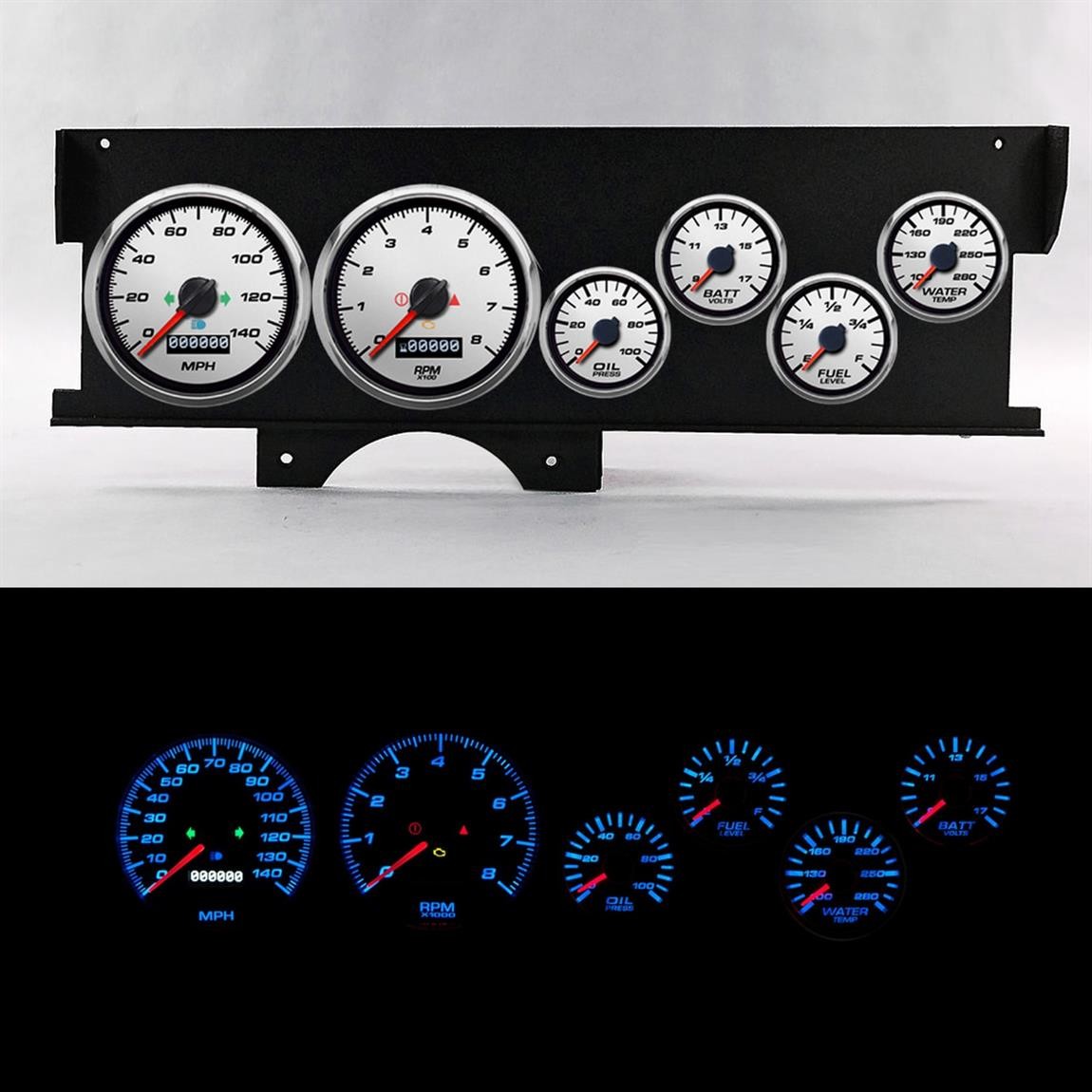

Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit (Does not fit SS dash), NVU's exclusive CNC laminate bracket easily installs any NVU 6-gauge kit in your factory dash without modification to the factory bezel. Bolts right in using the OE mountings, Each kit is hand assembled in Detroit and features NVU's unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit, Each kit comes complete with senders and factory-match fuel gauge, NVU instruments are easy to integrate with your old school engine or the latest LS powerplants New Vintage USA 72020-03 70-72 Malibu Dash Perf. II Gauges, White Sku # 2767202003 Mfr. Part # 72020-03 Condition New Brand New Vintage USA Sold Kit Details
Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit. (Does not fit SS dash) NVU's exclusive CNC laminate bracket easily installs any NVU 6 gauge kit in your factory dash without modification to the factory bezel. Bolts right in using the OE mountings.
Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.
Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Stainless or bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.
Looks are only skin deep; all Performance II instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.
Kit includes:
- 70-72 Malibu/Chevelle SS Mounting bracket with detailed instructions and mounting hardware
- Built-in indicators (Turn signal, hi beam, warning lights)
- 3-7/16" Speedometer 140 MPH programmable with 1auxiliary input
- 3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs
- 2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
- Temperature gauge 140-280
- Oil pressure gauge 0-100 PSI
- Voltmeter 9-17V
- 2 ea AMP connector harnesses
- 2 ea Programming button
- Bushing kit
- Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
- Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
* may require speedometer sender -
This item is being shipped to you directly from the manufacturer and is subject to an increased handling time. Delivery estimates that include the handling time are displayed on the "Shipping and Payments" tab. Specs Sold in Quantity Kit GTIN Code 689860960886 MFG. Part # 72020-03 Gauge Series Analog Gauge Style Electric Gauge Set Design Dash Cluster Number of Gauge Housings 6 Speedometer Diameter 3-7/16 Inch Tachometer Diameter 3-7/16 Inch Auxiliary Gauge Diameter 2-1/16 Inch Gauge Face Color White Bezel Finish Polished Lighted Yes Lighting Type LED Light Color Blue Needle Color Red Lettering Color Black Mount Type Direct / Adapter Speedometer Included Yes Tachometer Included Yes Oil Pressure Gauge Included Yes Oil Temperature Gauge Included No Water Pressure Gauge Included No Water Temperature Gauge Included Yes Fuel Pressure Gauge Included No Fuel Level Gauge Included Yes Vacuum Gauge Included No Volt Gauge Included Yes Ammeter Gauge Included No Boost/Pyrometer Gauge Included No Exhaust Pressure Gauge Included No Odometer Gauge Included Yes Includes Mounting Bracket(s) Yes Clock Included No Fuel Sender Included No Speed Sender Included No Oil Pressure Sender Included Yes Turn Signals Included Yes Includes Wire Harness Yes Bezel Included Yes Lens Style Flat Temperature Sensor Bung Included Yes Tech Support We're here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
