NEW ALUMINUM DRIVESHAFT,ANY LENGTH,26-70",WITH YOKE & U-JOINTS,RACING:
$379.99

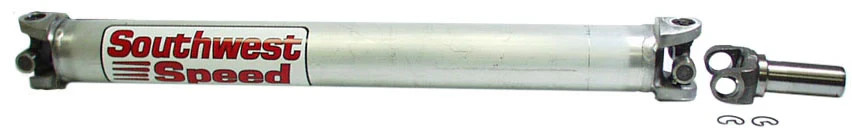

You are offerding ona Brand New Southwest Speed Aluminum Driveshaft.

You get your choice of any length from 26" to 70" long, in 1/2" increments***. We have all of these lengths in stock and ready to ship to you. These lengths are measured center of u-joint cup to center of u-joint cup (measuring diagrams aluminum construction

Weighs 40% less than steel

Precision balanced

These driveshafts have been used for years by some of the best race car and street rodbuilders in the country

.065" wall DOM tubing

Aluminum driveshafts 26" to 61.5" (measured center-to-center) have an outside diameter of 3". Driveshafts 62" and longer will have an O.D. of 3-3.5".

Aluminum driveshafts on cars that regularly run on 3 wheels must have the yoke clearanced for proper travel or the driveshaft will be damaged

Includes:

New 27 spline transmission yoke
- This yoke will fit any transmission with a27 spline output shaft, including:
- **If you have a GM transmission with a 32 spline, or a Ford transmission with a 28 or 31 spline output shaft, we stock the correct yokes for those transmissions as well.

Both front & rear new u-joints, which are 1 1/16" diameter cups (MeasurementC below)by 3 7/32" wide (Measurement B below)

On the rear of the driveshaft, these shafts will fit the 1310 rear end (or pinion) yoke. If you aren't sure if this is the yoke you have, the easiest way to make sure is measure to see if the 1 1/16" x 3 7/32" u-joint will fit it**.

**If your rear end yoke won't accept the 1310 u-joint, we probably have a conversion u-joint available for sale that will enable these driveshafts to fit your rear end yoke. Just make sure to ask before you order and I'll let you know for sure. Different Ways to Measure for the Length of the Driveshaft

Measuringyour old driveshaft if it is available is the easiest way

Measure your old driveshaft from the center of the u-joint cup to the center of the u-joint cup (shown below)

Using this measurement, we have every length from 26" to 70" in stock in 1/2" your old driveshaft is not available or this shaft will be installed in a new car, you can use this method

"A" - Measure from the rear of the tailhousing on your transmission to the front of the rear end (or pinion) yoke
This measurement needs to be taken with the car at "ride height"; you cannot get a proper measurement with the car jacked up in any way
If you use this method to determine the length, just make sure to let us know at checkout that "the A dimension is ___"

Using this measurement, we have every length from 29" to 73" in out our store for hundreds ofother driveline parts, includingbellhousings, transmissions,driveshaft yokes, u-joints, etc.

We also have thousands of other High Performance Partsin ourstore.

Shipping:

There is no faster shipping on . If you pay for the item by 5:00 Eastern, Monday-Friday, we will ship it the same day. If it's after 5:00 EST, we will ship it the next business day. If you pay for the item on the weekend, we will ship it out Monday.

now requires that sellers put a "handling time" on each item and "1 Business Day" is the shortest listed option. WE DON'T HAVE AHANDLING TIME. We ship same day in accordance with the paragraph above. No delays here. We want you to have theparts as bad as you do.

We will be glad to ship internationally. Just send us a message for an international shipping quote.
