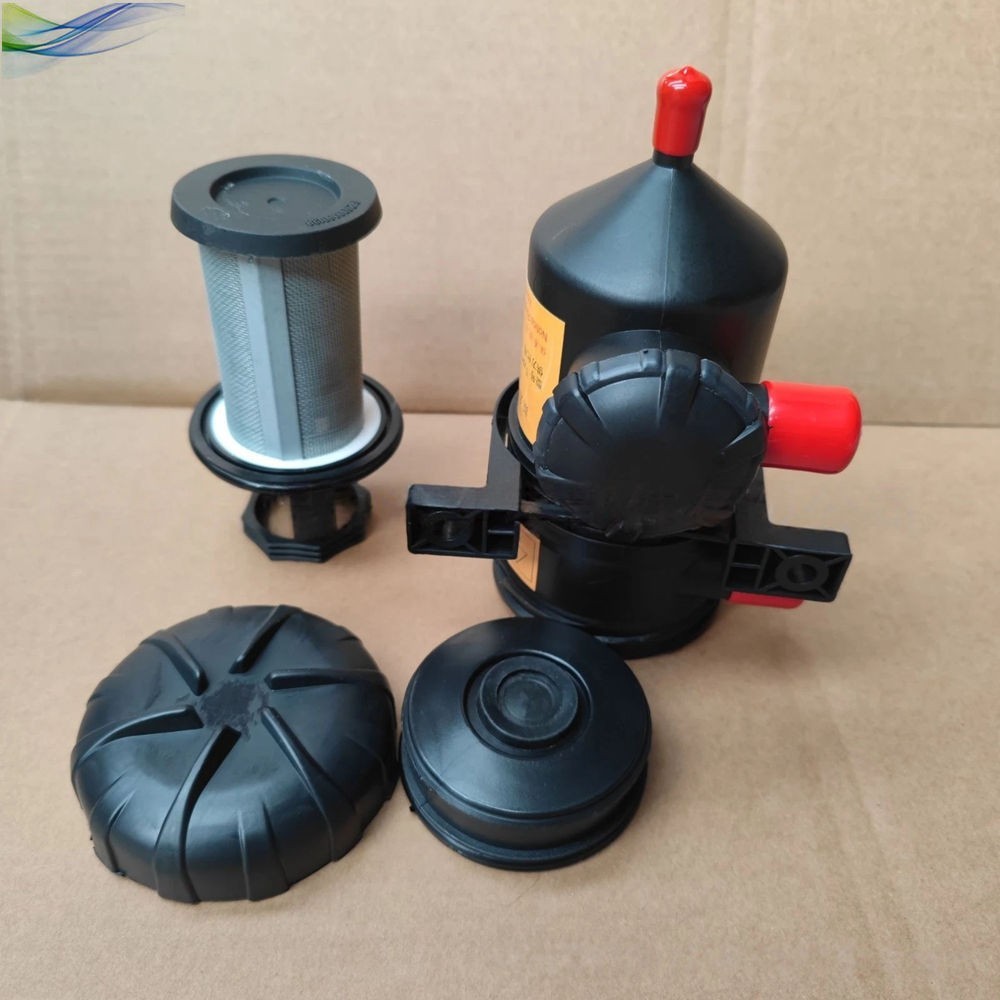

Mann ProVent 200 Catch Can 3584145 For All 4X4 Turbo Diesel's Crankcase BreatherMPN: 1316868S01
MANN+Hummel ProVent 200 Oil Catch Can for Closed and Open crankcase ventilation.
*Please Note: Inlet & Outlet are 1"/25mm O.D
Provent 200 Features:
The Original & Best ! German Made by the ProVent Inventors MANN+HUMMEL ! Highly efficient oil separation as a closed as well as an open system - Maintenance friendly: fittings are not removed during element maintenance - Less motor oil consumption in comparison to less efficient separators or conventional open systems - Provides ideal protection for turbochargers and other components installed downstream. Standard value for use of ProVent: Single unit* / up to 250kW (335hp) | Blow-by flow rate: max.200 l/min) | Installation position: vertical) | Allowed tilt position of vertical axis: 45° in all directions) | Positioning: Inlet / Outlet: 12 positions, further positions on request) | Ambient temperature: -35°C to 120°C / short time @ 140°C ) | Screw mounting to engine block: 2 x M8) | Material: Housing Cover Bracket / PA GF) | Resistant against: diesel fuel, engine oil, lube oil, cleaning agents.(* Use of two ProVent of the same type in parallel possible )
Advantages:
Up to 200 l/min blow-by gas :: Very compact design :: Available with high-efficiency or ultra-efficiency medium :: Integrated pressure regulation for crankcase :: Also available with bypass valve (integrated in separation element) :: Tool-free element replacement with protection against incorrect insertion through turn-lock mechanism and element with integrated handle :: Suitable for use with open or closed CCV system :: Use of two ProVent 200 in parallel possible :: Check valve for oil return available as option (recommended).
