Application:
Universal. Fit for 38MM turbo manifold wastegate port.
Specification:
*100% quality assurance tested, more responsive, less expensive, easier to install.
*The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy.
*Stainless Steel actuator spring gives consistent pressure at high temperature, resist \"relaxing\" at temperature to 900F (483C).
*Ultra compact design fits in very tight spaces, the unit stands only 3.8\" tall, more compact than any other external wastegate on the market today.
*Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel.
*Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine.
*Bbolted to exhaust manifold or header, the advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine.
*This tends to improve the turbine\'s performance.
*Inlet Flange: 1.75\" OD, Outlet Flange: 1.50\" OD.
*Air Ports (5): M10 x 1.0.
*22 PSI Combined Internal Springs.
*Material & Color:
*Material: made of high quality Cast Steel.
*Color: black
Package Included:

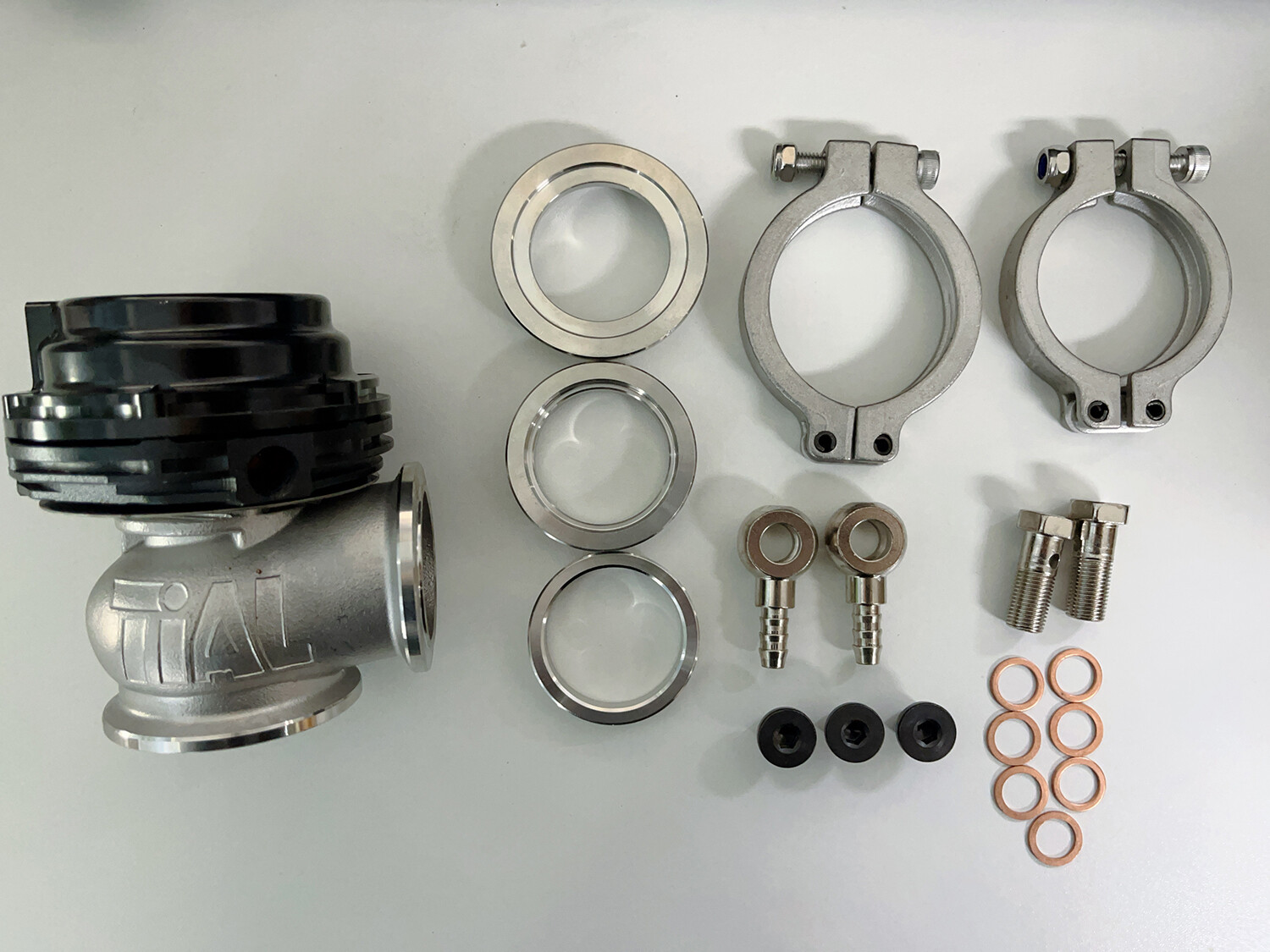

1x Wastegate Kit. （as picture）
