MOTOR METER RACING VD 6 Gauge Set GPS Speedometer MPH °F PSI White LED 85mm 52mm For Sale - New and Used

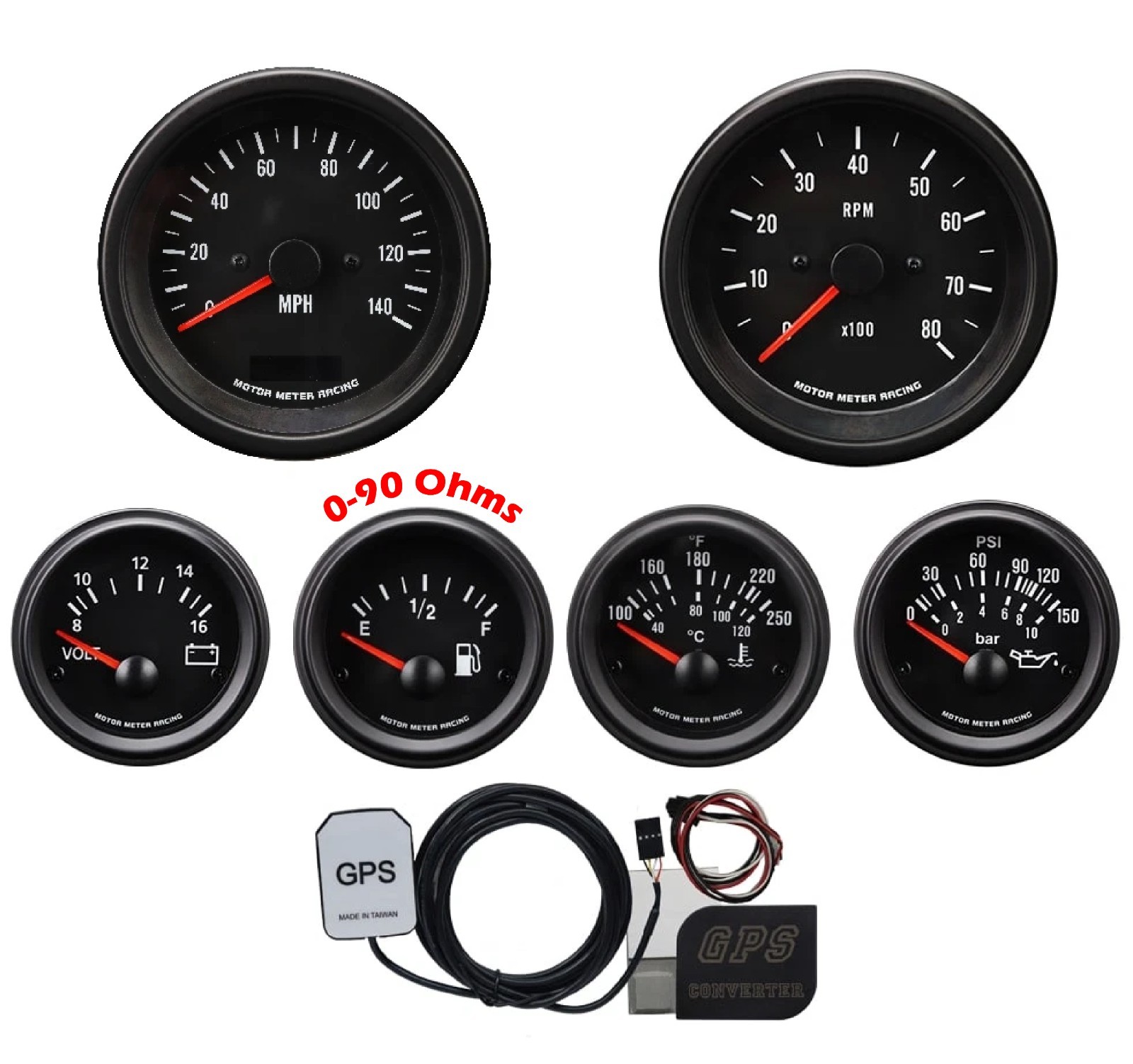

MOTOR METER RACINGVD SERIES6 Gauge Set

• Swiss Stepper Motor Movement.
• Analog Display Speedometer & Digital Display Odometer.
• Flat Clear Lens Surface, Black Stainless Steel Bezel & Plastic Housing.
• Black Gauge Faceplate, Red Needle.
• White LED Illumination.
• Tachometer Fits Any 1 to 9 Cylinder Gas Powered Engine.
• Gauge Set Requires 12 Volt Negative Ground Systems.

• Volt Gauge / Voltmeter
• Sizes: 52mm (2-1/16")
• Measuring Range: 8 - 16 (V)
• Sweep: 90 Degree
• Fuel Level Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: Empty - Full
• Resistance: 0 (E) - 90 (F)ohms
• Sweep: 90Degree
• With Fuel Level Sender
• Water Temperature Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: 40 - 120 (°C) / 100 - 250 (°F)
• Sweep: 90 Degree
• With Water Temperature Sensor (Thread Size: 1/8 NPT)
• Oil Pressure Gauge
• Sizes: 52mm (2-1/16")
• Measuring Range: 0 - 10 (BAR) / 0 - 150 (PSI)
• Sweep: 90 Degree
• With Oil Pressure Sensor (Thread Size: 1/8 NPT)
• Electrical Speedometer
• Sizes: 85mm(3-3/8")
• Measuring Range: 0 - 140 (MPH)
• Sweep: 270 Degree
• Electrical Tachometer
• Sizes: 85mm(3-3/8")
• Measuring Range: 0 - 8000 (RPM)
• Sweep: 270 Degree
• GPS Sensor & Converter
• 6 Gauges
• GPS Sensor & Converter
• GPS Antenna & Signal Harness
• Water Temperature Sensor (Thread Size: 1/8 NPT)
• Oil Pressure Sensor (Thread Size: 1/8 NPT)
• Fuel Level Sender (0 - 90 ohms)
• Power Harness
• Mounting Hardware
• Filter x 2 (For Tachometer)
• Adjustment Stick (For Speedometer)
• Installation Instructions
KINDLY NOTICE
• If Tachometer Readout Inaccurate In Idle or Keep Bouncing When Engine Accelerating, Please Install Our Tachometer Filter.
• Black Stainless Steel Bezel Can Substitute For Stainless Steel Bezel.
• VD SERIES GPS 6 Gauge Set (Stainless Steel Bezel):IG6GSETESPC-GPS-LED (MPH) (0-90)
• Speedometer Can Substitute For DifferentUnit, Please Contact Usor Note on Order.
• Speedometer: 0 - 220 (KMH) / 0 - 140 (MPH).
• If You Have Requirements For Other Ohm Specifications of Fuel Level Gauges and Fuel Level Sensors, Additional Specification Options Are Listed Below, Thank You.
• 240-33 Ohms (Empty-Full)
• One Year Limited Warranty For Non-Human Factor Damage & Free Lifetime Technical Support.
• 100% Made in Taiwan.



---
