About This Item:

• 1. Upgraded 4 Control Modes: This Upgraded Multifunction Switch Panel Has 4 Modes: Toggle, Constant Light Mode; Momentary Ignition Power, Press and Hold to Turn on, Release to Turn off; Flash Light Mode, Flashing at a Lower Speed Which Can Be Used for Turn Signal; Pulsed Strobe Mode, Used for Emergency Light or Warning Light. You Can Easily Switch Between Modes in Different Situation
• 2. 0% to 100% Backlight Brightness: 6-Level Backlight Brightness Allows You to Turn off Backlight Completely for a More Comfortable Visual Experience and Energy Conservation. plus, 8-Rgb Backlight Colors to Match Your Vehicle\'s Ambiance
• 3. 3 Silicone Function Buttons: Mictuning Rgb 4 Gang Switch Panel Designed with 3 Silicone Button Which Have a Comfortable Touch and Are Highly Responsive, Allow for Blind Operation. Including on/off Switch with Memory Function, Brightness Adjustment Button, Rgb Color Adjustment Button
• 4. Two Ways for Power Source: the Control Box Switch Provides Two Ways to Obtain Power: Connect Acc or Battery. Different Mounting Brackets for Flexible and Quick Installation. Bonus 140pcs Labeling Stickers Included to Customize Your Switch Panel Buttons. and Fuse to Well Protect Your Car Circuit
• 6. Reliable Switch Panel: Good for Controlling Multiple Lights and Accessories, Makes Wiring Neater and Easier. 6 Gang Switch Panel Rated at 600w/12v,1200w/24v, Maximum Current: 50a, Operating Temperature: - 40°C ~ + 105°C, Ip65 Waterproof Rate. Suitable for 12v/24v Rv, Marine, Car, Truck, Off-road, Atv/Utv, Boat, Yachts, Caravans, Etc

SPECIFICATION:

• Voltage: 12V-24VDC
• Power: 600W/12V,1200W/24V
• Maximum Current: 50A
• Operating Temperature: - 40°C ~ + 105°C
• Operation Mode: ON-OFF-ON
• Material: Aluminum

PACKAGE INCLUDED:

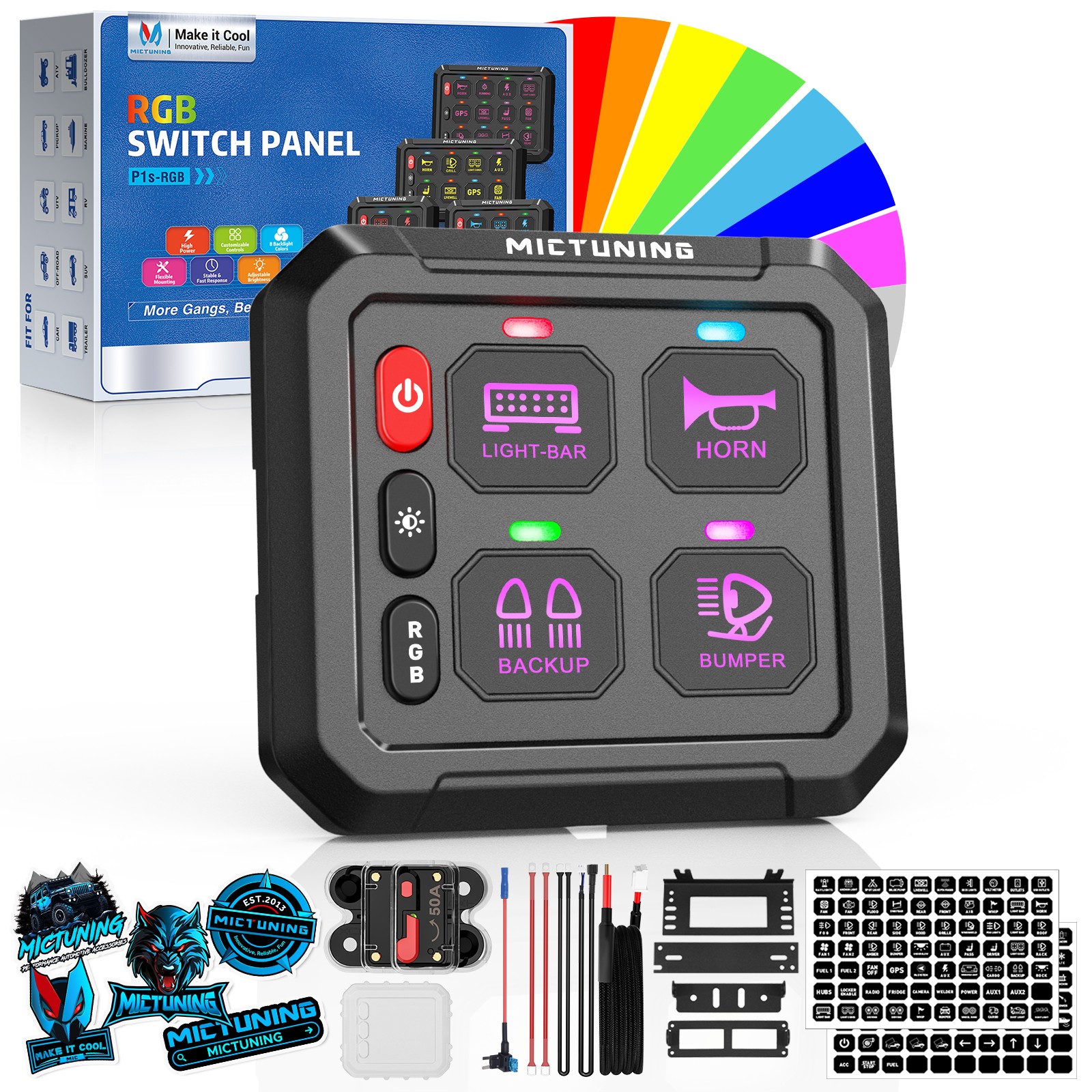

• 1X 4 GANG SWITCH PANEL
• 1X CIRCUIT CONTROL BOX
• 5X MOUNTING BRACKETS
• 140X SWITCH LABELS
• 1X 100A CIRCUIT BREAKER
• INSTRUCTION
• 3X WIRING HARNESS
• CABLE TIES
• SCREW
• 5 FUSES, INCLUDING 2X 30A, 1X 20A, 1X 15A, AND 1X 10A
