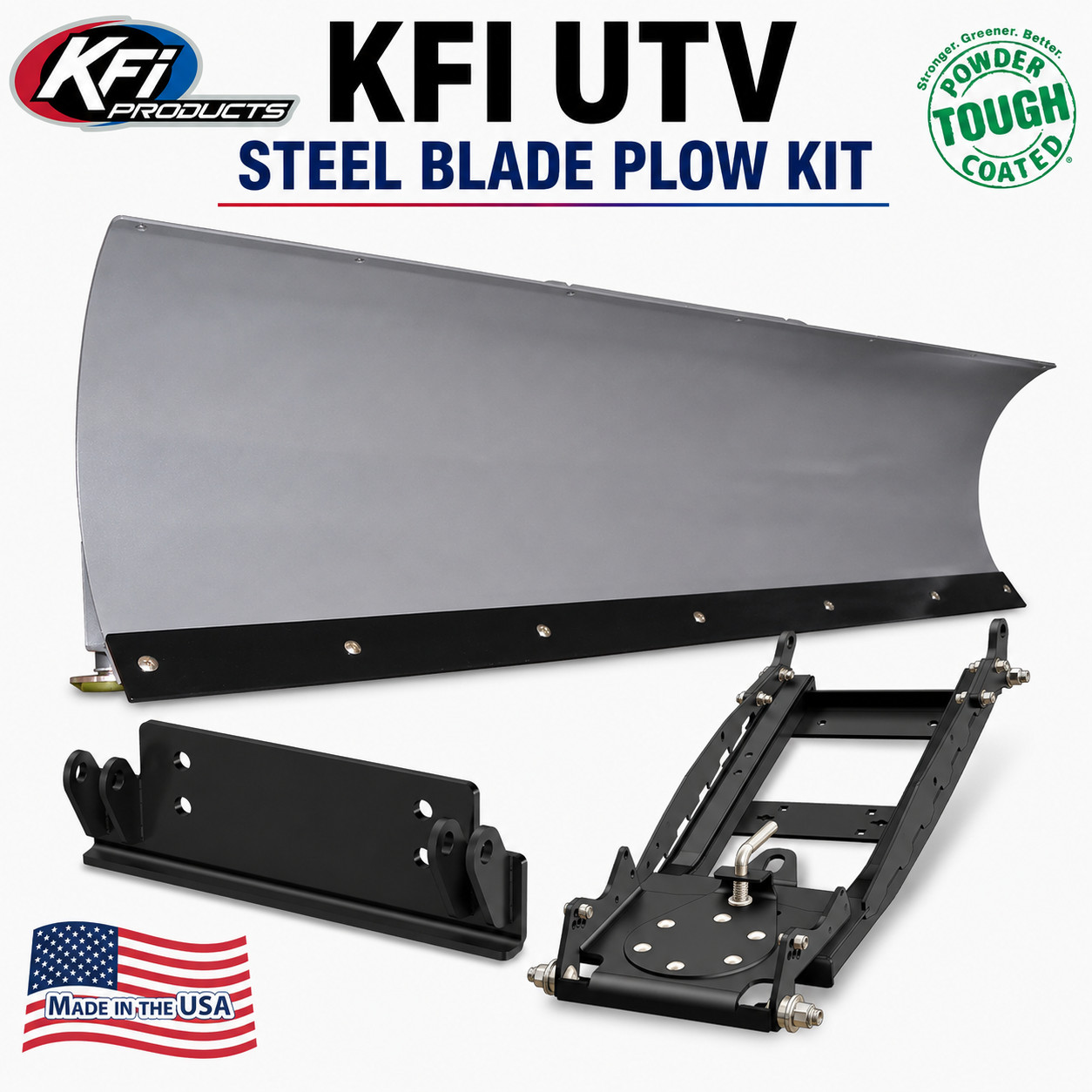

KFI 2.0 SNOW PLOW KIT ‘20-26 Can-Am Defender 6x6HD10 (DPS*XT)- 72\" Steel UTV Kit For Sale - New and Used

KFI Application Chart

Can-Am UTV *YearNOTESDefender HD5*HD7*HD8*HD9*HD10 (Base*DPS*XT*Mossy Oak)\'16-26N/ADefender LIMITED HD10\'20-22N/ADefender LIMITED HD10\'23-25JDefender X MRHD10\'18-25JDefender MAX HD7*HD8*HD9*HD10 (Base*DPS*XT)\'17-26N/ADefender MAX LIMITEDHD10\'20-22N/ADefender MAX LIMITEDHD10\'23-25JDefender MAX Lone Star HD10\'18-22N/ADefender MAX Lone Star HD10\'23-25JDefender MAX X MR HD10\'19-25JDefender PROHD10 (DPS*XT*Lone Star)\'20-26N/ADefender PRO LIMITED HD10\'21-26JDefender 6x6HD10 (DPS*XT)\'20-26N/ADefender 6x6 LIMITED HD102022N/ADefender 6x6 LIMITED HD10\'23-26J

NOTES:
J : Requires KFI 2\" Leveling Kit #106322 (New Tubes 106300) or #105700 (Old Tubes 105635)

STEEL StraightBlade Specifications:

100% MADE IN USA, Pushes snow straight ahead or to the sidesup to 25 degrees, Added gussets for the wider width, The 66\" &72\" blades include a 7\" high 2-ply top rubber flap, Measures 16”Vertical blade face height with an approximate 21” height with snow flap, Fully-adjustableblade skids with bolt-on brackets, Heavy duty 3\"-diameter grade-50 steelskid plates, Blade Constructed of 11 ga steel, 3/16\" Grade 50 Ribbing fora strong bolt-up to the Swivel Tube, Unlike all other Plow competitors ourPlows are metal bead blasted before they are powder coatedMetallic Silverfor supreme durability, 2-Sided 3/16\" x 3.00\" Grade 50 Steel Wear Bar,Wear Bar attached with Heavy Duty Grade 8 Bolts, 2-Year KFI Warranty

NEWPRO2.0 UTV PUSH TUBE -#106300

Improved Manufacturing, Easier Install For All PlowAccessories, Added 2.5\" Of Overall Length, Works With All KFI Plows, FrontMount Design with 30\"+ of lift height ,100% MADE IN USA, Heavy Duty1-1/2\" 12 Gage Square Steel Tubing, Heavy Duty 1/4\" Thick 1-1/2\"Diameter Grade 50 Pivot Bushings, 6\" Diameter POM Injection Molded RotatorBushing, Easy-Pull Pin Blade angle adjustment, Multi-position Plow Lift Bracket,6 five degree blade pitch adjustment, 3 blade angle positions that rotate theblade up to 25 Degrees, Unlike all other Plow competitors our tubes are metalbead blasted before they are powder coated for the best possible finish prep., PowderCoated Black for supreme durability, Complete installation instructionsincluded, All mounting hardware included, 2-Year KFI Warranty

UTV Model Specific Plow Mount Specifications:

• 100% Made in the USA
• Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
• Uses Two Standard 5/8\" Hitch Pins for Secure Connection (comes with push tubes)
• Plate Material: Constructed from 3/16\" thick grade 50 steel for durability and strength.
• Plow Mounting Tabs: Made from 1/4\" thick grade 50 steel to ensure a secure fit.
• Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
• Powder Coated Black: Ensures supreme durability and corrosion resistance.
• Installation: Comes with complete instructions for hassle-free installation.
• All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
• Satisfaction Guaranteed

This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.

---
