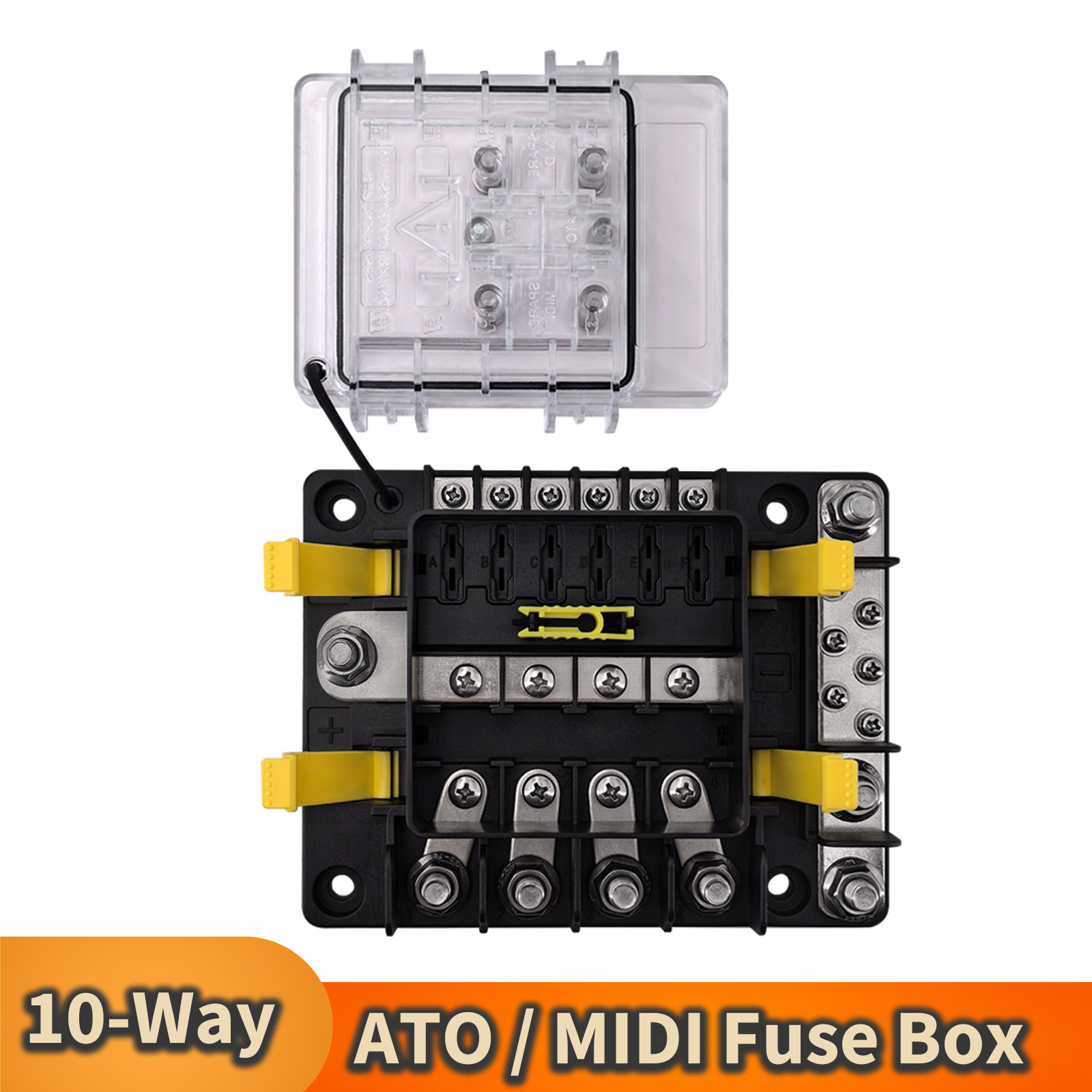

Heavy Duty Fuse Box 6 Way ATO Blade Fuse Block 4 Way MIDI Mini ANL Fuse Holder For Sale - New and Used

This all-in-one dual circuit fuse distribution block integrates standard ATC blade fuse positions and MIDI bolt-on fuse holders, solving the trouble of separate small-current and high-current fuse boxes for your 12V/24V DC electrical system.

• Ignition protected fuse block with screw termination

• Four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

• Six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, alarms, clock memory, electronics and lights

• Safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits

• Note: Fuses are not included

Model: Fuse Box

• Circuits: 10

• Amperage Max. Operating(Total): 350A (4/0 cable - Amb. max. 50°C); 600A (2 x 4/0 cable - Amb. max. 50°C)

• Nominal Operating Voltage: 12-24V DC (32V DC Max.)

• Minimum Cable Size to Meet Rating: 4/0 AWG (120 mm²) copper cable

• Attention: Ratings are dependent on input cable sized for appropriate amperages

AMI / MIDI / ANS Circuits

• Circuits: 4

• Amperage Max. Operating(per circuit): 170A

• Minimum Cable Size to Meet Rating: 2/0 AWG

• Screw Size: M5

• Amperage Max. Operating(per circuit): 25A

---
