HONDA ACURA FRONT WINDSHIELD ACC LKAS LANE ASSIST MONOCULAR CAMERA REPAIR KIT 3:
$159.00

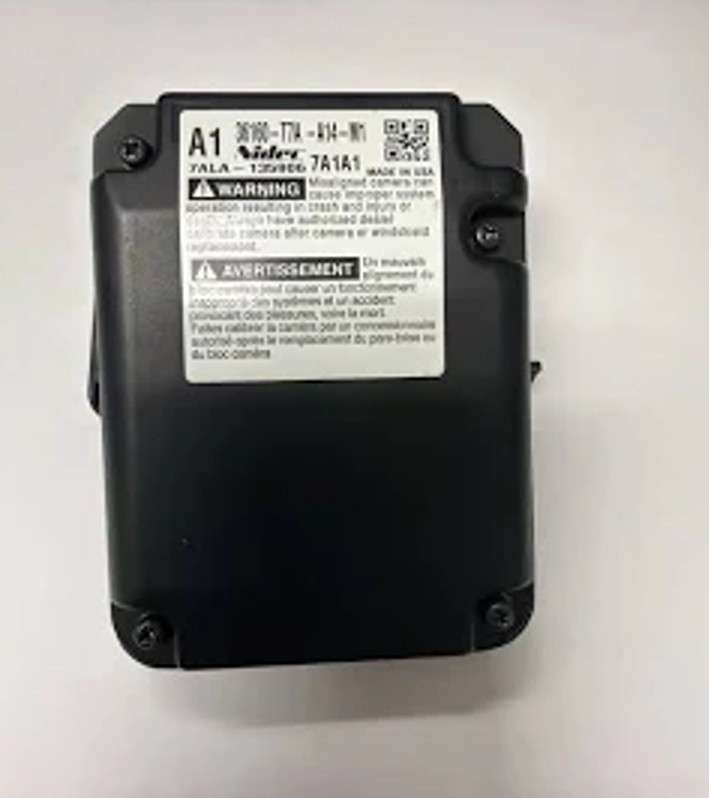

This is a type 3 repair kit for the windshield mounted front camera on many hondas/acuras. Also known as LKAS ACC Multifunction camera. This ribbon cable/lens is the most common issue to fix code U3000-49.It is fairly simple to replace by removing the plastic cover, disconnecting the module, and opening the device with a precision screwdriver set. Or it can be done bya cell phone repair specialist. 1 thermal paste packet is included. Thermal paste on processor should also be replaced at time of repair by cleaning off the old paste thoroughly and applying new paste. No calibration needed. All functionality active including LKAS. No error messages after repair. Installation video available upon request.
Please send a picture to me of your module with part number to confirm fitment and repair kit type needed.May fit the following part numbers (Please confirm before ordering):
Civic 16-18
36160-TBC-A04-M1
36160-TBC-A01-M1
36160-TBC-A02-M1
36160-TBC-A03-M1
36160-TBA-A04-M1
36160-TBA-A01-M1
36160-TBA-A02-M1
36160-TBA-A03-M1
36160-TEG-A02-M1
Clarity 18-21
36160-TRW-A04 -M1
36160-TRV-A05-M1
36160-TRW-A11-M1
36160-TRT-A03-M1
Fit 18-20
36160-T5R-A42-M1
36160-T5R-A41-M1
36160-T5R-A62-M1
36160-T5R-A61-M1
36160-T5R-A52-M1
36160-T5R-A51-M1
36160-T5R-A35-M1
36160-T5R-A34-M1
36160-T5R-A33-M1
36160-T5R-A32-M1
36160-T5R-A31-M1
36160-T5R-A05-M1
36160-T5R-A04-M1
36160-T5R-A03-M1
36160-T5R-A02-M1
36160-T5R-A01-M1
36160-T5R-A25-M1
36160-T5R-A24-M1
36160-T5R-A23-M1
36160-T5R-A22-M1
36160-T5R-A21-M1
HR-V 19-22
36160-T7A-A14-M1
36160-T7A-A12-M1
36160-T7A-A13-M1
36160-T7A-A24-M1
36160-T7A-A22-M1
36160-T7A-A23-M1
36160-T7A-A04-M1
36160-T7A-A02-M1
36160-T7A-A03-M1
Odyssey 18-20
36160-THR-A74-M1
36160-THR-A73-M1
36160-THR-A72-M1
36160-THR-A04-M1
36160-THR-A03-M1
36160-THR-A02-M1
36160-THR-A11-M1
36160-TG8-A83-M1
36160-THR-A82-M1
36160-THR-A81-M1
36160-THR-A91-M1
36160-THR-C01-M1
Passport 19-21
36160-TGS-A13-M1
36160-TGS-A12-M1
36160-TGS-A13-M1
36160-TGS-A03-M1
36160-TGT-A13-M1
36160-TGT-A12-M1
36160-TGT-A11-M1
36160-TGT-A03-M1
36160-TGT-A02-M1
36160-TGT-A01-M1
Pilot 16-22
36160-TG8-A52-M1
36160-TG8-A51-M1
36160-TG7-A72-M1
36160-TG7-A71-M1
36160-TG7-A63-M1
36160-TG7-A62-M1
36160-TG7-A61-M1
36160-TG7-A52-M1
36160-TG8-A63-M1
36160-TG8-A62-M1
36160-TG8-A61-M1
36160-TG8-A83-M1
36160-TG8-A82-M1
36160-TG8-A81-M1
36160-TG7-A93-M1
36160-TG8-A92-M1
36160-TG8-A91-M1
36160-TG7-A31-M1
Ridgeline 17-25
36160-T6Z-A62
36160-T6Z-A61-M1
36160-T6Z-A52
36160-T6Z-A51-M1
36160-T6Z-A03
36160-T6Z-A01-M1
36160-T6Z-A02-M1
36160-T6Z-A42
36160-T6Z-A41-M1
36160-T6Z-A31-M1
36160-T6Z-A22-M1
Acura ILX 16-22
36160-TX6-A03-M1
36160-TX6-A02-M1
36160-TX6-A01-M1
36160-TV9-A15-M1
36160-TV9-A14-M1
36160-TV9-A13-M1
36160-TV9-A12-M1
36160-TV9-A05-M1
36160-TV9-A04-M1
36160-TV9-A03-M1
36160-TV9-A02-M1
Acura MDX 16-20
36160-TYT-A22-M1
36160-TZ6-A04-M1
36160-TZ6-A03-M1
36160-TZ6-A02-M1
36160-TZ6-A01-M1
36160-TZ6-A66-M1
36160-TZ6-A65-M1
36160-TZ6-A64-M1
36160-TZ6-A63-M1
36160-TZ6-A34-M1
36160-TZ5-A65-M1
36160-TZ5-A64-M1
36160-TZ5-A63-M1
36160-TZ5-A34-M1
36160-TYR-A02-M1
36160-TYS-A02-M1
36160-TYS-A01-M1
36160-TX5-A01-M1
36160-TX5-A02-M1
36160-TX5-A03-M1
36160-TX5-A04-M1
Acura TLX 15-20
36160-TZ4-A14-M1
36160-TZ4-A12-M1
36160-TZ4-A13-M1
36160-TZ3-A12-M1
36160-TZ3-A04-M1
36160-TZ3-A03-M1
36160-TZ3-A02-M1
36160-TZ3-A01-M1
36160-TZ4-A61-M1
36160-TZ4-C53-M1
36160-TZ7-C13-M1
36160-TZ7-C52-M1
36160-TZ7-Z63-M1
36160-TZ7-A52-M1
36160-TZ7-A02-M1
36160-TZ7-A03-M1
36160-TZ7-A21-M1
Accord 16-17
36160-T2F-A14-M1
36160-T2F-A05
36160-T2F-A15
36160-T3Z-A83-M1
36160-T3Z-A84
36160-T3M-A34-M1
Total parts included:
1 ribbon
1 heatsink
1 bracket
1 thermal paste
Washers
