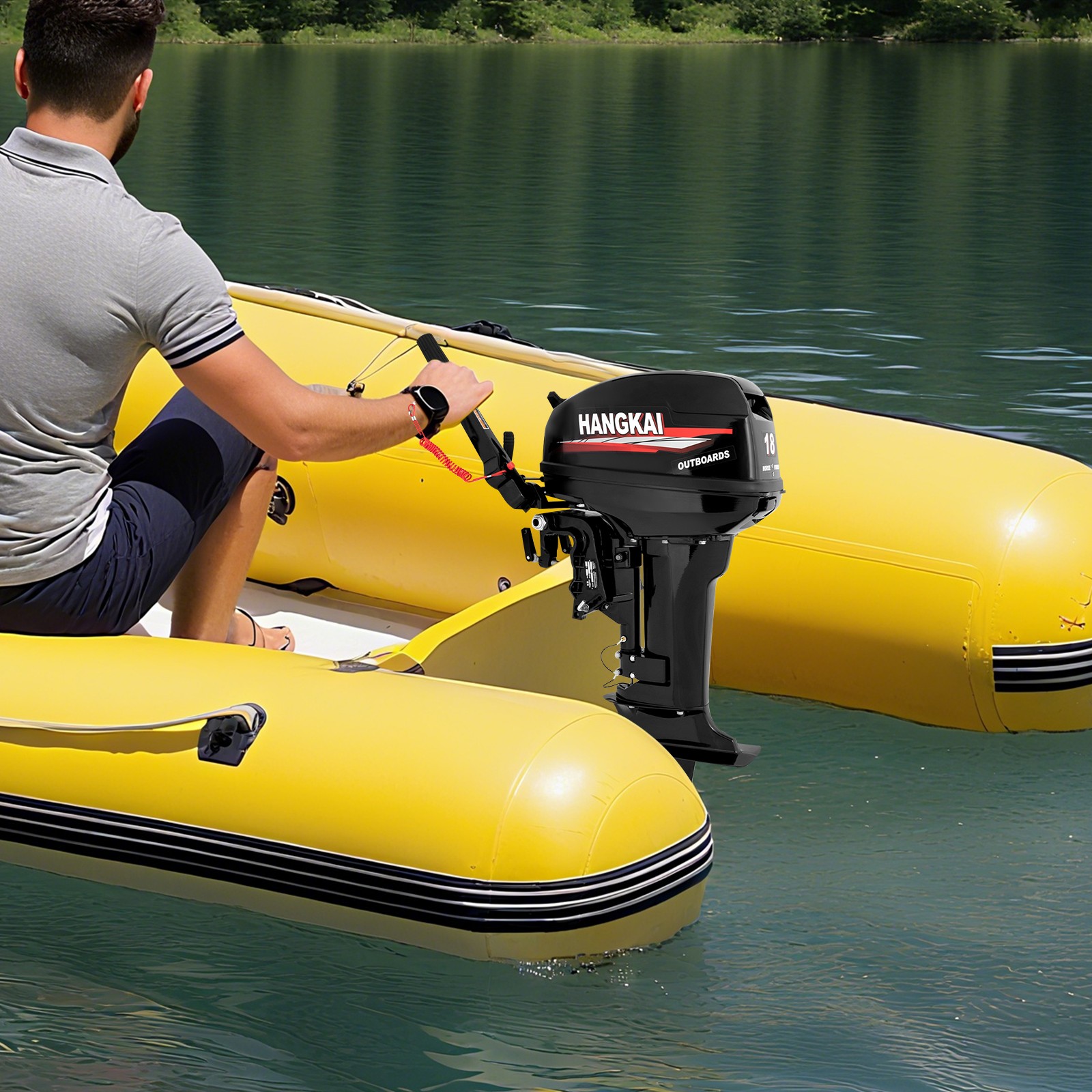

HANGKAI 2 Stroke 18HP Outboard Motor Fishing Outboard Engine Water Cooling 246ccHANGKAI 2 Stroke Outboard Motor 18hp Heavy-Duty Fishing Outboard Engine Water Cooling 246cc - Short ShaftFeatures
Fast & Powerful: A 2-stroke engine with a maximum output of 13.2kW and 18hp, and a maximum speed of 5500rpm, provides you with unparalleled speed. The streamlined design of a 8\'\' three-blade propellercan reduce water resistance and provide stronger power during operation.
Selected Material: Lightweight and sturdy aluminum alloy, combined with spray painting technology, provides excellent corrosion resistance, wear resistance, heat resistance, shock resistance, deformation resistance, and other properties. You can use it with confidence in fresh water and salt water.
Low Noise: The large muffler above can isolate most of the noise, making the sound of the machine running around 80 decibels, allowing you to hear other movements on the water and remain vigilant.
Large Fuel Tank & Fuel-efficient: The external fuel tank of the motor can hold 6.34 gallons of fuel, supporting long-term operation. An efficient carburetor burns fuel more fully, with a fuel consumption rate of 1.18gal/h not only saving fuel but also reducing expenses.
Safe & Reassuring: The reliable CDI ignition system can quickly and safely start the motor, and suspension tilt adjustment pins and anti-vortex plates reduce inclination and vortices, ensuring smooth operation. The water cooling system is designed to maintain the optimal temperature, coupled with overheating protection, allowing you to continuously enjoy the fun of the navigation.
Complete Set: In addition to the outboard motor, our package also includes a flameout rope, a tool kit, etc., which can meet your usage needs at once.
Application
It is suitable for rubber boats, inflatable boats, fishing boats, sailboats, yachts, canoes, kayaks, rubber boats, aluminum alloy boats, etc. with a stern height of 17.32 inches or less, assisting aquaculture, water transportation, net fishing, luring, outboard backup, outings, and river cleaning/maintenance.
Specifications
Material: Aluminum Alloy
Color: Black
Surface Treatment: Spray Paint
Assembly Required: No
Number of Items: 1
Engine: 2-stroke 18hp
Displacement: 246cc
Gear Ratio: 2.08(27:13)
Number of Cylinders: 2
Max. Output: 13.2KW
Max. Speed: 4500-5500r/Min
Noise: About 80DB
Gear Positions: F-N-R
Ignition System: CDI
Cooling System: Water-cooling
Control System: Tiller Control
Starting System: Manual Start
Gasoline: No.92 Lead-freeGasoline
Fuel Type: Mixed Oil (50 Gasoline: 1 2-stroke Engine Oil)
Trim And Tilt System: Manual Tilt
Fuel Tank Capacity: 24L/6.34gal
Fuel Consumption Rate: 4.5L/1.18gal/h
Bore*Stroke: 5.6*5cm/2.2*1.97in
Propeller Diameter: 20cm/8in
Joystick Length: 36cm/14.17in
Handle Length: 14cm/5.51in
Fixed Screw Spacing: 16cm/6.3in
Oil-pumping Pipe Length: 2.9m/9.5ft
Adaptive Transom Plate Height: ≤44cm/17.32in
Net Weight: 28.9kg/63.7lbs
Product Size: 103*47*32cm/40.5*18.5*12.6in
Package Included
1x Outboard Motor
1x External Fuel Tank
1x Oil-pumping Pipe
1x Flameout Rope
1x Tool Kit
1x English Manual
All Accessories for Assembly
Notes
- Please carefully read the manual and strictly follow the precautions to have a better experience.
- Please measure the height of your boat before purchasing to ensure suitability for this product.
- Please start the motor in the water. If the motor stops circulating water, please stop using it immediately and check the impeller of the water pump to see if the water outlet is blocked.
- Please note that this product should use a mixture of two-stroke engine oil and 92 # unleaded gasoline. The running-in period of the new machine is 10 hours, during which the fuel ratio is 30L (7.93 gal) of gasoline to 1L (0.26 gal) of engine oil. After 10 hours, the ratio is 50 liters (13.21 gallons) of gasoline to 1 liter (0.26 gallons) of oil.
- Please note that the emergency shutdown rope should be inserted when the outboard motor is started, and the other end should be wrapped around your wrist or belt.
- Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later.
- Please do not leave this product outside until the cooling water is completely used up. Otherwise, water will enter the cylinder through the exhaust port, leading to engine failure. After cruising in seawater or turoffer water, please clean the outboard motor with fresh water and cool the water channel with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight.
- If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
