Genuine GM OEM ABS / EBCM Control Module 22754644Electronic Brake & Traction Control Module | Factory RemanufacturedPRODUCT OVERVIEW
This is a Genuine GM OEM Electronic Brake & Traction Control Module (EBCM), part number 22754644, designed for select 2012–2017 Chevrolet Equinox and GMC Terrain vehicles.
The Electronic Brake Control Module is a critical component of the vehicle's ABS (Anti-Lock Braking System), Traction Control System and StabiliTrak/Electronic Stability Control system. It processes wheel-speed and vehicle-control information and communicates with the vehicle's braking system to help maintain braking control and vehicle stability.

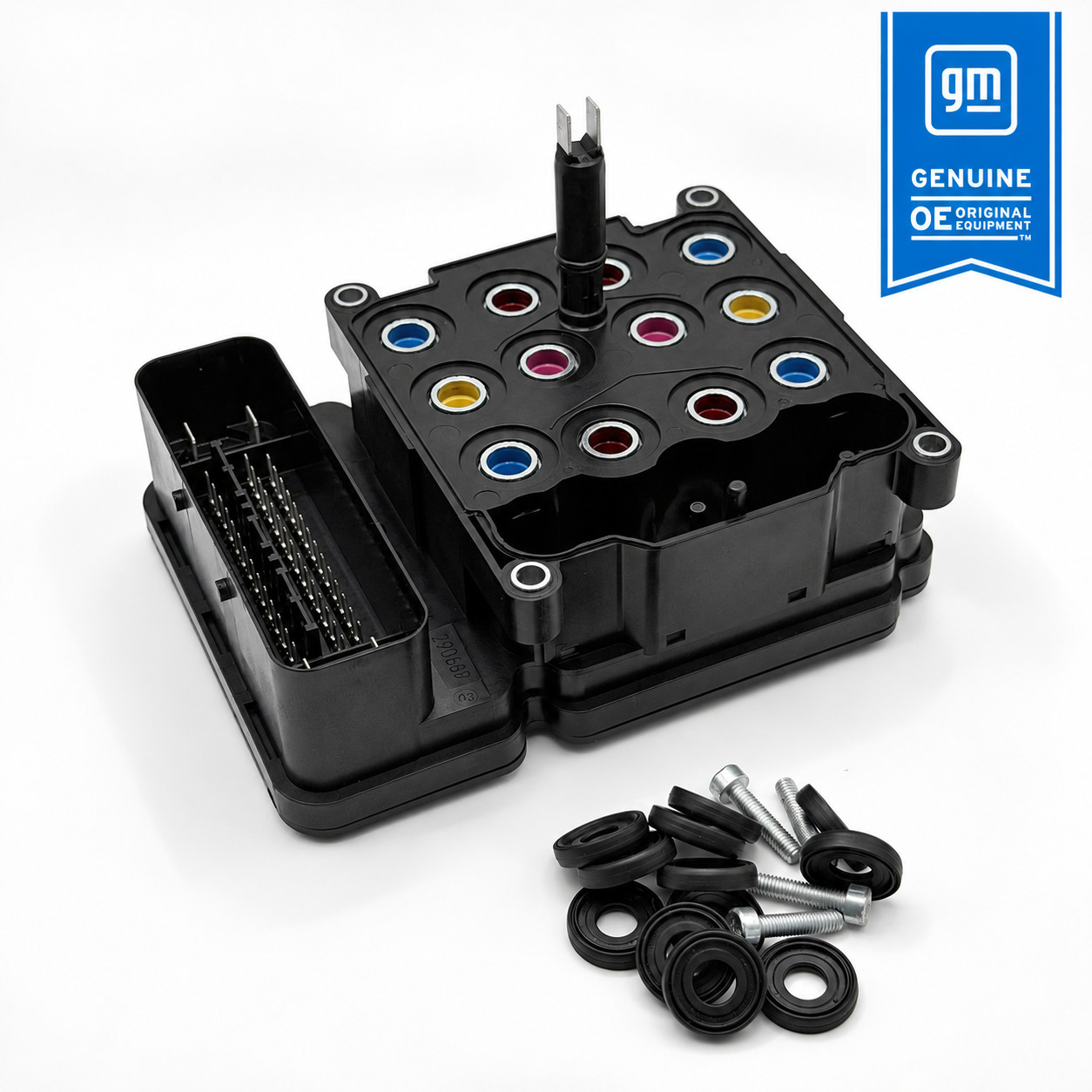

This listing is for the electronic control module shown in the photos. Please compare your original module and part number before ordering.
FITMENTChevrolet Equinox — 2012–2017
Compatible applications include:
- 2012 Chevrolet Equinox
- 2013 Chevrolet Equinox
- 2014 Chevrolet Equinox
- 2015 Chevrolet Equinox
- 2016 Chevrolet Equinox
- 2017 Chevrolet Equinox
Common trims include:
GMC Terrain — 2012–2017
Compatible applications include:
- 2012 GMC Terrain
- 2013 GMC Terrain
- 2014 GMC Terrain
- 2015 GMC Terrain
- 2016 GMC Terrain
- 2017 GMC Terrain
Common trims include:
Published GM fitment information lists the 22754644 module for Equinox and Terrain applications across these model years.
ENGINE APPLICATIONS
Depending on the specific year, trim and vehicle configuration, this module is associated with the following GM engine applications:
2.4L 4-Cylinder
- 2.4L L4
- 2.4L 4-Cylinder Gas
- 2.4L 4-Cylinder Flex Fuel
3.0L V6
- 3.0L V6 Gas
- 3.0L V6 Flex Fuel
3.6L V6
- 3.6L V6 Gas
- 3.6L V6 Flex Fuel
GM parts catalogs list 2.4L, 3.0L and 3.6L applications for the 2012–2017 Equinox/Terrain family, while individual year/trim combinations vary.
Important: Engine, trim and drivetrain alone should not be used as the final compatibility check. The original module part number and VIN should be verified before purchase.
PART NUMBER / CROSS-REFERENCE
Main GM OEM Part Number:
22754644
Related/interchange numbers commonly associated with this ABS/EBCM application include:
- 23156466
- 23131610
- 22911902
- 22911900
- 22754645
- 22804954
- 22890298
- 22892106
- 22911902
- 23130972
- 23231817
Not every number above is necessarily interchangeable for every vehicle configuration. Always compare the number on your original module and verify by VIN before ordering. Multiple automotive parts sources list 22754644 together with related GM numbers for the 2012–2017 Equinox/Terrain ABS system.
WHAT DOES THIS MODULE DO?
The Electronic Brake & Traction Control Module helps control and monitor:
- ABS — Anti-Lock Braking System
- Traction Control
- Electronic Stability Control / StabiliTrak
- Wheel-speed information
- Brake-system electronic control
- Individual wheel braking intervention when required
A defective EBCM can cause ABS, traction-control or stability-control warning indicators and may store ABS-related diagnostic trouble codes.
COMMON SYMPTOMS OF A FAILED ABS / EBCM MODULE
A faulty ABS control module may cause symptoms such as:
- ABS warning light
- Traction Control warning light
- StabiliTrak warning light
- Service ABS message
- Service Traction Control message
- Service StabiliTrak message
- ABS system communication faults
- Wheel-speed related ABS faults
- Intermittent ABS operation
- Loss of electronic traction/stability control functions
- Multiple ABS-related diagnostic trouble codes
- Scan tool unable to communicate with the ABS/EBCM module
These symptoms can also be caused by wheel-speed sensors, wiring, connectors, hydraulic components or other ABS system problems. Proper diagnosis is recommended before replacing the module.
WHY REPLACE THE EBCM?
The ABS/EBCM module is an electronic component that operates in a demanding automotive environment. Over time, electronic components can experience failures related to:
- Internal electronic component failure
- Electrical faults
- Corrosion or moisture exposure
- Connector problems
- Power or ground issues
- Communication failures
- Internal circuit-board faults
- Age and normal electronic component deterioration
Replacing the EBCM should be done only after the vehicle's ABS system has been properly diagnosed.
CONDITION
Factory Remanufactured / Professionally Restored Genuine GM OEM Module
The module has been professionally restored and tested for proper electronic operation.
The actual part supplied is the module shown in the listing photos.
Please inspect all photos carefully and compare the physical design, connectors and part number with your original unit.
PROGRAMMING / CODING REQUIRED
IMPORTANT — PROFESSIONAL PROGRAMMING MAY BE REQUIRED AFTER INSTALLATION.
GM documentation indicates that this module requires programming and/or special setup procedures for proper operation.
After installation, the replacement EBCM may need to be programmed/configured to the vehicle using appropriate GM-capable diagnostic/programming equipment.
Depending on the vehicle and module condition, additional procedures may include:
- Module programming
- Vehicle configuration/setup
- Clearing diagnostic trouble codes
- ABS system initialization
- Calibration procedures
Programming requirements can vary by vehicle configuration.
If you are not equipped to program an EBCM, we recommend having the installation completed by a qualified repair facility or GM dealer.
VIN VERIFICATIONVIN REQUIRED BEFORE SHIPPING
Please provide your 17-digit VIN after purchase.
We strongly recommend verifying the VIN and the part number on your original ABS/EBCM before installation.
Do not rely on year/make/model alone. GM used multiple ABS configurations, and the correct module must match the vehicle application.
IMPORTANT — MODULE ONLY
This listing is for the electronic ABS/EBCM control module shown in the photos.
It does not automatically mean that the complete ABS hydraulic pump/modulator assembly is included unless specifically shown and stated in the listing.
Please compare the listing photos with your original unit before ordering.
VEHICLE APPLICATION SUMMARYYearMakeModelEngine Applications2012ChevroletEquinox2.4L L4, 3.0L V62013ChevroletEquinox2.4L L4, 3.0L/3.6L V6 depending configuration2014ChevroletEquinox2.4L L4, 3.0L/3.6L V6 depending configuration2015ChevroletEquinox2.4L L4, 3.6L V62016ChevroletEquinox2.4L L4, 3.6L V62017ChevroletEquinox2.4L L4, 3.6L V62012GMCTerrain2.4L L4, 3.0L V62013GMCTerrain2.4L L4, 3.0L/3.6L V6 depending configuration2014GMCTerrain2.4L L4, 3.0L/3.6L V6 depending configuration2015GMCTerrain2.4L L4, 3.6L V62016GMCTerrain2.4L L4, 3.6L V62017GMCTerrain2.4L L4, 3.6L V6
Always verify exact application using VIN and the number on the original module.
ABS Control Module, ABS Module, EBCM, Electronic Brake Control Module, Electronic Brake and Traction Control Module, Anti Lock Brake Control Module, Anti-Lock Brake Module, Brake Control Module, Traction Control Module, StabiliTrak Module, GM ABS Module, Chevrolet ABS Module, GMC ABS Module, Equinox ABS Module, Terrain ABS Module, Chevrolet Equinox EBCM, GMC Terrain EBCM, 22754644, 23156466, 23131610.
FITMENT CONFIRMATION
If you are unsure whether this part fits your vehicle, send us your VIN and the part number from your original module before ordering. We will help verify compatibility.
Note: 22754644 is documented as a GM Electronic Brake and Traction Control Module for Equinox/Terrain, and GM catalog data specifically notes programming/special setup requirements.
