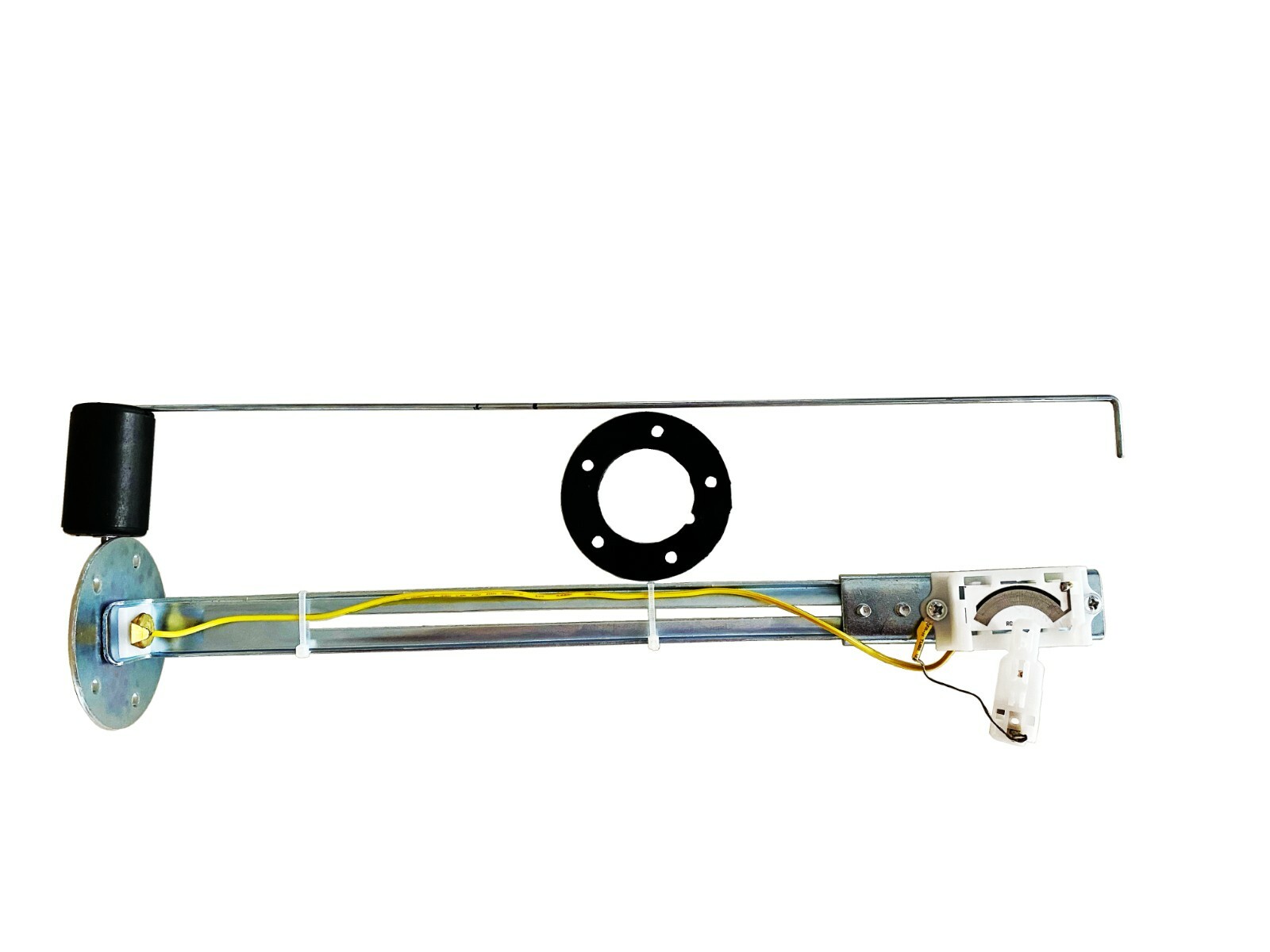

Fuel level sender sending unit, GM type, 0-90 ohms, 6”- 24” adjustable For Sale - New and Used

The item below is the same as this one:

New GM fuel sender.

6”- 24” height and swing arm adjustable.

0 ohms (E) to 90 ohms (F) resistance output. GM standard output.

VDO standard 5 hole mounting.

Mounting holes diameter (alone 5 holes): 2.2" (54mm).

Mounting plate diameter: 2.75" (70mm).

Note: mounting screws are not included. Use the 90 degree arm end to insert to resistor board hole as center pin.

Full installation manual included, or download here:

See our store for matching gauge:

See below for other ranges:

Need more advanced fuel sender? check our laser fuel sender:
